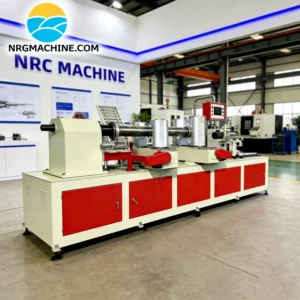

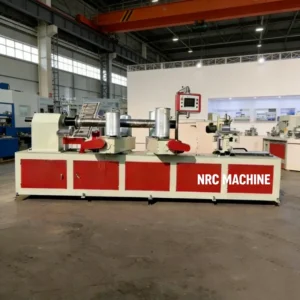

NRC200 Spiral Paper Tube Winding Machine
Introduction to the NRC200 spiral paper tube winding machine
Nowadays, the packaging and paper tube manufacturing industries are growing fast. As a result, there is a higher demand for efficient, precise, and automatic machines. One such machine that stands out is the NRC200 spiral paper tube winding machine. This machine is designed to produce high-quality paper tubes used in textiles, printing, and industrial roll storage. Moreover, it is also known as the NRC200 spiral paper tube making machine, showing its dual role in forming and finishing tubes.
Manufactured by NRC MACHINE (Qingdao New Richuan Precision Machine Co., Ltd), this equipment combines modern technology with reliable performance. Therefore, it has become a top choice for many factories around the world.
Main Components of the Machine
The NRC200 spiral paper tube making machine includes several key parts. First, the main machine body controls the entire winding process. Second, the bottom paper roll rack holds the base paper roll and feeds it smoothly. Third, the finished paper tube rack collects the completed tubes for easy removal.
In addition, the glue equipment ensures even adhesive application. This helps the layers stick well and form strong tubes. Also, the parents paper rolls rack supports large raw material rolls. As a result, the machine can run longer without frequent refills.
Because of this smart design, the machine works efficiently. Furthermore, all parts are easy to access for maintenance.
Key Technical Specifications
Let’s now look at the main technical details. These numbers help users understand what the machine can do.
- Inner diameter of paper tube: 30~200 mm
- Thickness of paper tube wall: 1~15 mm
- Max winding speed: 0~40 meters per minute
- Drive system: Servo motor driver
- Control system: CNC controller
Thanks to the CNC controller, the machine is very accurate. Also, the servo motor driver allows smooth speed control. As a result, the machine can handle different tube sizes and thicknesses with ease.
Moreover, the wide range of inner diameters makes it suitable for many uses. For example, small tubes for labels or large ones for carpets. In the same way, the wall thickness option supports both light and heavy-duty applications.
How the spiral paper tube winding machine Works
The working process is simple and smart. First, the paper is fed from the parent roll. Then, it passes through the gluing unit. After that, it is wrapped around a spiral mandrel. As the machine turns, the paper rolls up layer by layer.
Meanwhile, the CNC system checks the thickness and diameter. If any change is needed, it adjusts at once. In this way, every tube is uniform. Also, the servo motor helps keep the speed stable.
Next, once the tube reaches the set size, it is cut and moved to the finished rack. Thus, the process is fully automatic. As a result, labor costs go down and output goes up.
This spiral paper tube winding machine is not only fast but also very consistent. Therefore, it is ideal for mass production.
Why Choose the NRC200 Model?
There are many reasons why buyers pick the NRC200 model. First, it is made by a trusted company — NRC MACHINE. This firm has years of experience in precision machinery. Also, their machines are built to last.
Second, the machine saves time and materials. Since it uses CNC control, there is little waste. In addition, the glue system is precise. Therefore, no extra glue is used.
Third, it is easy to operate. Even new workers can learn quickly. The control panel is clear and simple. Furthermore, the machine gives error alerts when something is wrong.
Finally, it supports many paper types. Whether kraft paper, art paper, or cardboard, the spiral paper tube winding machine handles them all.
Applications in Different Industries
This machine is useful in many fields. For example:
- Textile industry: For winding yarn and fabric rolls
- Printing industry: To make cores for paper rolls
- Building materials: For tube packaging of insulation or films
- Cable and wire industry: As protective reels
Because it can make tubes from 30mm to 200mm, it fits various needs. Also, the strong tube walls (up to 15mm) support heavy loads.
Therefore, companies in these sectors find the NRC200 spiral paper tube winding machine very helpful.
Maintenance and Support
Good maintenance keeps any machine running longer. Luckily, this machine is designed for easy care. For instance, all key parts are easy to reach. Also, the CNC system logs errors and gives warnings.
Moreover, NRC MACHINE offers online support and training. As a result, users can fix small issues fast. In addition, spare parts are available worldwide.
Therefore, downtime is reduced. At the same time, regular cleaning and lubrication help prevent big problems.
Conclusion: A Smart Choice for Modern Factories
To sum up, the NRC200 spiral paper tube winding machine is a powerful, smart, and flexible solution. Not only does it make high-quality tubes, but it also saves time and labor. With its CNC controller and servo motor driver, it offers top precision.
Also, it is known as the NRC200 spiral paper tube making machine, showing its full function. From the main body to the glue unit, every part is well designed.
Nowadays, factories need machines that are fast, reliable, and easy to use. This machine meets all these needs. Therefore, it is a wise investment.
If you want to improve your production line, consider this spiral paper tube winding machine. Indeed, it can bring real value to your business.
Keywords: NRC200 spiral paper tube winding machine, spiral paper tube winding machine, NRC200 spiral paper tube making machine, CNC paper tube machine, servo motor winding machine
