1. Ikhtisar Produk

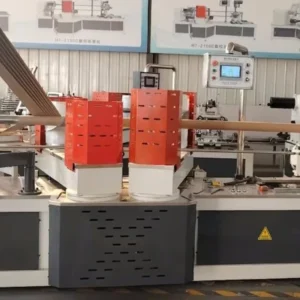

The NRC200 Automatic Spiral Paper Core Making Machine is a high-performance industrial equipment specially designed to process kraft cardboard paper into standard spiral paper cores. As a core model of NRC MACHINE’s paper processing machinery lineup, this spiral paper core making machine integrates servo drive, CNC control and PLC touch screen technology, realizing full-automatic, high-precision and high-efficiency production of paper tubes.
It is widely exported to more than 80 countries and favored by over 700 cooperative companies worldwide. This spiral paper core making machine is ideal for medium and large-scale paper core production lines used in packaging, textile, tape, household paper and other industries.
2. Main Structure & Standard Configuration
2.1 Complete Machine Composition

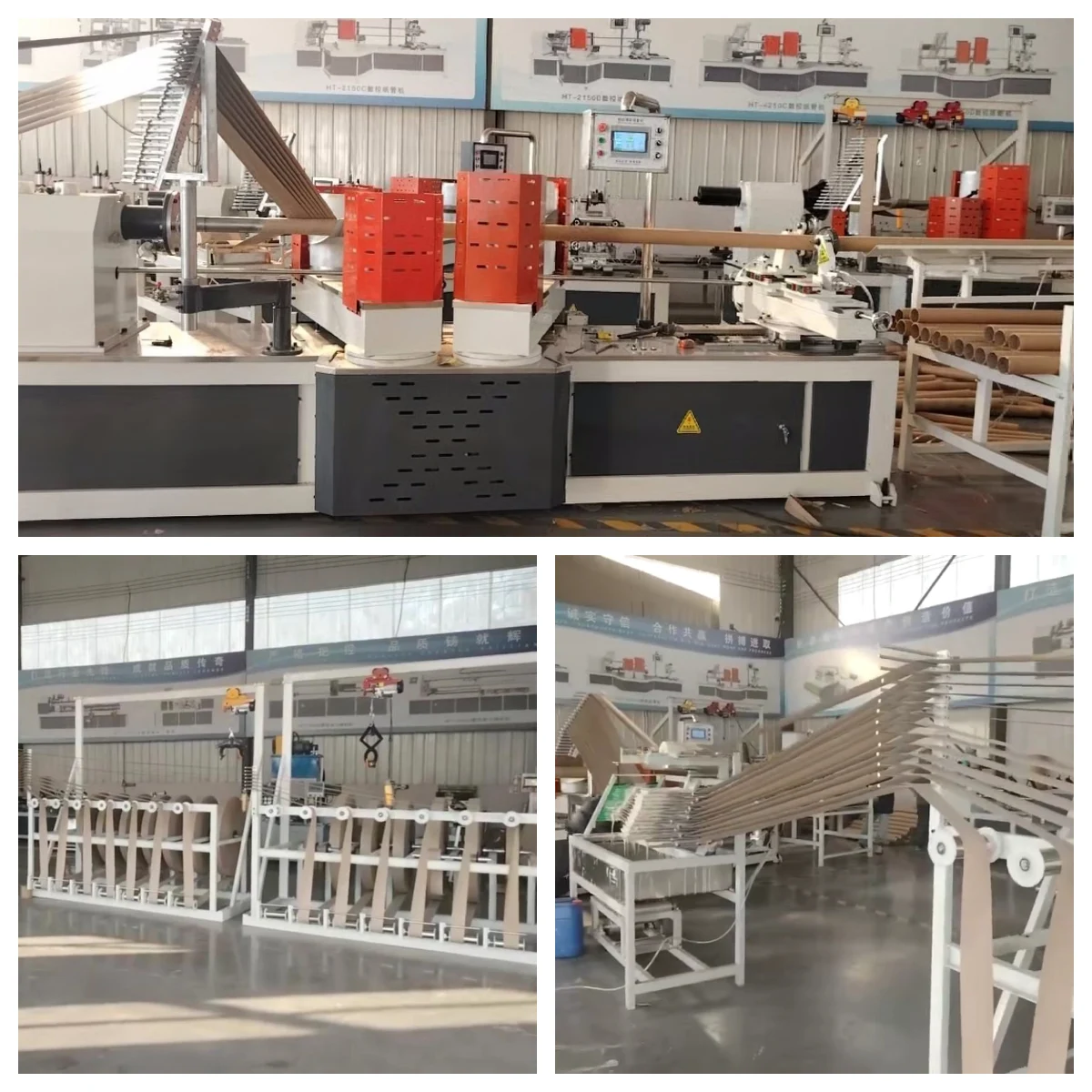

The NRC200 spiral mesin pembuat inti kertas adopts an integrated modular design. The complete set of equipment includes all necessary functional units to ensure one-stop production from raw paper feeding to finished core output:

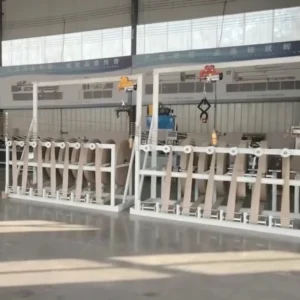

- Paper rolls rack
- Bottom paper layer rack
- Recycling glue equipment
- Badan mesin utama

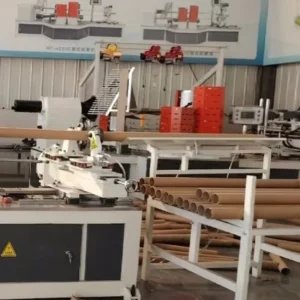

- Finished paper core rack
- Dust removal equipment
- Standard accessories: 1 set of mandrel
2.2 Core Driving & Control System
To guarantee stable operation and production precision, the machine is equipped with top-tier electrical and control components from well-known brands:
- Power & Drive: Servo motor + X-axis servo screw synchronization control
- Main Control: CNC controller + PLC system + color touch screen human-computer interface
- Electrical Components: Contactors from Chint Group, photoelectric switches and signal components from Omron, pneumatic parts from Hengyi, frequency converter from Shenzhen Yiqu, angle adjustment motor from Ka Shing
- Software Version: HT/4.0 program version
3. Detailed Technical Parameters
3.1 Production & Processing Parameters
This table lists all core processing specifications of the NRC200 spiral paper core making machine for production reference:
| Item Parameter | Spesifikasi Khusus |
| Processed Raw Material | Kertas karton kraft |
| Jumlah Lapisan Kertas | 3 – 21 layers |
| Diameter Dalam Inti Kertas | 25 mm (minimum) – 200 mm (maximum) |
| Ketebalan Dinding Tabung Kertas | 1 mm (minimum) – 15 mm (maximum) |
| Finished Paper Tube Length | 500 mm – 5000 mm |
| Kecepatan Produksi | 3 – 30 meters per minute |
| Kepala Berliku | Second machine head single belt |
| Metode Pemotongan | Multi-blade online arbitrary cutting |
| Glue Application Method | Single-sided / double-sided adhesive (adjustable) |
| Mode Panjang Tetap | Panjang tetap pulsa encoder |
| Core Mold Fixing Method | Pengencangan flensa |
| Sistem Pemotongan | Electric cutting with air cylinder |
| Operator yang Dibutuhkan | 1 – 2 people |
| Daya Masukan | 380V Three-Phase Four-Wire (Support customization) |
| Main Unit Power | 11KW |
| Wheel Hub Speed | 47 r/min |
3.2 Physical Size & Layout Parameters
The following data helps users complete factory layout, site planning and equipment handling:
| Dimension & Layout Item | Specific Data |
| Main Unit Dimensions (L × W × H) | 4500mm × 1800mm × 1750mm |
| Occupied Floor Area (L × W) | 18m × 8m |
| Wheel Height | 400mm |
| Minimum Wheel Track | 750mm |
| Maximum Wheelbase | 950mm |
| Total Machine Weight | 3200kg |
3.3 Automatic Functional Configuration
The NRC200 spiral paper core making machine is built with multiple automatic functions to reduce manual work and improve automation level:
- Automatic pipe drop rack (standard equipped)
- Pneumatic diaphragm pump for automatic glue supply
- Automatic paper tape lubrication system
- Automatic belt tension adjustment
- Automatic main unit swivel angle
- Mechanical tension adjustment for paper feeding
4. Key Product Advantages
4.1 High Production Precision
Supported by CNC, PLC and servo motor control system, the machine realizes precise control over paper core diameter, wall thickness, length and winding density. The produced spiral paper cores feature uniform size, smooth surface and stable structure, fully meeting the strict size requirements of downstream industrial production.
4.2 Strong Operational Stability
All electrical, pneumatic and sensing components adopt internationally renowned brands, effectively reducing equipment failure rate. The single-belt winding structure and multi-blade online cutting design ensure continuous and stable long-time operation, suitable for 24-hour industrial production.
4.3 Wide Application Flexibility
With adjustable paper layers (3-21 layers), diverse size range and switchable single/double-sided gluing modes, the machine can produce spiral paper cores of various specifications. It can match the production demands of paper tubes for toilet rolls, adhesive tapes, DTY/POY chemical fiber, paper edge protectors and other products.
4.4 Energy-Saving & Environmental Protection
Equipped with professional recycling glue equipment and dust removal equipment, the machine reduces glue waste and production dust pollution. It complies with environmental protection standards of various countries, and the raw material kraft cardboard paper is recyclable, conforming to the trend of green manufacturing.
4.5 Labor-Saving & Easy Operation
The color touch screen human-computer interface is simple to operate. Only 1 to 2 workers are needed to complete the entire production process. The automatic feeding, gluing, winding, cutting and discharging functions greatly lower labor costs and operation difficulty.
5. Application Scenarios & Matched Industries
The spiral paper cores produced by NRC200 automatic spiral paper core making machine are widely used in multiple industries:
- Household Paper Industry: Paper cores for toilet tissue rolls, kitchen towels and other household paper products
- Adhesive Tape Industry: Paper tubes for Bopp adhesive tape, scotch tape and other adhesive products
- Textile Industry: DTY and POY yarn paper tubes for chemical fiber and textile winding
- Packaging Industry: Spiral paper tubes, cardboard tubes and paper edge protectors for commodity packaging
- Printing & Office Supplies: Auxiliary paper cores for A4 paper, notebooks and other office paper products
6. Manufacturer Strength & After-Sales Service
6.1 Enterprise Introduction
NRC MACHINE (Qingdao New Richuan Precision Machine Co., Ltd) is located in Fangzi District, Weifang City, Shandong Province, 120 km away from Qingdao Airport, enjoying superior logistics and transportation conditions. Founded in 2005, the company has focused on the R&D and production of paper tube machines and paper processing machinery for more than 18 years. Its products have obtained CE, ISO and SGS international certifications, and exported to over 80 countries around the world.
6.2 Comprehensive Services
- Professional pre-sales consulting: Provide production plan matching and equipment selection guidance according to customer’s production demand
- Complete after-sales service: Overseas installation guidance, equipment commissioning, operator training and regular maintenance support
- Spare parts supply: Long-term supply of original spare parts to ensure continuous machine operation
- Fast reply: Inquire via email or WhatsApp, and the professional sales team will reply within 6 hours
7. FAQs
Q1: What raw materials are suitable for this NRC200 spiral paper core making machine?
A1: This machine is specially used to process kertas karton kraft as the main raw material to produce spiral paper cores. Conventional industrial kraft paper with standard grammage can adapt to the equipment, and it supports different paper layers from 3 to 21 layers for production.
Q2: What is the size range of the paper cores that the machine can produce?
A2: The inner diameter of finished paper cores ranges from 25 mm to 200 mm; the wall thickness is adjustable from 1 mm to 15 mm; the length of finished paper tubes is from 500 mm to 5000 mm. It supports customized production of various conventional and special-sized paper cores.
Q3: How many workers are needed to operate the NRC200 machine? Is the operation difficult?
A3: Only 1 to 2 operators are required for normal production. The machine is equipped with a PLC color touch screen, which has a visualized and simple operation interface. We will provide professional operation training after equipment delivery, and ordinary workers can master the operation quickly.
Q4: What is the production speed of this spiral paper core making machine?
A4: The production speed is adjustable between 3 meters per minute and 30 meters per minute. Users can adjust the operating speed according to raw paper material, paper core specifications and production volume to balance production efficiency and product quality.
Q5: Does the equipment support double-sided gluing? What are the gluing modes?
A5: Yes. The NRC200 machine supports two gluing modes: single-sided adhesive and double-sided adhesive, which can be switched freely according to the hardness and usage requirements of the finished spiral paper cores.
Q6: What is the power configuration of the equipment? Can it adapt to different regional power supplies?
A6: The standard input power is 380V three-phase four-wire. We support power supply customization according to the voltage standards of different countries and regions to ensure normal use in various regions. The main unit power is 11KW.
Q7: Does the machine have environmental protection configurations such as dust removal and glue recovery?
A7: Yes. The standard configuration includes recycling glue equipment and dust removal equipment, which can effectively reduce glue waste and production dust, meet global environmental protection requirements, and create a clean production environment.
8. Contact & Purchase Information
If you want to know more details about NRC200 Automatic Spiral Paper Core Making Machine, obtain quotation or place an order, please contact us through the following methods:
- WhatsApp / WeChat: +86 15254213289
- Alamat Email Resmi: james@nrcmachine.com
- Situs web resmi: https://nrcmachine.com
We provide one-stop services including equipment selection, scheme design, production, transportation, installation and after-sales maintenance for global customers.
