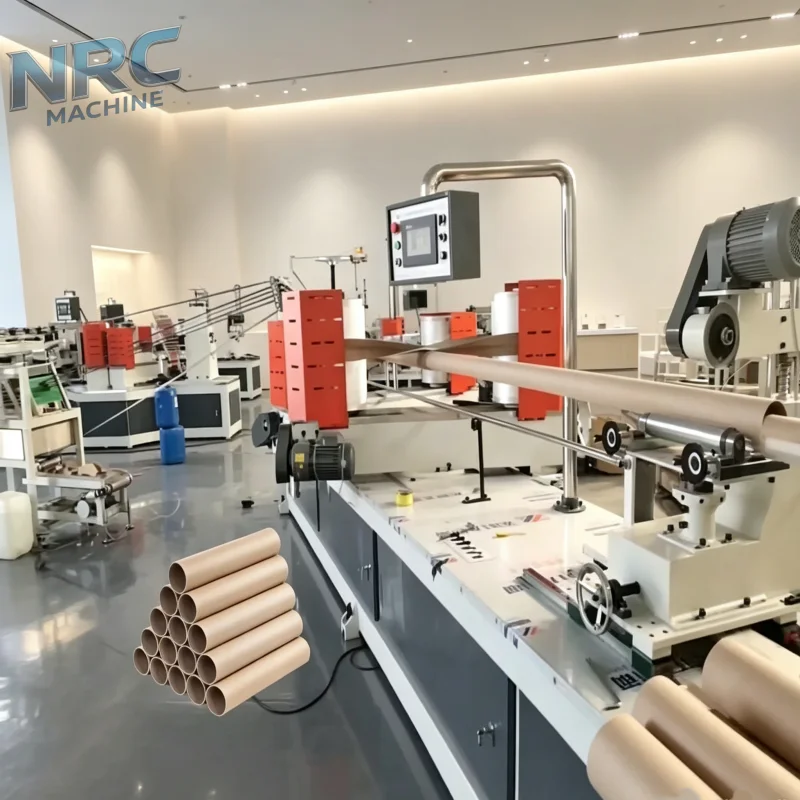

NRC200 Automatic Production Machine For Cardboard Paper Tubes | Servo Four-Head Spiral Paper Tube Production Machine

1.Introduction About NRC200 Automatic Spiral Cardboard Paper Tube Production Machine – Full-Auto Servo Paper Tube Production Machine

Il NRC200 Automatic Production Machine For Cardboard Paper Tubes is a professional industrial paper tube production machine engineered to convert raw kraft cardboard paper rolls into finished spiral cardboard paper tubes in one continuous automated workflow. Also recognized as an automatic spiral paper tube production machine, this four-head servo spiral paper tube machine integrates gluing, spiral winding, and multi-blade fixed-length cutting in a single pass, with all production parameters adjustable directly on the PLC touch screen.

Manufactured by NRC MACHINE (Qingdao New Richuan Precision Machine Co., Ltd), the NRC200D adopts a minimalist, compact, and ultra-stable mechanical design. It targets factories producing textile paper cores, composite packaging cans, and small industrial paper tubes, delivering fully automated one-step forming without secondary manual cutting.

2.Product Definition & Industrial Application Scenarios

2.1 Core Product Aliases & Working Logic

This paper tube production machine carries multiple industry standard names for global search matching:

1. NRC200 Automatic Production Machine For Cardboard Paper Tubes
2. Automatic spiral paper tube production machine
3. Four-head servo spiral paper tube machine
4. CNC single blade spiral paper core forming machine

Raw material input: kraft cardboard paper rolls
Finished output: uniform spiral cardboard paper tubes
Integrated workflow: automatic paper feeding → single/double-sided glue coating → spiral multi-layer winding → servo synchronous single-blade online cutting

2.2 Main Industrial Production Uses

The NRC200 spiral tube machine is widely deployed across packaging and textile manufacturing sectors:

• DTY / POY chemical fiber textile paper cores
• Composite cylindrical packaging cans for food, adhesive, and film packaging
• Small industrial winding paper cores for tape, stretch film, and label rolls
• General spiral paper edge protectors and logistics winding cores

2.3 Nine Core Technical Advantages of NRC200 Paper Tube Production Machine

Built for long-duration mass production, the NRC200 paper tube production machine combines heavy mechanical structure and full digital servo control to solve common pain points of low-speed, unstable small paper tube equipment:

1. Heavy thick steel plate main frame processed by CNC cutting and full seamless welding; rigid structure resists deformation and minimizes running vibration.
2. Hardened tooth full oil bath closed chain main transmission, featuring low noise, low heat buildup, high rotational speed, and powerful output torque.
3. Main drive motor equipped with vector high-torque frequency converter for smooth stepless speed regulation.
4. CNC synchronous flying shear cutting system; cutting platform driven by precision ball screw paired with high-response servo motor.
5. Encoder pulse fixed-length control with feedforward compensation technology, maintaining consistent cutting length even under variable winding speeds.
6. Delta PLC numerical control core system improves overall forming precision and factory throughput.
7. New-generation operation panel matched with large-size color touch screen HMI for intuitive parameter adjustment.
8. Integrated linkage assembly combining integral paper rack, automatic glue coating station, and paper guiding mechanism, lifting overall production efficiency by 60%.
9. Modular electrical layout design simplifies daily operation, routine inspection, and component maintenance & replacement.

3.Complete Technical Specification Tables

3.1 Basic Production & Dimensional Parameters

3.2 Full Control System Brand Configuration Table

3.3 Standard Built-In Auxiliary Equipment

3.4 Free Standard Delivered Spare Parts

4.Manufacturer Profile – NRC MACHINE (Qingdao New Richuan Precision Machine Co., Ltd)

4.1 Enterprise Experience & Qualification

Founded in 2005, NRC MACHINE is a professional precision paper processing machinery OEM factory with over 18 years of paper tube machine R&D and manufacturing experience. We operate two production bases:

1. Main Factory: East of Zhangjialiugou Village, Economic Development Zone, Fangzi District, Weifang City, Shandong Province (120 km from Qingdao Airport, convenient port logistics for global export)
2. Hebei Branch Factory: Zhangzhuang village, Xiongxian, Baoding City, Hebei Province, dedicated exclusively to paper tube production machine manufacturing

Our equipment portfolio covers spiral paper tube machines, toilet tissue production lines, facial tissue machines, A4 paper slitting & rewinding machines, paper edge protector machines, and notebook forming equipment. All machines pass CE certification, compliant with global industrial safety standards. To date, our machinery has been exported to over 80 countries, maintaining stable long-term cooperation with more than 700 paper product manufacturers worldwide.

4.2 Global After-Sales Service Support

• Multilingual professional sales team providing one-on-one technical scheme design within 6 hours of inquiry submission
• Overseas on-site installation, commissioning, and operator training service
• Lifelong remote online technical troubleshooting via WhatsApp/WeChat video call
• Stable long-term supply of original spare parts at factory direct price

5.Frequently Asked Questions (FAQs) About NRC200 Paper Tube Production Machine

5.1 Raw Material & Production Output FAQs

1. Q: What raw material can this paper tube production machine process?
   A: It is specially designed for kraft cardboard paper rolls. It can produce spiral cardboard paper tubes ranging from 30mm to 200mm outer diameter and 1mm to 15mm wall thickness for textile, packaging, and film industries.
2. Q: What finished tube products can the NRC200 produce?
   A: DTY/POY textile paper cores, composite packaging cans, tape winding cores, small industrial paper tubes, and spiral paper edge protectors.

5.2 Operation & Technical Parameter FAQs

3. Q: How many workers are needed to operate the NRC200 automatic spiral paper tube production machine?
   A: Only 1 to 2 operators are required. The integrated automatic feeding, gluing, and cutting system drastically reduces manual labor compared with semi-automatic small tube machines.
4. Q: Can I freely adjust tube diameter, wall thickness, cutting length, and running speed?
   A: Yes. All dimensional and speed parameters can be edited directly on the PLC color touch screen. The built-in pulse fixed-length control with feedforward compensation ensures identical cutting length under any running speed.
5. Q: What is the core advantage of the servo synchronous multi-blade cutting system?
   A: The servo flying shear tracks real-time winding speed through precision ball screw drive to eliminate length deviation. Online multi-blade cutting removes secondary cutting procedures and raises overall production efficiency by 60%.

5.3 Power, Certification & Customization FAQs

6. Q: Can the machine power voltage be customized for overseas markets?
   A: Standard input power is 380V three-phase four-wire. We support customized voltage configuration for clients from Southeast Asia, Europe, Africa, and the Americas upon order confirmation.
7. Q: What international certifications does the NRC200 carry?
   A: The complete machine holds CE, ISO, and SGS certificates, satisfying EU safety standards and global customs import inspection requirements for industrial machinery.

5.4 Factory Visit & Inquiry Contact FAQs

8. Q: Can I visit your factory to watch the machine running test?
   A: Yes. Clients can book factory visits via WhatsApp or email. We have two production workshops (Shandong main factory and Hebei paper tube machine branch factory) with full running equipment for on-site demonstration.
9. Q: How long will I receive a quotation and technical drawing after sending inquiry?
   A: Our professional sales engineer will reply within 6 working hours. You can send your demand via WhatsApp/WeChat or official business email.

6.Manufacturer Official Contact Information

6.1 Direct Contact Channels

Manufacturer Full Name: Qingdao New Richuan Precision Machine Co., Ltd (Abbreviation: NRC MACHINE)
WhatsApp / WeChat Hotline: +86 15254213289
E-mail aziendale: james@nrcmachine.com
Sito web ufficiale: https://nrcmachine.com

6.2 Two Factory Addresses

1. Shandong Headquarters Factory: East of Zhangjialiugou Village, Economic Development Zone, Fangzi District, Weifang City, Shandong Province, China
2. Hebei Professional Paper Tube Machine Branch Factory: Zhangzhuang village, Xiongxian, Baoding City, Hebei Province, China

7.Final Summary – Why Select NRC200 Spiral Paper Tube Production Machine

As a mature paper tube production machine developed by NRC MACHINE with 18 years of dedicated paper machinery manufacturing experience, the NRC200 four-head servo automatic spiral paper tube machine balances stable heavy-duty mechanical performance, full digital PLC servo control, and low daily maintenance cost. Its integrated one-pass forming workflow, wide tube size range (30–200mm diameter), and adjustable winding speed of 3–30m/min make it the ideal core production equipment for medium and large factories specializing in textile paper cores, composite packaging cans, and small industrial spiral cardboard paper tubes.
