Piccola linea di produzione di carta igienica per piccole imprese in Russia | Fully Automatic
Presentazione del prodotto
Il Linea di produzione di carta igienica, chiamato anche macchina per la produzione di carta igienica, is a professional integrated processing device specially designed to convert bulk parent tissue paper rolls into standard tissue paper toilet rolls for daily household use and supermarket retail. Tailored for the Russian market, this is a fully automatic compact toilet paper processing production line with stable performance and low operating threshold.
Questo Linea di produzione di carta igienica is highly suitable for local small and medium-sized business owners and startup entrepreneurs across Russia and global markets. Manufactured by Qingdao New Richuan Precision Machine Co.,Ltd (NRC MACHINE), the equipment integrates complete automatic functions including automatic paper tube loading, wool-to-steel embossing, rewinding, precision cutting and intelligent packaging. The operation process is extremely simple: operators only need to complete auxiliary plastic bag sleeving, and the machine will automatically load multiple finished toilet rolls into bags and finish full sealing.

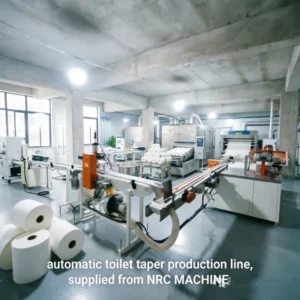

As a cost-effective mini Linea di produzione di carta igienica for small businesses, the complete production system consists of three core independent devices connected by standardized conveyor belts, realizing seamless automated production. The configuration includes a full-embossing toilet paper rewinding machine, high-speed automatic band saw toilet paper slitter machine, and multi-roll automatic packing machine, forming a one-stop closed-loop tissue processing workflow.
Overall Production Line Parameters
This small-scale automatic toilet paper production line features compact layout, low space occupation and minimal labor demand, perfectly matching the production needs of small tissue processing factories in Russia. The overall operational specifications are listed in the table below:
| Production Line Item | Specifiche dettagliate |
| Tipo di linea di produzione | Small Fully Automatic Toilet Paper Production Line for Small Business |
| Applicable Market | Russia & Global Small-Scale Tissue Manufacturing |
| Minimum Factory Space Required | 200 metri quadrati |
| Required Operating Labor | 1-2 Workers (Simple Auxiliary Operation) |
| Tipo di prodotto finito | Core Toilet Rolls / Coreless Toilet Rolls (Dual Mode) |
| Max Raw Jumbo Roll Width | 2000 mm |
| Max Raw Jumbo Roll Diameter | ≤1300mm |
| Daily Output (8 Working Hours) | Approx 20,000 Rolls (100g per standard roll) |
| Composizione dell'attrezzatura di base | Embossing Rewinder, Band Saw Slitter Cutter, Multi-Roll Auto Packer |
| Connection Mode | Automatic Conveyor Belt Linkage |
Core Equipment Detailed Specifications

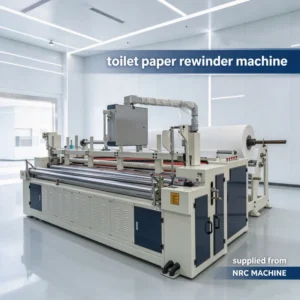

3.1 NRC1880 - Macchina avvolgitrice per carta igienica da 2000 mm
This core host device undertakes the rewinding and embossing process, converting large jumbo tissue rolls into long semi-finished toilet rolls. Equipped with professional wool-to-steel full embossing technology, it creates clear, uniform and durable embossing patterns on tissue paper, improving product texture and market competitiveness.
| Parametro | Dati tecnici |
| Modello | NRC1880 (2000mm Width) |
| Carta grezza applicabile | 2-3 veli, 14~23g/㎡ carta velina |
| Prodotto finito | Core / Coreless toilet paper semi-finished rolls |
| Larghezza massima della carta grezza | 2000 mm |
| Diametro massimo della carta grezza | 1300 mm |
| Diametro esterno del rotolo finito | Φ60~120 mm |
| Diametro del nucleo della carta finita | Φ35mm-Φ50mm |
| Specifiche tecniche delle anime in carta grezza | 3 pollici (76,2 mm) |
| Sistema di perforazione | Spiral perforating knife + chain wheel precise positioning |
| Velocità di lavoro | 200 m/min |
| Potenza totale | 12kw |
| Sistema di controllo | PLC intelligent control + LCD touch screen operation |
| Modalità di alimentazione della carta | 3 unwinding stands, pneumatic synchronous control |
| Pressione d'esercizio dell'aria | 0,5 Mps |
| Alimentazione | 380V, 50hz Industrial Power |

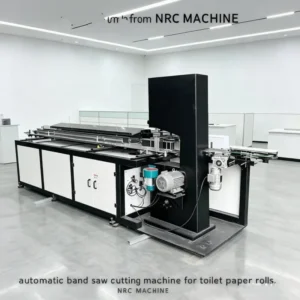

3.2 Automatic Band Saw Cutting Machine (Toilet Paper Slitter Machine)
Serving as the precision cutting unit of the production line, this toilet paper slitter machine cuts long semi-finished toilet rolls into standard finished roll sizes. It adopts double servo drive and automatic sharpening system, featuring high cutting precision, stable operation and low failure rate, meeting mass production standards for small businesses.
| Parametro | Dati tecnici |
| Modello | Automatic Band Saw Toilet Paper Slitter Machine |
| Matching Power | 3KW |
| Materiali applicabili | Embossed/non-embossed toilet paper & facial tissue rolls |
| Cutting Size Range | Length: 50-230mm; Max Diameter: 120mm |
| Precisione di taglio | ±0,5 mm |
| Sistema di azionamento e controllo | PLC + Double servo motor drive + touch screen operation |
| Sistema di affilatura | Fully automatic adjustable sharpening device |
| Diametro della lama | ￠610 mm |
| Modalità di regolazione | Manual hand wheel for vertical fine adjustment |
| Pressione d'esercizio dell'aria | 0,5Mpa |
| Dust Removal Configuration | Fixed felts dust box for clean production |
| Efficienza di taglio | 100-130 tagli/minuto |
| Imballaggio per l'esportazione | Imballaggio standard in scatola di legno |
3.3 Automatic Multi-Roll Packing Machine
The final packaging module of the small toilet paper production line, responsible for automatic bagging and sealing of finished toilet rolls. It supports flexible packaging specifications, adapting to supermarket retail and wholesale packaging demands for small-scale tissue production in Russia.
| Parametro | Dati tecnici |
| Modello | Automatic Multi-Roll Packing Machine |
| Matching Power | 2 kW |
| Standard Packing Specification | 6-12 rolls per plastic bag |
| Intervallo delle dimensioni di imballaggio | L 350-600 mm * L 120-230 mm * A 60-150 mm |
| Tipo di rullo applicabile | Flat rolls / Round rolls |
| Sistema di controllo | PLC intelligent control + servo drive + touch screen |
| Modalità di sigillatura | Sigillatura dall'alto verso il basso / Sigillatura da sinistra a destra (opzionale) |
| Pressione d'esercizio dell'aria | 0,5Mpa |
| Alimentazione | 220 V CA, 50 Hz |
Punto di forza del produttore
This small toilet paper production line is independently developed and manufactured by Qingdao New Richuan Precision Machine Co., Ltd (NRC MACHINE), a professional precision tissue processing machinery manufacturer with 18+ years of export experience. Founded in 2005, the company focuses on paper processing equipment R&D, production and global sales, with products exported to more than 80 countries and regions worldwide.
All equipment has passed CE, ISO and SGS international authoritative certifications, complying with Russian industrial production standards and global quality norms. The brand has served over 700 cooperative enterprises, providing targeted customized solutions and one-stop after-sales services for small business clients in Russia, including equipment installation, technical training, remote guidance and long-term maintenance support, ensuring stable and efficient equipment operation for end users.
Domande frequenti (FAQ)
5.1 Why choose this small toilet paper production line for Russian small businesses?
This compact production line is customized for the Russian market’s small-scale tissue manufacturing demands. It requires only 200㎡ factory space and 1-2 workers, features low investment and operating costs, and supports flexible production of core and coreless rolls. The fully automatic design reduces manual errors, making it the most cost-effective startup solution for local small businesses and new entrepreneurs.
5.2 What finished products can this toilet paper production line make?
The equipment supports dual production modes, enabling free switching between core toilet rolls and coreless toilet rolls. The finished roll diameter is adjustable from 60mm to 120mm, meeting diverse market demands for household daily use, supermarket retail and small wholesale in Russia.
5.3 Is the machine easy to operate for novice workers?
Absolutely. The entire production line adopts PLC intelligent control and touch screen operation with simplified operating procedures. The core production processes including rewinding, cutting and packaging are fully automatic. Workers only need to complete simple auxiliary work such as raw material feeding and bag sleeving, and professional English operation manuals and video training are provided for Russian clients.
5.4 What is the daily production capacity and output efficiency?
Under standard 8-hour working conditions with 100g per standard roll, the production line can stably produce about 20,000 toilet rolls daily. The rewinding host runs at 200m/min, and the cutting speed reaches 100-130 cuts per minute, fully meeting the daily mass production needs of small and medium-sized tissue fabbriche.
5.5 Does the manufacturer provide Russia-targeted after-sales service?
Yes. NRC MACHINE provides exclusive targeted services for Russian clients, including pre-sales scheme customization, English technical documents, remote online installation guidance, free technical training, and long-term spare parts supply. We offer 24/7 online technical support to solve equipment operation problems efficiently.
5.6 Can the packaging specifications be customized?
Yes. The multi-roll packing machine supports customizable packaging sizes and roll quantities. Clients can adjust the number of rolls per bag (6-12 rolls) and sealing modes according to local supermarket sales habits and market packaging standards in Russia, with strong product flexibility.
