종이 튜브 가공 기계 – Precision, Efficiency, and Automation Redefined
Introduction: Elevating the Future of Paper Tube Manufacturing
In the rapidly evolving packaging and industrial material sectors, the demand for high-quality, consistent, and cost-effective paper tubes has never been greater. From textile yarns and adhesive tapes to protective sleeves and decorative rolls, paper tubes serve as essential components across diverse industries. To meet this growing need, NRC 기계(칭다오 신리천 정밀 기계 유한공사) proudly introduces its state-of-the-art 종이 튜브 가공 기계 — a fully automatic, CNC-controlled solution engineered for precision, reliability, and unmatched productivity.
Designed with innovation at its core, this advanced machine redefines the standards of paper tube production, combining robust construction with intelligent automation to deliver seamless performance for a wide range of applications.
Key Specifications: Engineered for Versatility and Precision

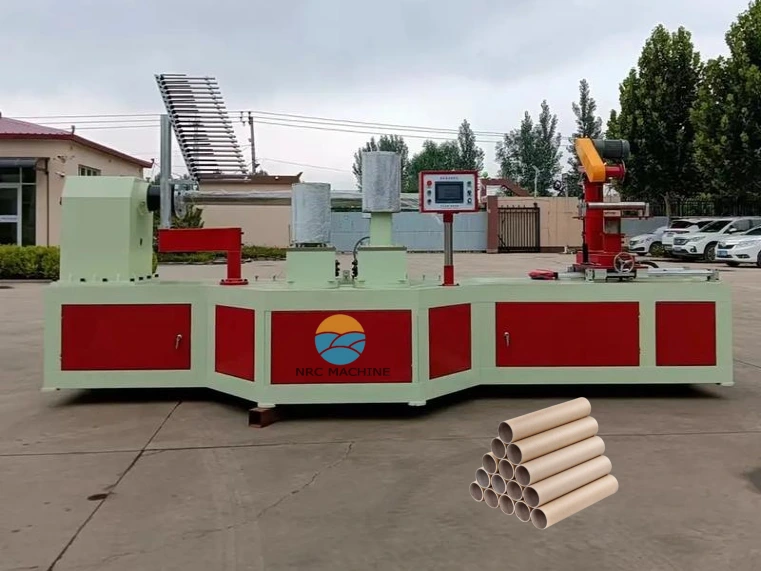

The NRC Paper Tube Processing Machine is built to handle a broad spectrum of production requirements with exceptional flexibility and accuracy. Key technical parameters include:
| Technical Parameters | 제어 시스템 | ||
| Number of winding paper layers | 3-21 layers | PLC Controller | Delta Brand |
| 최대 코일 직경 | 200mm | HMI | Color touch screen |
| 최소 코일 직경 | 30mm | Program Version | HT/4.0 |
| 최대 코일 두께 | 15 mm | Frequency Converter | Shenzhen EasyDrive |
| 최소 코일 두께 | 1mm | Actuators (contactors, etc.) | China Chint Products |
| Core mold fixing method | 플랜지 조임 | Signal components (photoelectric switches, etc.) | Omron Products |
| Winding head | Two head single belt | Pneumatic Components | Hengyi Products |
| 절단 방법 | Single blade cutting | Angle adjustment motor | Cazenove |
| 접착 방법 | Single/double-sided gluing | Synchronous control | X-axis servo screw |
| 고정 길이 방법 | 인코더 펄스 고정 길이 | Synchronous tracking pipe cutting system | Servo synchronous tracking multi-knife cutting |
| 운영자 수 | 1-2인 | ||
| Hose reel speed | 3-30 m/min | Equipped with equipment | |
| Input Power | 380V three-phase four-wire customization | Automatic pipe rack | have |
| Standard sizes | Belt diagonal | electric | |
| Host size: length × width × height | 4500mm × 1800mm × 1750mm | Belt tension adjustment | Automatic adjustment |
| Floor space: length × width | 18m × 8m | Mainframe swing angle | 자동 |
| Hub height | 400mm | Automatic glue supply | Air-operated diaphragm pumps |
| Minimum wheelbase | 750mm | Automatic lubrication of paper tape | 자동 |
| Maximum wheelbase | 950mm | Tension adjustment | Mechanical adjustment |
| Total mass | 3200kg | Paper holder type | Overall paper holder |
| monitor rate | 15 KW | Included accessories | |
| Wheel speed | 47r/min | Tube winding mandrel | 1 set. |
Core Features: Where Innovation Meets Performance
3.1 Fully Automated Workflow
The machine integrates unwinding, gluing, rolling, shaping, cutting, and stacking into a single continuous process. Once parameters are set via the CNC interface, the system operates autonomously, significantly increasing production efficiency and consistency.
3.2 Intelligent CNC Control System
Equipped with a user-friendly touchscreen interface, the CNC controller allows operators to store multiple production recipes, adjust diameter and thickness settings, monitor real-time performance, and receive alerts for maintenance or anomalies.
3.3 High-Precision Servo-Driven Mechanism
The use of servo motors ensures exact control over speed, tension, and positioning. This results in uniform tube winding, clean cuts, and minimal material waste — critical for high-quality end products.
3.4 Durable and Stable Structural Design
Constructed with high-grade steel and precision-machined components, the machine is built to withstand continuous operation in industrial environments. Vibration-damping features enhance stability and prolong service life.
3.5 Flexible Material Compatibility
Capable of processing various paper types, including kraft paper, coated paper, and laminated materials, the machine adapts easily to different raw material specifications without compromising performance.
3.6 Safety and Maintenance Optimization
Designed with operator safety in mind, the machine includes emergency stops, protective enclosures, and safety interlocks. Modular components simplify maintenance and reduce downtime during changeovers or servicing.
산업 전반의 애플리케이션
The versatility of the NRC Paper Tube Processing Machine makes it an indispensable asset in numerous sectors:
- 포장 산업: Production of cores for BOPP tape, adhesive tape, and protective film rolls.
- Textile Sector: Yarn carrier tubes and winding cores for spools and cones.
- Printing and Labeling: High-precision cores for label stock and printing rolls.
- Construction and Laminates: Sturdy paper tubes for transporting and storing composite materials.
- Consumer Goods: Tubes for gift wrap, carpets, and household products.
With its wide processing range and consistent output, the machine supports both mass production and small-batch customized orders.
선택해야 하는 이유 NRC 기계?
As a trusted manufacturer in the precision machinery industry, 칭다오 신리촨 정밀 기계 유한 공사. (NRC MACHINE) is committed to excellence in engineering and customer satisfaction. Our core advantages include:
- In-House R&D and Innovation: Continuous investment in technology ensures our machines stay ahead of industry trends.
- Strict Quality Control: Every machine undergoes rigorous testing before delivery to guarantee reliability and performance.
- 글로벌 지원 네트워크: Comprehensive installation guidance, training, and after-sales service available worldwide.
- 사용자 지정 옵션: Machines can be tailored to specific production needs, including integration with downstream equipment.
We don’t just sell machines — we deliver complete solutions that empower your production line.
Conclusion: Your Partner in Smart Manufacturing
The NRC Paper Tube Processing Machine represents the perfect synergy of automation, precision, and scalability. Whether you’re upgrading an existing line or establishing a new production facility, this machine offers a future-proof solution that enhances quality, reduces costs, and boosts output.
With its wide processing range, intelligent controls, and full automation, it’s more than just a machine — it’s a competitive advantage.
선택 NRC 기계. Choose innovation. Choose reliability. Choose the future of paper tube production.
Contact Us Today
For more information, quotations, or technical consultations, please visit our website or contact our sales team directly. Let us help you transform your production capabilities with the power of precision engineering.
