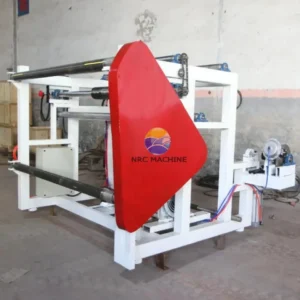

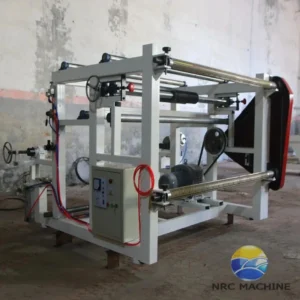

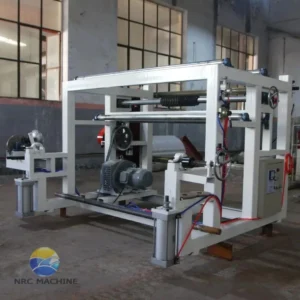

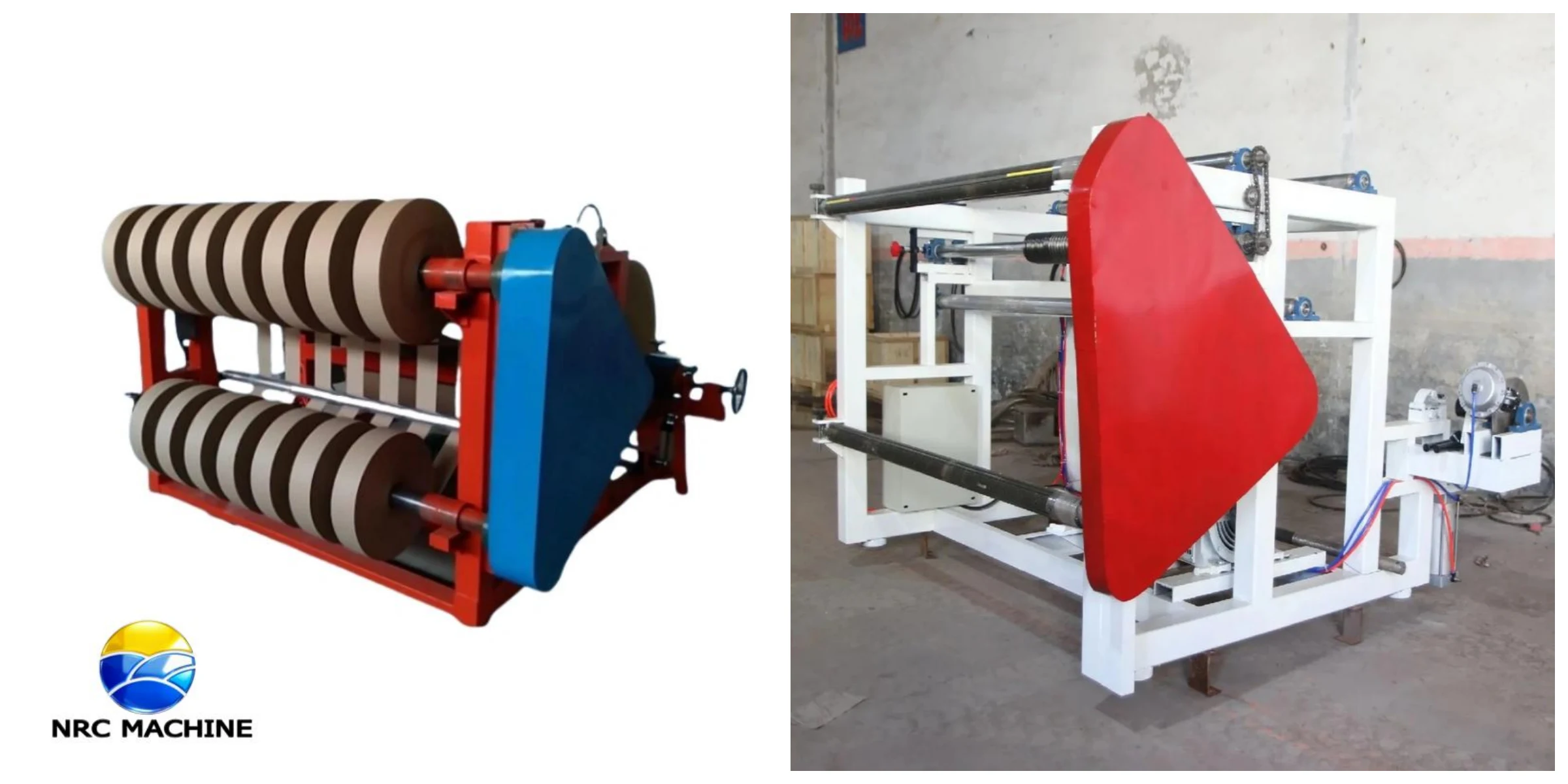

Small Roll Slitter Rewinder
1. Overzicht
Small Roll Slitter Rewinder, also known as jumbo paper roll slitter rewinder machine or papier snijmachine, is a complete‑set processing equipment that cuts wide jumbo paper rolls into narrow paper strips and rewinds them into finished small‑size rolls. The final finished rolls feature narrower width compared with the original jumbo parent rolls.
This small roll slitter rewinder precisely converts large raw paper jumbo rolls into compact, uniform small finished rolls for downstream paper‑processing production.
The small roll slitter rewinder supports stable high‑speed slitting and rewinding for multiple paper materials, widely adopted by paper‑product manufacturers worldwide.
2.Usage
Suitable for processing various paper materials, including kraft paper, tea paperboard, grass paperboard, calico art paper.
3.Main Features
- Equipped with a pair of knives for slitting operation.
- Ensures plate and smooth surface on both sides of paper strap after cutting.
- Delivers non‑raw‑edge paper strap performance with solid non‑loose paper coiling structure.
- Adopts manual rectify function for production fine‑tuning.
- High production output, capable of feeding three coiling tube machines simultaneously.
- Mold steel armor plate structure, guarantees excellent manufacturing fin precision.
4.Machine Technical Parameters
4.1 Core Working Parameters
Item | Specificatie |
Jumbo rolbreedte | 40‑1600mm |
Maximale afrolbreedte Jumbo-rol | 1600mm or customized |
Maximale diameter afwerkrol | 800 mm |
Max. snijsnelheid | 200m/min |
Slitting range (paper weight) | 60‑700g |
Kronkelende weg | Luchtdruksteel involutie |
Aantal bladen | 25 sets |
Papier laden | Pneumatisch |
Speed adjust mode | Electromagnetic |
Stroomingang | Based on Mexico Standard or customized |
4.2 Machine Dimension & Weight
Item | Specificatie |
Mainframe dimension (LWH) | 240023001500 mm |
Totaal gewicht | Ongeveer 1300 kg |
4.3 Driving System
Item | Specificatie |
Hoofdmotor | 4KW |
Bewegende snelheid | 1400r/min |
Adjust error control | Handmatig |
Rewinding decelerate mode | Pully en sprokets |
Spanning aanpassen | Handmatige gore van de veerwrijvingsplaat |
Driving way | Ketting en riem |
Bearing type | wanxiang |
4.4 Control System
Item | Specificatie |
Rijdende componenten | CHNT |
Signaalcomponenten | Snelheidstabel |
5.Manufacturer Information
Fabrikant: NRC MACHINE (Qingdao New Richuan Precision Machine Co, Ltd)
- Contact WhatsApp / Phone: +86 15254213289
- E-mail: james@nrcmachine.com
- Officiële website: https://nrcmachine.com
NRC MACHINE is a China‑based precision machinery manufacturer founded in 2005, with over 18‑year exporting experience for paper‑processing machinery, serving more than 80 countries globally.
6.FAQs
Q1: What kinds of paper can this Small Roll Slitter Rewinder process?
A1: It is compatible with kraft paper, tea paperboard, grass paperboard, calico art paper. Custom adjustment is available for special‑grade paper upon request.
Q2: Can the unwind width and power supply be customized?
A2: Yes. The max unwind width can be customized beyond 1600 mm; power input can be configured to match local electrical standards such as Mexico market requirements.
Q3: How many coiling‑tube machines can this slitter rewinder support?
A3: Thanks to its high‑output performance, this machine can offer material feeding for up to three coiling tube machines at the same time.
Q4: What is the max slitting running speed of this equipment?
A4: The maximum slitting speed reaches 200 m/min under standard working conditions.
Q5: What after‑sales support can NRC MACHINE provide?
A5: NRC MACHINE provides professional sales consultation, technical documentation, and complete after‑sales service for overseas clients.
