Adhesive Tape Slitting and Rewinding Machine | Complete BOPP Tape Making Line
1. Overview of Adhesive Tape Slitting and Rewinding Machine
The adhesive tape slitting and rewinding machine, also widely known as the adhesive tape making machine, is a complete set of professional processing equipment specially designed to convert jumbo BOPP adhesive tape rolls into standard small-size daily-use adhesive tape rolls. As core processing machinery in the packaging tape manufacturing industry, it realizes automated slitting, rewinding, core mounting and finished product sorting of BOPP/PET transparent tape, solving the conversion demand of large raw material rolls to commercial small tape rolls.
Transparent tape was invented by Richard Drew in 1928, mainly made of BOPP biaxially oriented polypropylene or PET substrate coated with acrylate adhesive. With water resistance, steam resistance and aging resistance, it is widely used in carton sealing, express packaging and daily repair scenarios. The adhesive tape slitting and rewinding process is the key final procedure for finished tape production, which cuts large jumbo rolls into standard small rolls with stable viscosity and uniform size.
NRC MACHINE, a professional manufacturer with 18+ years of export experience, provides cost-effective adhesive tape slitting and rewinding machine solutions, perfectly suitable for small and medium enterprises as well as small home business production needs.

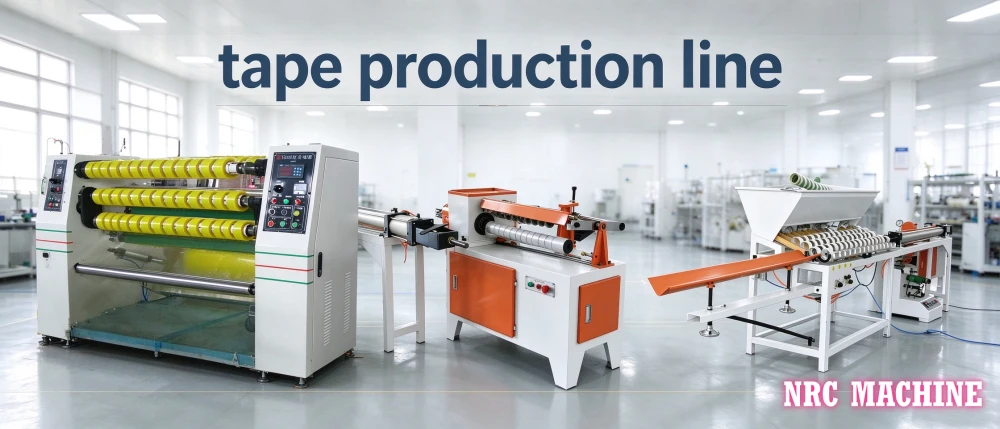

2. Composition of Full Set Adhesive Tape Slitting and Rewinding Machine Line
The complete adhesive tape slitting and rewinding machine production line consists of four core supporting devices, realizing one-stop automated production from raw material jumbo rolls to finished adhesive tape products. Each equipment works collaboratively to ensure high-precision, high-efficiency and stable tape processing.

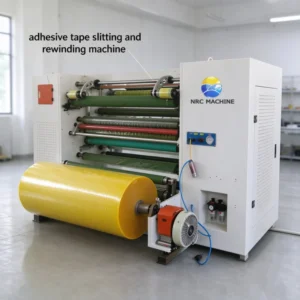

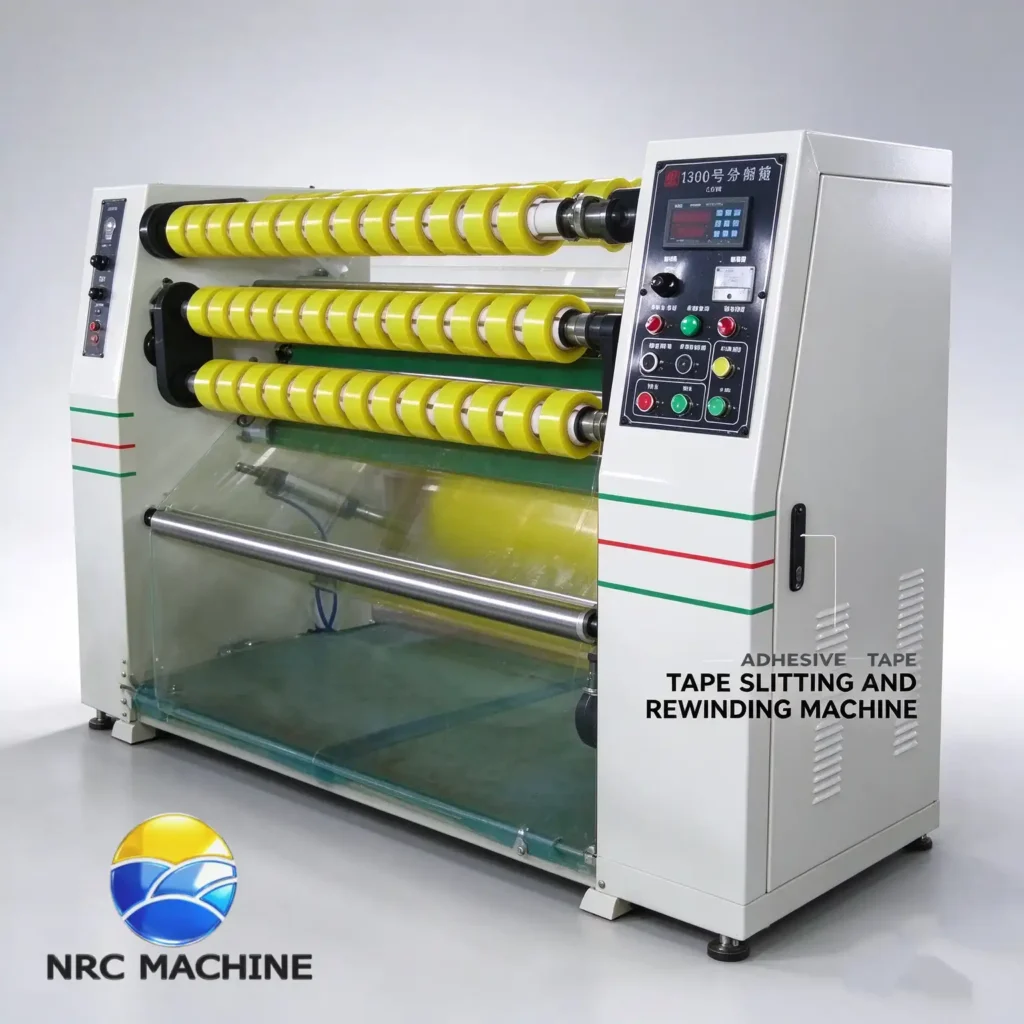

2.1 Core Equipment: 1300 Adhesive Tape Slitting Rewinding Machine
This is the main core device of the entire production line, responsible for high-speed slitting and precision rewinding of jumbo BOPP adhesive tape rolls. It adopts advanced tension control technology to ensure uniform slitting width and tight rewinding, avoiding loose rolls and wrinkling problems. The equipment features simple operation, stable performance and adjustable cutting speed, meeting the diversified production needs of different tape specifications.

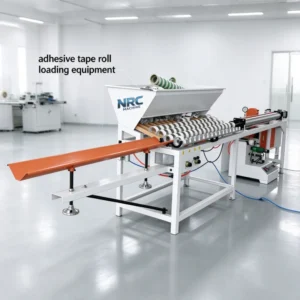

2.2 Auxiliary Equipment 1: 1300 Tape Core Loading Machine
Matched with the adhesive tape slitting and rewinding machine, this device realizes automatic paper core loading, replacing manual core placement, greatly improving production efficiency and reducing labor errors. It supports multi-specification paper core installation and is highly compatible with the main slitting and rewinding equipment.

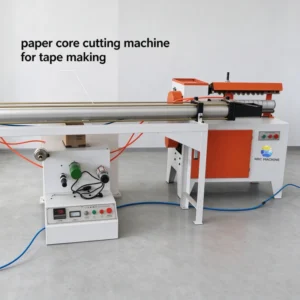

2.3 Auxiliary Equipment 2: Paper Core Cutting Machine
Specialized in customized cutting of tape paper cores, supporting fixed-size mold cutting. It provides standard paper core accessories for the adhesive tape slitting and rewinding machine, ensuring consistent inner diameter of finished tape rolls and improving product uniformity.
2.4 Auxiliary Equipment 3: Defective Product Rewinding Machine
Used for rewinding and repairing non-conforming tape products generated in the slitting process. It can reprocess defective rolls to reduce material waste, improve product yield and maximize production benefits for small-scale production workshops.
3. Detailed Technical Parameters of Adhesive Tape Slitting and Rewinding Machine Line
All equipment parameters are standardized and optimized for small and medium production scenarios, with compact structure, low energy consumption and strong practicability. The detailed parameter specifications are as follows:
Equipment Name | Dimension (L*W*H) | Core Technical Parameters | Working Performance |
1300 Adhesive Tape Slitting Rewinding Machine | 2.45m * 1.6m * 1.35m | Voltage: 380V, 50HZ; Max jumbo roll width: 1.3m; Min slicing width: 10mm | Cutting speed: 0-180 meters/minute, high precision slitting, stable operation |
1300 Tape Core Loading Machine | 5.6m * 0.8m * 1.35m | Applicable paper tube diameter: 25.4-76.2mm | Automatic core loading, high matching with slitting rewinding machine |
Paper Core Cutting Machine | 1.5m * 0.6m * 1.15m | Paper tube inner diameter: 76.2mm; Cutting mode: mold control fixed-size cutting | Accurate cutting size, consistent paper core specification |
Defective Product Rewinding Machine | 0.5m * 0.62m * 0.45m | Max curl diameter: 200mm | Winding speed: 0-100m/min, efficient rework of defective products |
4. Product Features & Production Standards of Adhesive Tape Slitting and Rewinding Machine
4.1 Professional Tape Production Process Standards
The production line strictly follows industrial transparent tape processing standards. The finished transparent tape processed by the adhesive tape slitting and rewinding machine adopts high-quality acrylic ester pressure-sensitive adhesive (main component: butyl ester), with a standard initial adhesion ≥ 13 steel ball number and glue thickness of about 22 microns. The BOPP raw film is treated by high-voltage corona to enhance glue adhesion, ensuring the finished tape has excellent water resistance, aging resistance and stable viscosity.
4.2 Core Equipment Advantages
- High Precision Processing: The adhesive tape slitting and rewinding machine supports minimum 10mm narrow slitting, meeting diversified specification production needs, with neat cutting edge without burrs.
- Full Automatic Operation: Integrated slitting, rewinding and core loading functions, reducing manual intervention, suitable for small home business and SME automated production.
- Stable & Durable: Equipped with standardized control system, low failure rate, long service life and easy daily maintenance.
- Cost-Effective: Compact equipment layout, low energy consumption, low investment threshold, ideal for start-up tape production projects.
5. Main Application Industry & Scenarios
The adhesive tape slitting and rewinding machine production line is mainly applied to the packaging industry, focusing on the production of BOPP transparent carton sealing tape. The finished adhesive tape is widely used in factory carton sealing, express logistics packaging, daily life repair, commodity packaging and other fields. It is the core processing equipment for small and medium tape manufacturers to produce commercial packaging tape.
6. Manufacturer Strength & Qualification Certification
The adhesive tape slitting and rewinding machine is manufactured by Qingdao New Richuan Precision Machine Co., Ltd (NRC MACHINE), a professional Chinese precision machinery manufacturer founded in 2005. With 18+ years of machinery export experience, the company has served more than 700 cooperative enterprises and exported products to over 80 countries and regions worldwide.
All equipment has passed CE, ISO and SGS international authoritative certifications, with reliable quality and compliant production standards. The company has professional sales team and complete after-sales service system, providing one-stop equipment selection, installation guidance and after-sales maintenance services for global customers.
7. FAQs About Adhesive Tape Slitting and Rewinding Machine
Q1: What kind of tape can this slitting and rewinding machine process?
A1:This machine is specially designed for BOPP transparent adhesive tape, also compatible with conventional PET substrate packaging tape. It can convert large jumbo tape rolls into various small-size finished rolls for packaging and daily use.
Q2: Is this equipment suitable for small home business and startup projects?
A2:Absolutely yes. The complete production line has compact overall size, low investment cost, simple operation and low maintenance cost. It is perfectly tailored for small and medium enterprises, family workshops and startup tape production businesses.
Q3: What is the production efficiency of the adhesive tape slitting and rewinding machine?
A3:The main slitting rewinding machine has a maximum cutting speed of 180 meters per minute. With the matching core loading and cutting equipment, it can realize continuous automated production, meeting the daily production demand of small and medium tape factories.
Q4: Can the equipment customize slitting width of adhesive tape?
A4:Yes. The machine supports customizable slitting width within 10mm-1300mm, which can meet the production requirements of different specifications of packaging tape and daily adhesive tape.
Q5: What after-sales services does NRC MACHINE provide?
A5:We provide professional equipment installation guidance, operation training, regular maintenance reminders and lifelong after-sales consultation services. Global customers can get quick response within 6 hours after contacting us.
