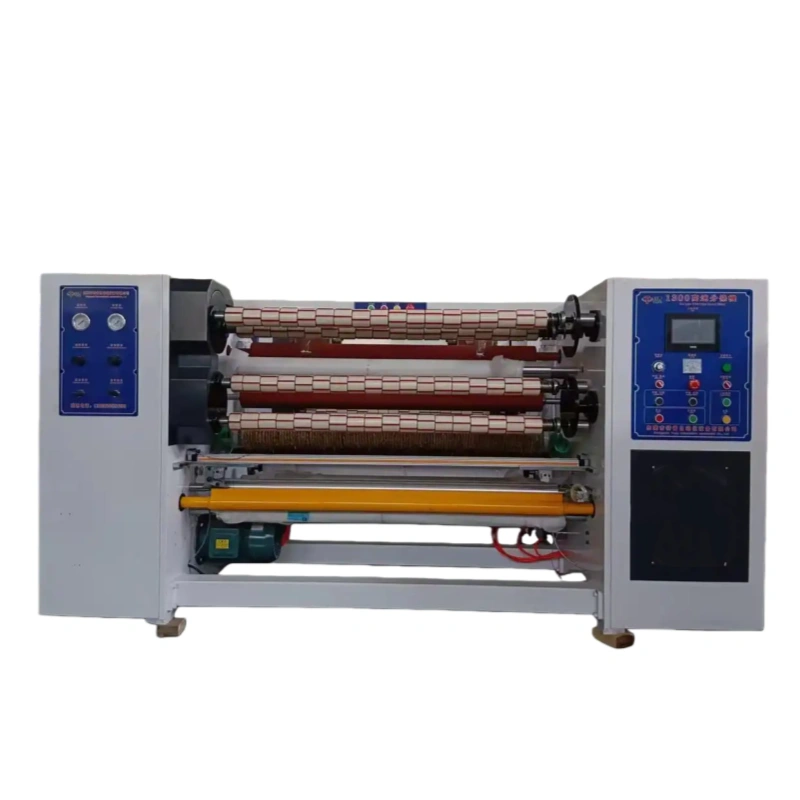

Automatic Adhesive Tape Film Slitting Machine – Product Description
-
Introduction
The Automatic Adhesive Tape Film Slitting Machine, engineered and manufactured by NRC MACHINE (Qingdao New Richuan Precision Machine Co., Ltd.), is a high-precision, fully automated solution designed for the efficient slitting and rewinding of adhesive tape rolls. With a maximum web width of 1300mm, this machine delivers exceptional performance in converting large parent rolls into multiple narrower rolls with precision, consistency, and high throughput. Ideal for industries involving packaging, electronics, medical, and industrial tapes, this slitting system combines advanced CNC control technology with robust mechanical design to ensure superior product quality and operational efficiency.
-
Key Features
automatic adhesive tape film slitting machine
- Maximum Roll Width:1300mm – suitable for a wide range of adhesive film materials.
- Fully Automatic Operation:Automated unwinding, slitting, rewinding, and tension control for minimal manual intervention.
- Precision Slitting System:Equipped with high-quality rotary cutters or razor blades for clean, accurate, and burr-free slitting.
- CNC Controller:Advanced numerical control system enables precise setting of slitting width, speed, tension, and length counting. User-friendly interface allows for quick setup and recipe storage.
- Dual Rewind Shafts:Supports continuous operation with one shaft rewinding while the other is being unloaded.
- Magnetic Powder Brake & Clutch:Ensures stable tension control during unwinding and rewinding processes.
- Optional Features:Edge trimming device, waste rewinding unit, automatic diameter detection, and center/surface winding conversion.
- Safety Protection:Equipped with emergency stop, protective covers, and safety interlocks to meet international safety standards.
-
Main Components
- Unwinding Unit:Pneumatically expandable chuck for secure roll holding; features automatic diameter detection and constant tension control.
- Slitting Section:Precision-guided cutting station with adjustable slitter spacing; supports both shear and razor slitting methods.

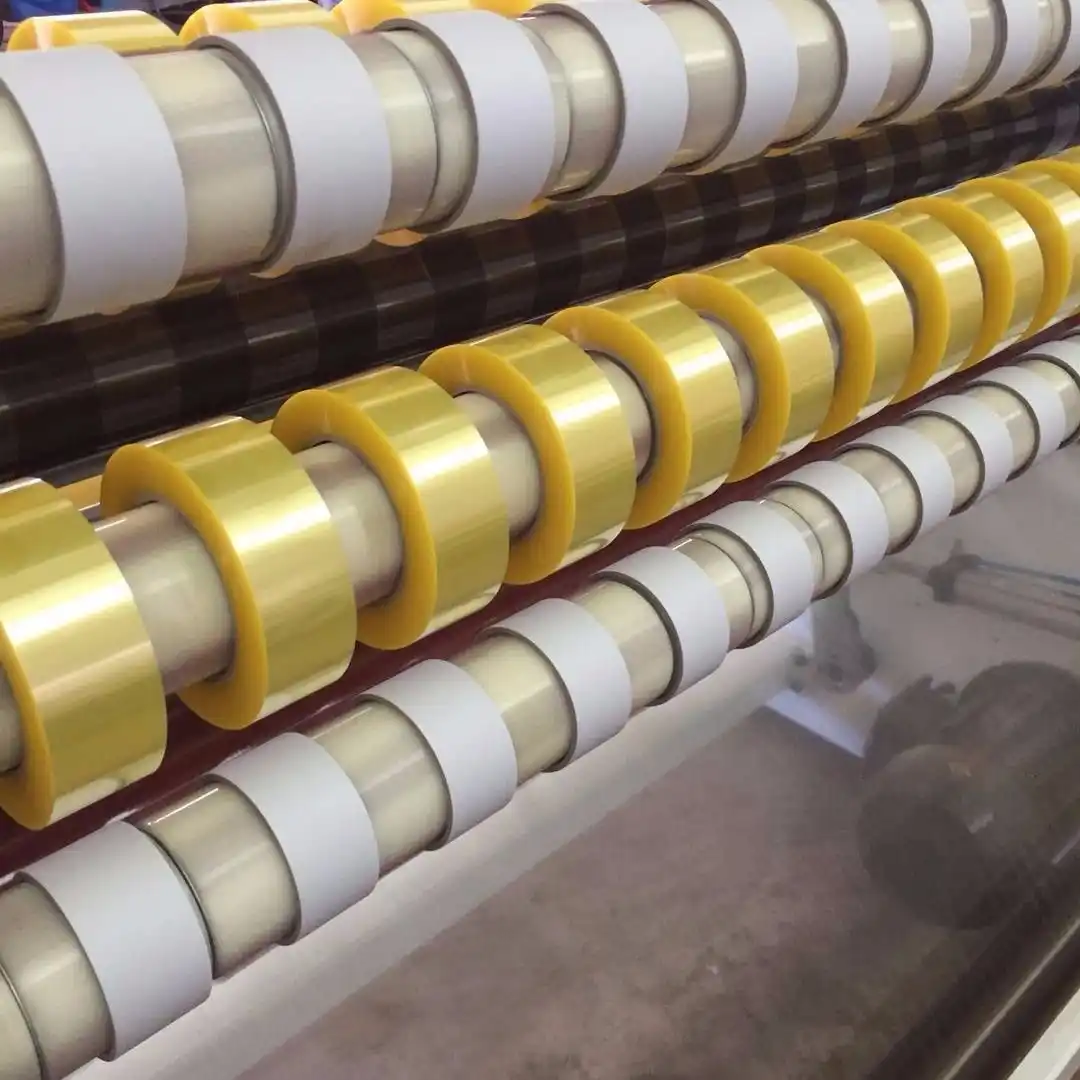

- Rewinding Unit:Dual-position turret rewinding system with adjustable pressure and core locking mechanism.
- CNC Control Panel:Touchscreen interface with programmable logic controller (PLC) for intuitive operation and real-time monitoring.
- Driving System:Servo motor-driven system ensures synchronized speed and accurate positioning.
- Dust Extraction & Cleaning System (Optional):Maintains film cleanliness during high-speed operation.
-
Technical Specifications
| Parameter | Specification |
| Max. Input Width | 1300 mm |
| Min. Slitting Width | 10 mm (adjustable) |
| Max. Unwinding Diameter | 800 mm |
| Max. Rewinding Diameter | 600 mm |
| Unwinding Core ID | 3″ (76 mm) or customized |
| Rewinding Core ID | 1″, 2″, 3″ or customized |
| Machine Speed | Up to 300 m/min (variable via CNC) |
| Power Supply | 380V / 50Hz / 3Phase (customizable) |
| Total Power | Approx. 11 kW |
| Control System | CNC + PLC with Touchscreen HMI |
| Air Pressure Requirement | 0.5 – 0.7 MPa |
| Machine Dimensions (L×W×H) | Approx. 4500 × 2200 × 1800 mm (customizable) |
| Weight | Approx. 3500 kg |
-
Applications
This automatic slitting machine is widely used in the processing of various adhesive materials, including:

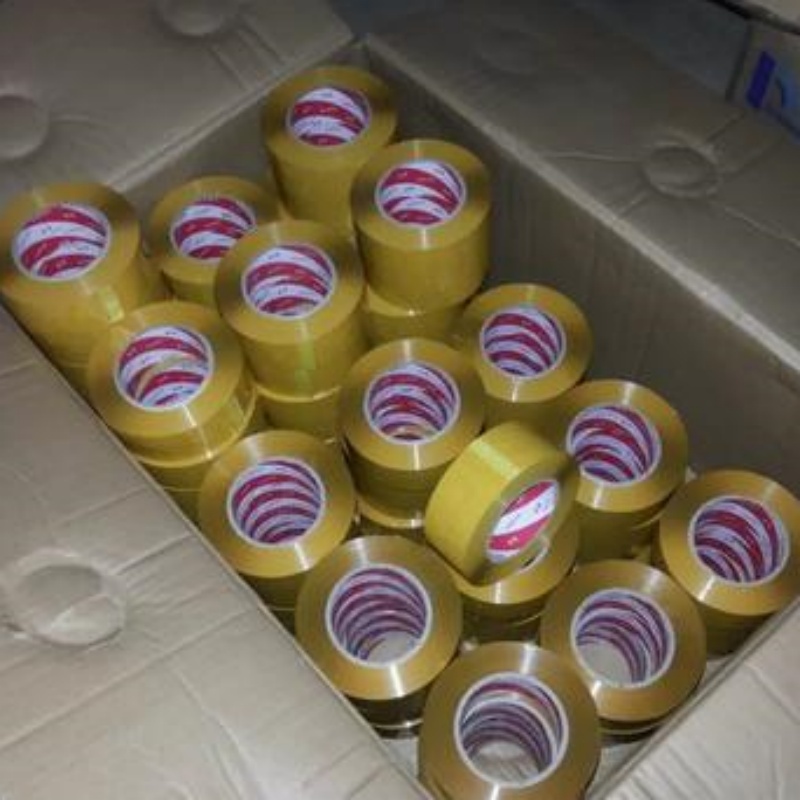

- BOPP tape
- Double-sided tape
- PVC electrical tape
- Masking tape
- Protective films
- Foam tape
- Medical tape
- Label stock
Suitable for packaging, electronics assembly, automotive, construction, and printing industries.
-
Advantages of NRC MACHINE’s Slitting Solution
- High Precision:CNC-controlled slitting ensures consistent width and edge quality.
- Increased Efficiency:Automated operation reduces labor costs and downtime.
- Reliable Performance:Built with high-grade components and rigorous quality control.
- Customizable Configuration:Available with optional modules to meet specific production needs.
- Excellent After-Sales Service:NRC MACHINE provides installation guidance, technical training, and global support.
-
Company Overview – NRC MACHINE
Qingdao New Richuan Precision Machine Co., Ltd. (NRC MACHINE) is a leading manufacturer of precision winding and slitting equipment in China. Specializing in the R&D, production, and export of adhesive tape machinery, film slitting machines, and coating equipment, NRC MACHINE serves clients across Asia, Europe, North America, and beyond. With a commitment to innovation, quality, and customer satisfaction, the company continues to deliver advanced automation solutions for the converting industry.
- Certifications:CE, ISO9001
- R&D Center:In-house engineering team with over 15 years of experience
- Global Presence:Equipment exported to more than 30 countries
-
Conclusion
The Automatic Adhesive Tape Film Slitting Machine (1300mm) from NRC MACHINE represents the perfect blend of precision engineering, automation, and reliability. Whether you are producing industrial tapes or specialty adhesive films, this machine ensures high-quality output, reduced waste, and enhanced productivity. Backed by professional technical support and a reputation for excellence, NRC MACHINE is your trusted partner in tape converting solutions.
Contact us today to learn more about customization options, pricing, and after-sales service.
NRC MACHINE – Precision. Innovation. Performance.
