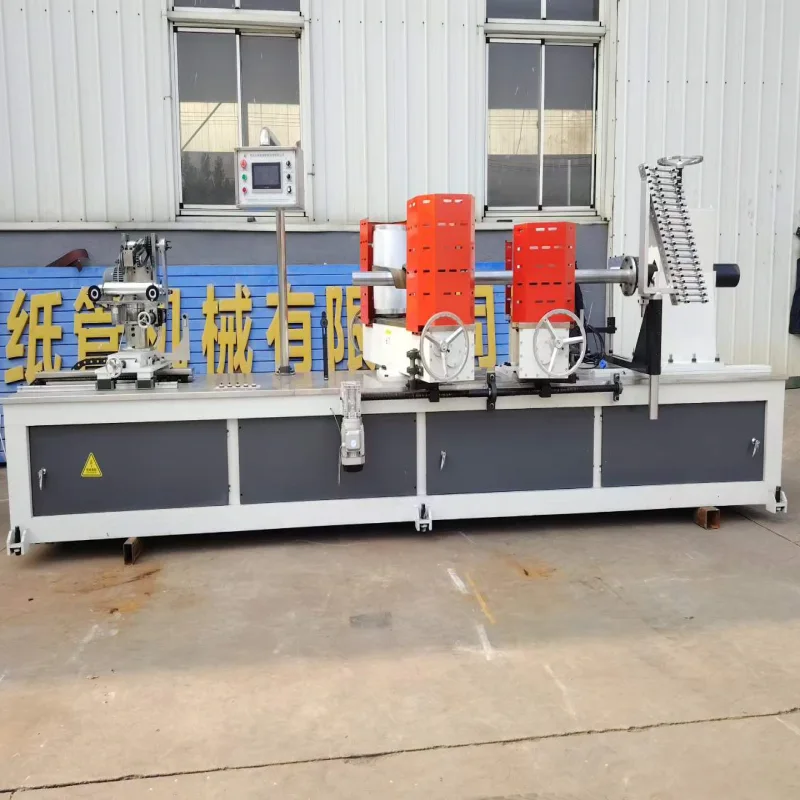

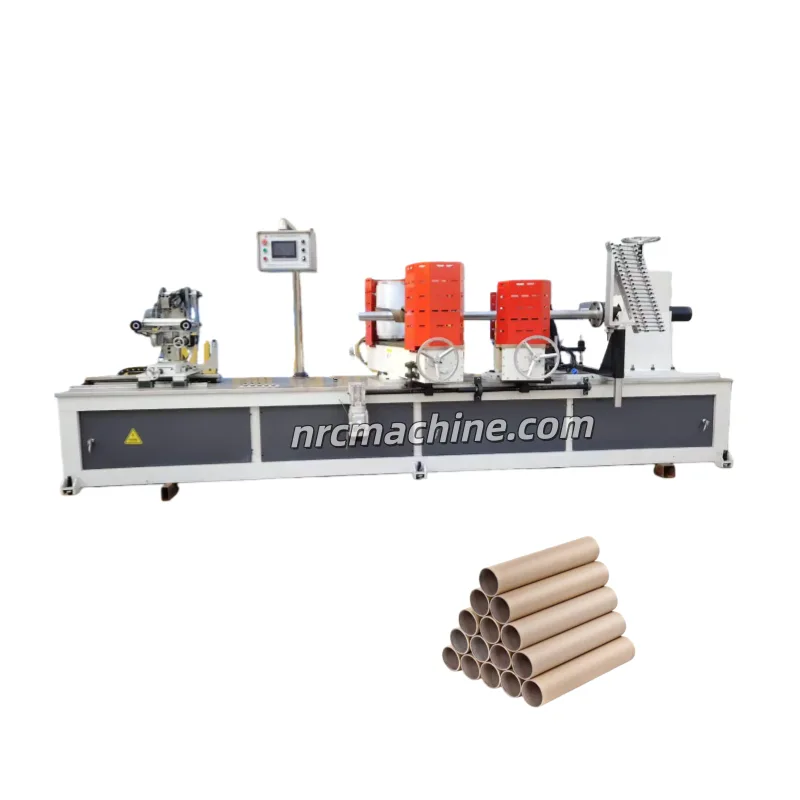

High Speed Paper Tube Maker Machine by NRC MACHINE – Precision, Efficiency & Reliability

1. Introduction: Advanced Paper Tube Manufacturing Solution

The High Speed Paper Tube Maker Machine by NRC MACHINE is a state-of-the-art industrial solution designed for efficient, high-volume production of paper tubes. Engineered with precision and durability in mind, this machine meets the demands of modern packaging, textile, and industrial roll manufacturing industries. With advanced automation and robust construction, it ensures consistent quality and maximum productivity.

2. Key Specifications at a Glance

   Four Heads 200mm Paper Tube Machine
   1.Technical parameter
   Roll tube paper layer	3-25 (layers)
   Paper tube diameter	30-200 (mm)
   Paper tube thickness	5-15 (mm)
   The Finished Paper Tube Core Cutter Length	≥1000mm
   Production speed	0-25 (m / min)
   Fixed-length mode	Light Control (Infrared)
   Winding machine head	Four machine head
   Cutting method	Single round knife cutting
   Core mold fixed way	Flange plus tight
   Glue way	Double-sided adhesive
   control method	Frequency
   Input voltage	380V / 220V
   Number of operators	1-3 people
   2.Size
   Host Size: L * W * H	4200mm*1700mm*1900mm
   Land area: length *width	20000mm*9000mm
   Hub diameter	294mm
   Hub height	360mm/430mm
   Minimum track	1000mm
   The biggest argument	1250mm
   total weight	4500kg
   3.Drive System
   Monitor rate	18kw Shanghai strong speed
   Host speed	1400r / min
   The maximum wheel speed	47r / min
   Hub output torque	8500N.m
   Reducer models	WPO 155 Hangzhou Xiaoshan
   Drive chain model	12A * 2
   Wheel drive	4 wheel drive
   Cutter motor	0.4kw gear motor Shanghai Ott
   Bearing	Universal bearings
   4.Control System
   Inverter	An Rui Ji products
   The main implementation of the device (contactors,etc.)	Chint product
   Signal element (proximity switch, etc.)	Shanghai industrial products
   Cylinder components	tian ao products
   Synchronous control	pneumatic
   Fixed-length way	Proximity switch
   PLC controller	wei kong products
   HMI	Kunlun products
   Emergency stop button	Jiangyin Yangtze River brand
   5.Configuration device
   Drop tube rack	automatic
   Belt adjustment	Adjust manually
   Paper frame swing angle	Adjust manually
   For glue	Automatic stainless steel heating plastic tank
   Bottom paper for lubrication	Automatic lubrication of stainless steel basin
   Tension adjustment	Mechanical adjustment
   Paper holder type	Right-angle fixed lifting on the paper holder
   Roll mandrel	1
   Roll tube belt	2 pieces
   Applications	Have
   Bottom, surface paper device	Stainless steel paper holder, paper cone
   Under the rack	Stainless steel plate
   Host	Stainless steel countertops
   Paper guide	stainless steel pipe

3. Core Features & Benefits

✅ High-Speed Performance

With a maximum speed of 40 m/min, this machine delivers exceptional output, ideal for medium to high-volume production environments.

✅ Precision Servo Motor Control

The integrated servo motor driver ensures smooth, accurate winding and consistent tube dimensions, minimizing waste and improving product uniformity.

✅ Wide Range of Tube Sizes

Produce tubes with inner diameters from 30 mm to 200 mm and thicknesses from 1 mm to 15 mm, making it versatile for various applications.

✅ User-Friendly Operation

Equipped with an intuitive HMI (Human-Machine Interface), operators can easily set parameters, monitor performance, and perform quick changeovers.

✅ Durable & Low Maintenance Design

Built with high-quality components and corrosion-resistant materials, the machine ensures long-term reliability and reduced downtime.

✅ Energy Efficient & Eco-Friendly

Optimized power consumption and minimal material waste support sustainable manufacturing practices.

4. Applications Across Industries

The NRC High Speed Paper Tube Maker is widely used in:

• Packaging Industry:Core tubes for films, foils, and labels
• Textile Sector:Bobbins and spools for yarn and thread
• Paper Converting:Carrier tubes for toilet paper, paper towels, and industrial rolls
• Printing & Laminating:Precision cores for web-fed processes
• Industrial Manufacturing:Custom tubes for electrical, chemical, or mechanical uses

5. Why Choose NRC MACHINE?

• ✅ Innovative Technology:20+ years of R&D in paper processing machinery
• ✅ Global Support Network:Installation, training, and after-sales service available worldwide
• ✅ Customization Options:Tailor the machine to specific production needs (e.g., diameter range, speed, automation level)
• ✅ CE & ISO Certified:Meets international safety and quality standards

NRC MACHINE is committed to delivering smart, scalable solutions that enhance productivity and reduce operational costs.

6. Technical Support & After-Sales Service

We provide comprehensive support including:

• On-site installation and commissioning
• Operator training and maintenance guides
• 24/7 remote troubleshooting
• Spare parts supply and lifetime technical support

Our goal is to ensure your machine runs at peak performance for years to come.

7. Conclusion: Elevate Your Production with NRC’s High Speed Paper Tube Maker

For businesses seeking a reliable, high-performance paper tube making solution, the NRC MACHINE offers the perfect blend of speed, precision, and durability. Whether you’re producing packaging cores, textile bobbins, or industrial spools, this machine is engineered to deliver consistent quality and maximum ROI.

Contact NRC MACHINE today to request a quote, product catalog, or free consultation.
