NRC Machine Toilet Paper

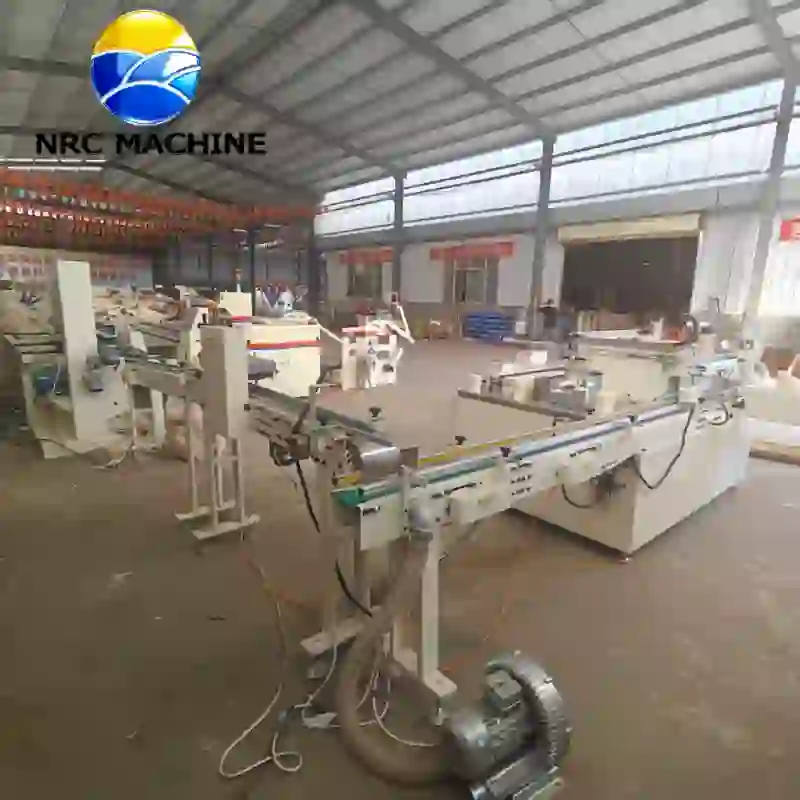

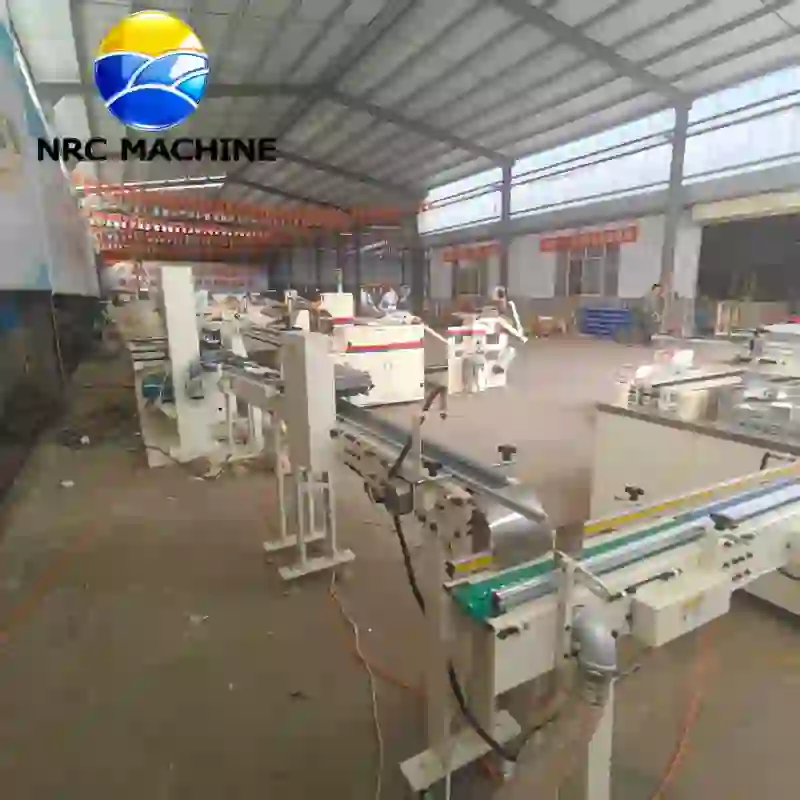

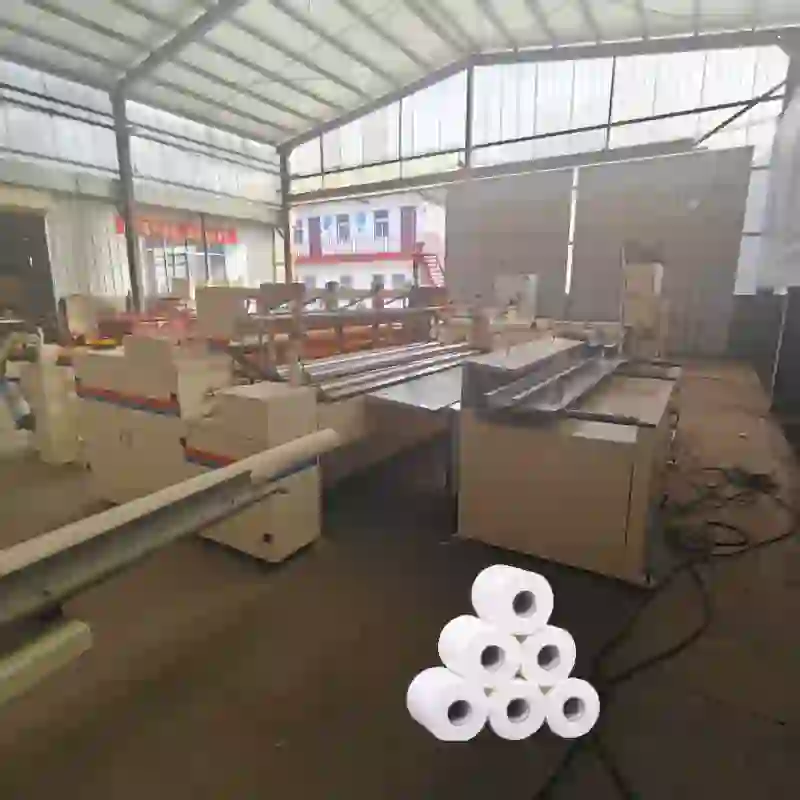

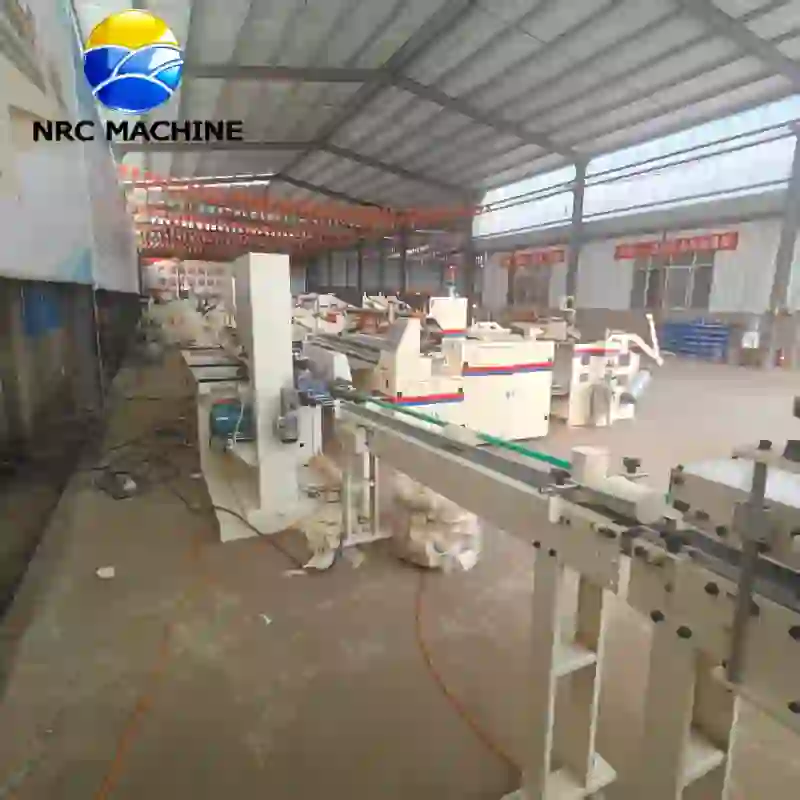

NRC MACHINE Toilet Paper could produce toilet paper rolls from jumbo tissue paper rolls.It is full automatic machine.NRC MACHINE (Qingdao New Richuan Precision Machine Co.,Ltd) manufactures a fully automatic toilet paper production line that includes a high-speed rewinder, a log cutter, and a packaging machine, designed for efficient and stable production.
Toilet Paper Rewinder
The core of the system is the high-speed toilet tissue paper rewinding machine, which features advanced automation to ensure a seamless process.
- Operation: The machine uses international advanced PLC programmable controlling technique and a man-machine interface for easy operation and data setting.
Key Features:
- Automatic Core Feeding: It automatically feeds paper cores and pushes out the finished logs, then rewinds the new log immediately.
- Edge Trimming & Sealing: It performs automatic edge-trimming, glue spraying, and sealing synchronously in one step, leaving a 10-18mm tail for easy opening, which reduces waste.
- Stability: The wall-type whole structure is designed for stable running at high speed and low noise levels.
- Perforation: High-precision spiral knives are used for clear, low-noise perforation, with adjustable distance.
- Jumbo Roll Handling: It includes a pneumatic lifting system with three paper stands and wide driving flat belts to handle jumbo rolls independently.
Toilet Paper Cutter
While specific details on the NRC brand cutter are limited in the provided results, the overall production line includes a band saw log cutter as a necessary supporting equipment. These are designed to precisely cut the long logs produced by the rewinder into individual, ready-for-packaging rolls.
Multi-Rolls Packaging Machine
The final component in the line is the packaging machine for multi-rolls. This machine is part of the integrated, automatic process to complete the production line. It is designed to efficiently package multiple toilet paper rolls together for commercial sale.
Technical Parameter
| Parent roll width | 2000mm |
| Parent roll diameter | ≤Φ 1300 mm (other sizes pls specify ) |
| Parent roll core diameter | 76.2mm |
| Finished roll size | Ddiameter：Φ100~130 mm ；L：100-260mm Inner diameter：Φ 20～50 mm |
| Back Stand | 2 ply,gluing laminating,double belts，pneumatic parent roll loading |
| Perforating | Perforating pitch：200-220mm adjustable；Bottom perforating knife:Teflon aloy,Ratio：5：1 |
| Transmission system | Individual driving |
| Speed | 120-180m/min |
| Power | 50kw |
| 气动系统 Pneumatic system | 0.45Mpa-0.6Mpa （standard pressure ）e |
| Embossing | embossing,steel to rubber rollers,auto gluing,1 pattern as order |
| Air consumption | Normally 50m³/shift |
| Core releasing | Auto |
| Shield | Main driving parts protected by shields |
| Electrics | PLC computer control colored touch screen,Inverter frequency conversion,Airtec pneumatics. |
| Machine dimension | 7000×3500×1800mm |
| Weight | 5000kg |
