Paper Roll-to-Roll Slitting Machine

1. Introduction

The Paper Roll-to-Roll Slitting Machine, engineered and manufactured by NRC MACHINE (Qingdao New Richuan Precision Machine Co., Ltd), is a high-performance, precision industrial machine designed for the efficient conversion of wide jumbo paper rolls into multiple narrow rolls. Combining advanced CNC control technology with robust hydraulic systems, this slitting machine delivers consistent, accurate, and high-speed performance, meeting the demanding requirements of modern paper processing industries.

Ideal for applications in packaging, printing, tissue, and label production, the machine ensures clean, precise cuts with minimal material waste, enhancing both productivity and product quality.

2. Key Features

• High-Speed Operation: Capable of running at variable speeds from 0 to 300 meters per minute, allowing flexible production rates based on material type and roll specifications.
• Precision Slitting: Accurately transforms wide jumbo rolls into multiple narrow rolls with consistent width and edge quality.
• CNC Controller: Equipped with an advanced Computer Numerical Control (CNC) systemfor intelligent operation, enabling precise parameter settings, real-time monitoring, and automated adjustments.
• Hydraulic System: Integrated hydraulic unwinding and rewinding mechanismsensure smooth tension control, minimizing paper breakage and ensuring uniform roll density.
• User-Friendly Interface: The CNC control panel features an intuitive HMI (Human-Machine Interface), simplifying operation, setup, and fault diagnostics.
• Durable Construction: Built with high-rigidity components and precision bearings to withstand continuous industrial use.
• Safety Compliant: Designed in accordance with international safety standards, featuring emergency stops, protective covers, and overload protection.

3. Technical Specifications

4. Operational Workflow

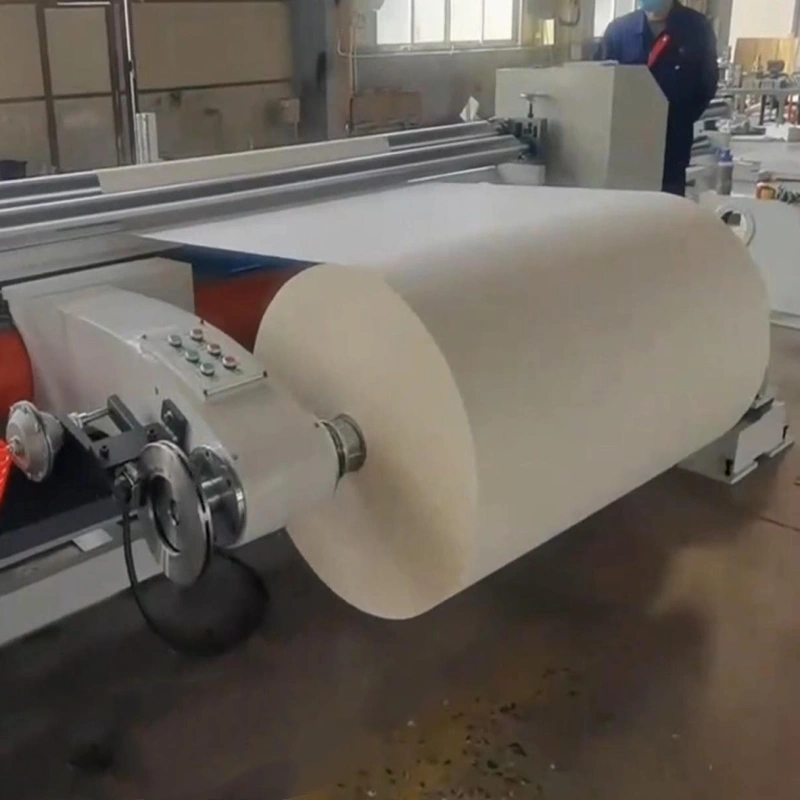

• Loading: The wide jumbo roll is loaded onto the hydraulic unwinding shaft.
• Threading: The paper web is threaded through the guiding rollers and tension control system.

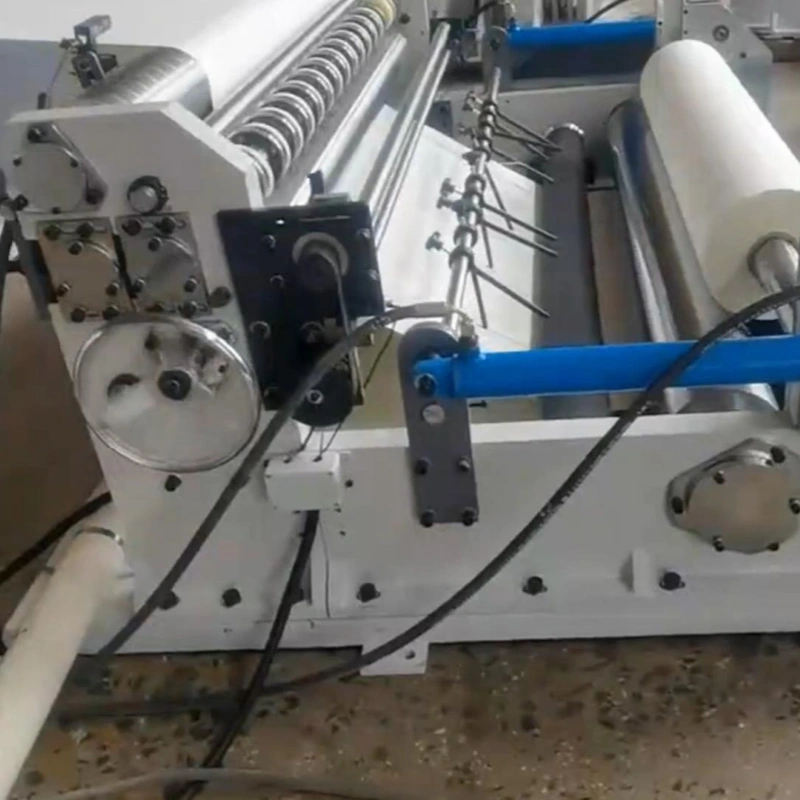

• Slitting: The paper passes through the slitting section, where it is cut into multiple narrow strips using precision blades.
• Rewinding: The narrow strips are simultaneously rewound onto cores on the rewinding shaft under controlled tension.
• Cut-Off & Ejection: Upon reaching the preset length or diameter, the rolls are automatically cut and ejected.
• Data Management: The CNC system logs production data, including length, speed, and batch information.

        5.Control System (CNC Controller)

The machine is powered by a state-of-the-art CNC controller, offering:

• Programmable Recipes: Save and recall settings for different paper types and roll specifications.
• Real-Time Monitoring: Display of speed, tension, length, and fault alerts.
• Fault Diagnosis: Automatic detection and display of system errors with troubleshooting guidance.
• Remote Access: Optional remote monitoring and maintenance support via industrial IoT integration.

6. Hydraulic System

The integrated hydraulic system provides:

• Smooth and adjustable unwinding and rewinding tension.
• Hydraulic roll loading/unloading for operator safety and efficiency.
• Pressure stability under high-speed operation.
• Overload protection to prevent mechanical damage.

All hydraulic components are sourced from reputable brands to ensure reliability and long service life.

7. Applications

This slitting machine is widely used in:

• Label and adhesive paper processing
• Packaging paper conversion
• Printing paper roll preparation
• Industrial paper product manufacturing

8. Advantages of NRC MACHINE’s Slitting Solution

• High Efficiency: Maximizes output with minimal downtime.
• Precision Engineering: Ensures uniform roll quality and edge finish.
• Low Maintenance: Designed for durability with easy access to key components.
• Customization: Available in various configurations to match specific production needs.
• After-Sales Support: NRC MACHINE provides comprehensive installation, training, and technical support globally.
