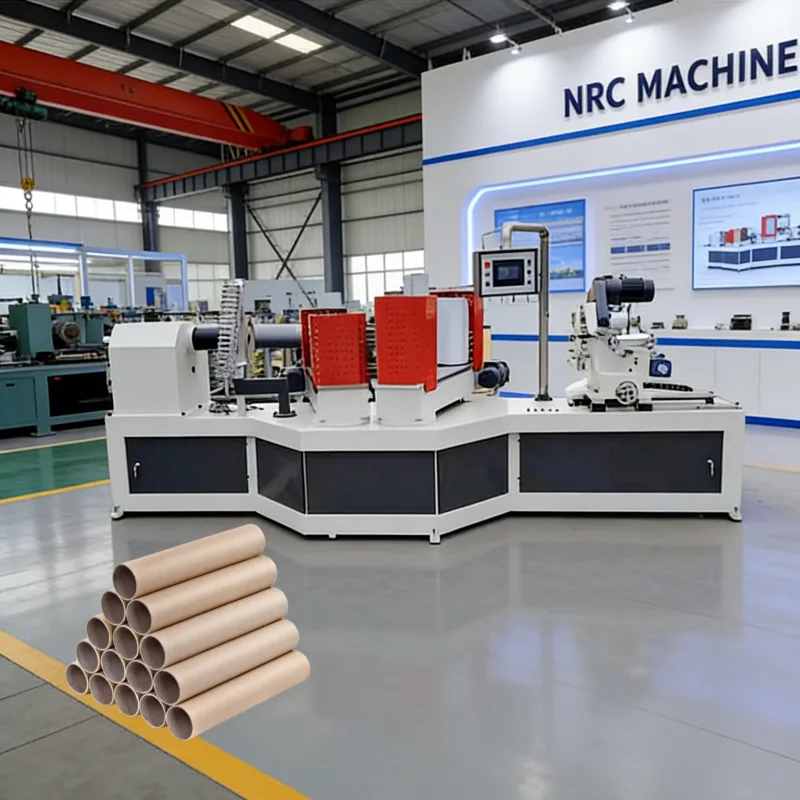

Spiral Paper Core Winding Machine by NRC MACHINE
1. Product Overview of Spiral Paper Core Winding Machine
The spiral paper core winding machine is a high-precision paper processing equipment independently developed and manufactured by Qingdao New Richuan Precision Machine Co.,Ltd, specialized in converting kraft paper rolls into high-quality spiral paper cores through advanced spiral winding technology.
As a core product of NRC MACHINE’s paper tube machinery series, this spiral paper core winding machine is designed with a fully automatic production mode, integrating advanced servo motor and CNC controller systems to realize intelligent and efficient spiral paper core production.
The spiral paper core winding machine is equipped with Four Machine Heads, which greatly improves production efficiency while ensuring the uniformity and precision of spiral paper core products, and is widely used in packaging, textile, chemical and other industries that require paper core accessories.
2. Core Technical Parameters of Spiral Paper Core Winding Machine
The spiral paper core winding machine of NRC MACHINE has strict and adjustable technical parameters, which can meet the customized production needs of different spiral paper core specifications, and the core parameters are as follows:
| Item Name | Specification & Description |
| Inner diameter of spiral paper core | 30~200mm, flexible adjustment to match various application scenarios of paper cores |
| Thickness of paper core wall | 1~15mm, can be set according to the hardness and load-bearing requirements of the spiral paper core |
| Core structure | Four Machine Heads, synchronous operation to realize batch production of spiral paper cores |
| Raw material | Specialized for kraft paper rolls, adapting to different grammages and widths of kraft paper |
| Transmission system | High-precision servo motor, stable power output and stepless speed regulation |
| Control system | Professional CNC controller, intelligent setting of winding parameters and real-time production monitoring |
| Production mode | Full Automatic spiral paper core production line, one-stop completion of spiral winding, gluing, cutting and forming |
3. Core Technology & Advantages of Spiral Paper Core Winding Machine
3.1 Advanced Spiral Winding Technology
The spiral paper core winding machine adopts the optimized spiral winding process, which makes the kraft paper rolls wind in a spiral overlapping way to form the paper core. The spiral structure effectively improves the compressive strength and torsion resistance of the spiral paper core, and the bonding between paper layers is firm, which is not easy to crack during use. The winding pitch and tightness can be freely adjusted through the CNC controller to ensure the consistency of the spiral paper core products.
3.2 Servo Motor + CNC Controller Dual Intelligent Control
The matching of servo motor and CNC controller is the core technical advantage of the spiral paper core winding machine. The servo motor provides accurate and stable power for the Four Machine Heads, ensuring the synchronous and high-precision operation of each head, and realizing the uniform winding of kraft paper rolls; the CNC controller supports the storage of multiple production process parameters, which can realize one-key switching of different spiral paper core specifications, reduce the debugging time of equipment, and improve the overall production efficiency of the Full Automatic spiral paper core production line.
3.3 Fully Automatic Integrated Production
The spiral paper core winding machine is the core equipment of the Full Automatic spiral paper core production line, which can realize the automatic connection of all processes from the feeding of kraft paper rolls, spiral winding, automatic gluing, precise cutting to the blanking of finished spiral paper cores. It greatly reduces the participation of manual operation, reduces human error, and ensures the high consistency of the size and quality of the spiral paper core products.
4. Application of Spiral Paper Core Machine
The spiral paper core winding machine produced by NRC MACHINE is widely used in the production of various spiral paper cores, and the finished spiral paper cores are applied to many industries such as packaging, textile, printing, chemical fiber and adhesive tape:
- Packaging industry: Production of paper cores for film, tape, and packaging roll materials
- Textile industry: Manufacturing of DTY/POY paper tubes for chemical fiber yarn winding
- Printing industry: Paper cores for roll paper, printing film and other roll materials
- Paper processing industry: Matching paper cores for toilet paper rolls, kitchen paper towels and other paper products
5. Manufacturer Strength of Spiral Paper Core Winding Machine
Qingdao New Richuan Precision Machine Co.,Ltd (NRC MACHINE), the manufacturer of the spiral paper core winding machine, was founded in 2005 and has more than 18 years of R&D and manufacturing experience in paper tube machinery and related paper processing equipment. The company has obtained ISO, SGS, FAMI-QS and other international certificates, and its products are exported to more than 80 countries and regions, with more than 700 cooperative companies worldwide.
NRC MACHINE has a professional R&D team and after-sales service system, which can provide customized design, on-site installation and debugging, technical training and long-term maintenance for the spiral paper core winding machine according to the actual production needs of customers. The strategic location in Qingdao, a major port city in Shandong Province, also ensures the efficient logistics and global delivery of the spiral paper core winding machine and other equipment.
6. Why Choose NRC MACHINE’s Spiral Paper Making Machine?
- High precision & stability: The combination of servo motor and CNC controller ensures the precision of spiral paper core production and the stable operation of equipment
- High efficiency production: Four Machine Heads and Full Automatic spiral paper core production line realize batch and fast production of spiral paper cores
- Strong customization: The inner diameter and wall thickness of the spiral paper core can be flexibly adjusted to meet diverse production needs
- Reliable quality: Adopt high-quality accessories and strict production process, the spiral paper core winding machine has a long service life
- Perfect after-sales: Professional sales and after-sales team provide one-stop technical support and service for global customers
As a professional manufacturer of paper processing machinery, NRC MACHINE has been committed to the innovation and upgrading of the spiral paper core winding machine and other equipment, and provides high-quality spiral paper core production solutions for global customers with the concept of “quality, service and reputation”.
Manufacturer: Qingdao New Richuan Precision Machine Co.,Ltd (NRC MACHINE) | Official Website: https://nrcmachine.com
