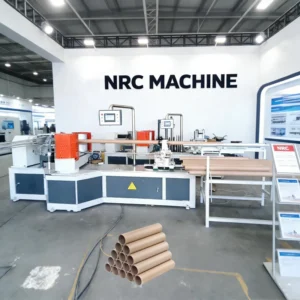

Understanding the Two Heads Paper Tube Machine: Innovation in CNC Spiral Tube Manufacturing
What Is a Two Heads Paper Tube Machine?
The Two Heads Paper Tube Machine is a specialized industrial machine designed to produce spiral-wound paper tubes continuously and automatically. Unlike traditional single-head models, this machine is equipped with two independent forming heads, allowing simultaneous production of two paper tubes. This dual-head configuration significantly increases output while reducing labor and operational costs.
Also referred to as the Two Heads CNC Spiral Paper Tube Machine, it leverages computer numerical control (CNC) technology to ensure precise diameter control, consistent wall thickness, and smooth operation. The integration of automation makes it ideal for medium to high-volume production environments.
The paper tube machine is especially valued for its versatility in handling various paper materials, including kraft paper, liner paper, and recycled paperboard, making it a sustainable choice for eco-conscious manufacturers.
Key Technical Specifications
Below are the core technical parameters that define the performance of the Two Heads CNC Spiral Paper Tube Machine:
- Inner Diameter Range: 20 mm to 150 mm
(Supports a wide variety of tube sizes for different industrial needs) - Wall Thickness: 1 mm to 10 mm
(Adjustable based on application requirements – from lightweight to heavy-duty tubes) - Production Speed: 0 to 40 meters per minute
(Variable speed control for optimal performance across different materials and diameters) - Drive System: Servo Motor Driver
(Ensures precise control, energy efficiency, and smooth acceleration/deceleration) - Control System: CNC Controller (Delta Brand)
(Renowned for reliability, user-friendly interface, and real-time monitoring) - Manufactured By: NRC MACHINE (Qingdao New Richuan Precision Machine Co., Ltd)
(A trusted name in precision engineering and paper processing machinery)
These specifications make the paper tube machine suitable for producing cores used in textiles (e.g., weaving beams), adhesive tapes, protective sleeves, and packaging rolls.
Core Features and Technological Advantages
3.1 Dual-Head Design for Double Productivity
With two independent forming stations, the machine can produce two tubes at once—either of the same size or different sizes—based on preset configurations. This flexibility is ideal for factories fulfilling diverse customer orders without frequent changeovers.
3.2 CNC Control with Delta Brand Controller
The inclusion of a Delta-brand CNC controller ensures high precision in diameter and length settings. Operators can store multiple production recipes, enabling quick recalls and reducing setup time. Real-time diagnostics and error alerts further enhance machine uptime and maintenance efficiency.
3.3 Servo Motor Driver for Energy Efficiency and Precision
The servo-driven system provides accurate tension control during paper feeding and winding. It adjusts dynamically to material thickness and speed changes, minimizing waste and improving tube quality. Compared to traditional motor systems, servo drives consume less energy and offer longer service life.
3.4 Wide Processing Range
With an inner diameter range from 20 mm to 150 mm and wall thickness from 1 mm to 10 mm, the Two Heads Paper Tube Machine can produce everything from small-diameter cores for labels to large, thick-walled tubes for heavy industrial use.
3.5 User-Friendly Interface and Automation
The machine features a touch-screen HMI (Human-Machine Interface) that allows operators to monitor production data, adjust settings, and view fault diagnostics with ease. Automated glue application, paper feeding, and cutting systems reduce manual intervention and human error.
Applications Across Industries
The versatility of the Two Heads CNC Spiral Paper Tube Machine makes it indispensable in various sectors:
- Packaging Industry: For producing cardboard cores used in stretch film, adhesive tape, and laminates.
- Textile Sector: Manufacturing warp beams and weaving cores with high load-bearing capacity.
- Printing and Labeling: Creating precision cores for roll-fed printing presses and label dispensers.
- Construction and Cable Industry: Producing heavy-duty paper tubes for protecting cables and pipelines.
Thanks to its wide size range and customizable wall thickness, the paper tube machine meets the stringent demands of these industries while maintaining cost-efficiency.
Why Choose the NRC MACHINE Two Heads Model?
NRC MACHINE, a division of Qingdao New Richuan Precision Machine Co., Ltd, has built a reputation for delivering high-precision, durable, and innovative paper processing equipment. Their Two Heads Paper Tube Machine reflects this commitment through:
- Robust Build Quality: Constructed with heavy-duty steel frames to minimize vibration and ensure long-term stability.
- Advanced Automation: Reduces dependency on skilled labor and increases production consistency.
- Global Compliance: Designed to meet international safety and performance standards.
- After-Sales Support: NRC offers technical training, spare parts supply, and remote diagnostics to support global clients.
Factories upgrading from manual or semi-automatic systems will see a dramatic improvement in output and product uniformity after integrating this paper tube machine into their production line.
Conclusion: The Future of Paper Tube Manufacturing
The Two Heads Paper Tube Machine represents a significant leap forward in automation, efficiency, and precision within the paper tube industry. With its wide processing range, intelligent CNC control, and dual-head productivity, it offers a compelling return on investment for manufacturers aiming to scale up.
Whether you’re in packaging, textiles, or industrial supplies, integrating this Two Heads CNC Spiral Paper Tube Machine into your workflow can enhance product quality, reduce waste, and streamline operations. Backed by the engineering excellence of NRC MACHINE, this paper tube machine is not just a tool—it’s a long-term partner in sustainable and profitable manufacturing.
For businesses seeking reliable, high-performance solutions, the Two Heads CNC Spiral Paper Tube Machine from Qingdao New Richuan is a choice worth making.
