Title: Understanding the Two Heads Paper Tube Making Machine: Innovation in Modern Paper Tube Production

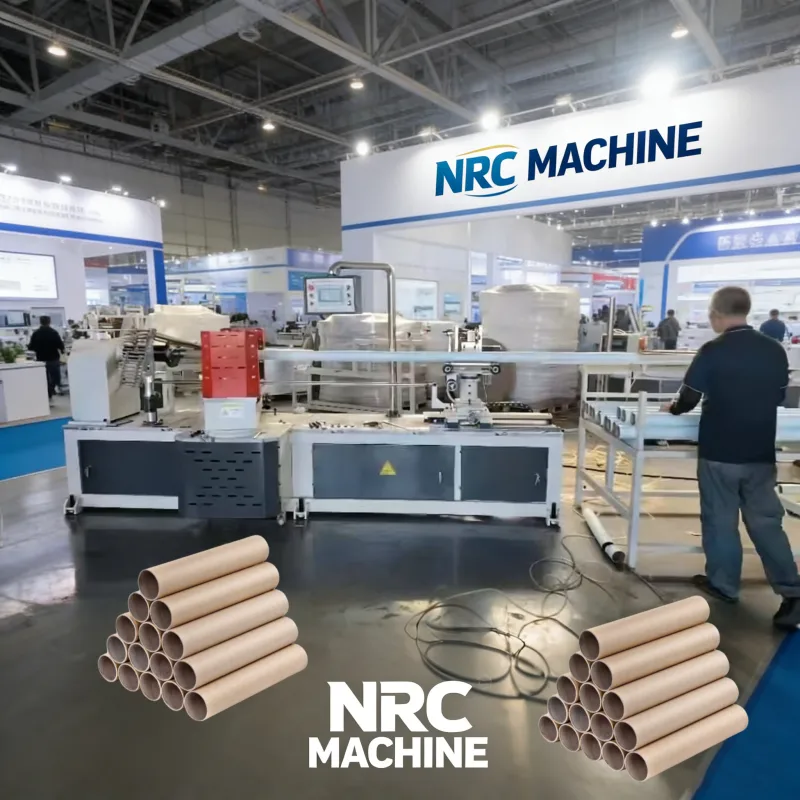

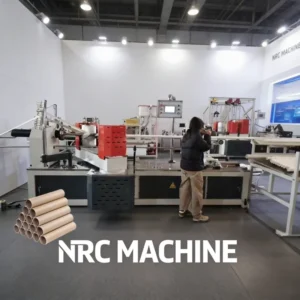

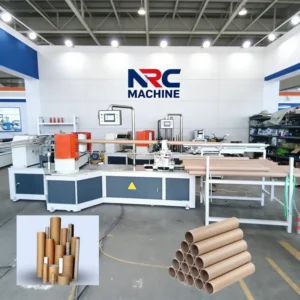

Introduction to the Two Heads Paper Tube Making Machine
In the evolving world of packaging and industrial manufacturing, automation and precision are key drivers of efficiency. One machine that stands out in this domain is the Two Heads Paper Tube Making Machine, also known as the Two Heads CNC Spiral Paper Tube Machine. Designed for high-efficiency, consistent output, and minimal human intervention, this machine has revolutionized how paper tubes are produced for industries ranging from textiles and printing to construction and logistics.
Manufactured by NRC MACHINE (Qingdao New Richuan Precision Machine Co., Ltd), this advanced equipment combines cutting-edge technology with robust engineering to deliver superior performance. Whether you’re producing cores for plastic films, paper rolls, or textile yarns, the paper tube making machine offers a reliable, scalable solution.
Key Features and Technical Specifications
The Two Heads CNC Spiral Paper Tube Machine is engineered with precision and versatility in mind. Below are its core technical parameters:
- Inner Diameter Range: 20–150 mm
- Wall Thickness of Paper Tube: 1–10 mm
- Production Speed: 0–40 meters per minute (adjustable)
- Control System: CNC Controller (Delta Brand)
- Drive System: Servo Motor Driver
- Configuration: Dual-head design for simultaneous or independent operation
The dual-head setup allows for increased productivity—two tubes can be wound at the same time, or different specifications can be produced independently, maximizing flexibility for small-batch or custom orders.
The integration of a Delta brand CNC controller ensures precise control over winding speed, tension, and diameter, while the servo motor driver delivers smooth, responsive performance with minimal energy loss. This level of automation reduces material waste and operator error, making the paper tube making machine ideal for modern smart factories.
How the Two Heads Paper Tube Making Machine Works
The machine operates on a spiral winding principle. Here’s a simplified breakdown of the process:
- Material Feeding: Kraft paper or other suitable paper rolls are loaded onto the unwinding stands.
- Gluing & Heating: The paper passes through a glue applicator and heating system to activate adhesive.
- Mandrel Winding: The paper is wound around a precision mandrel in a spiral pattern, with each layer overlapping slightly.
- Dual-Head Operation: With two winding heads, the machine can produce two tubes simultaneously, significantly boosting output.
- Cutting & Ejection: Once the desired length and thickness are reached, the tube is automatically cut and ejected.
The entire process is managed via the CNC controller, allowing operators to save presets for different tube dimensions, reducing changeover time and improving repeatability.
Advantages of Using a CNC-Controlled Paper Tube Making Machine
Investing in a Two Heads CNC Spiral Paper Tube Machine offers numerous benefits:
- High Efficiency: Dual-head design doubles output without doubling floor space or energy use.
- Precision Engineering: CNC control ensures consistent inner diameter and wall thickness (1–10 mm), meeting tight industrial tolerances.
- User-Friendly Interface: The Delta CNC system features a touch screen interface, making it easy to program and monitor production.
- Low Maintenance: Built with durable components and sealed drive systems, the machine requires minimal downtime.
- Scalability: Suitable for both small workshops and large-scale production lines.
Moreover, the paper tube making machine supports a wide range of inner diameters (20–150 mm), making it adaptable for various applications—from narrow cores for labels to large-diameter tubes for industrial linings.
Applications Across Industries
The versatility of the Two Heads Paper Tube Making Machine makes it indispensable in multiple sectors:
- Packaging Industry: For producing cores used in adhesive tapes, films, and laminates.
- Textile Manufacturing: Cardboard tubes for yarn and thread winding.
- Printing & Publishing: Core components for paper rolls in printing presses.
- Construction Materials: Tubes used as formwork or protective sleeves.
- Recycling Sector: Producing eco-friendly paper cores as alternatives to plastic.
With rising demand for sustainable packaging, paper tubes are gaining popularity—and machines like this from NRC MACHINE are enabling businesses to meet that demand efficiently.
Why Choose NRC MACHINE’s Two Heads CNC Spiral Paper Tube Machine?
Qingdao New Richuan Precision Machine Co., Ltd (NRC MACHINE) is a trusted name in precision machinery manufacturing. Their commitment to quality, innovation, and customer support sets them apart.
Key reasons to choose their Two Heads Paper Tube Making Machine include:
- Advanced Automation: Servo-driven systems and CNC control for unmatched precision.
- Global Compliance: Machines meet international safety and performance standards.
- After-Sales Support: Installation guidance, training, and technical support available worldwide.
- Customization Options: Available with optional features like auto-stacking, enhanced drying systems, or multi-layer glue application.
Backed by years of R&D and real-world feedback, NRC MACHINE delivers reliability you can count on.
