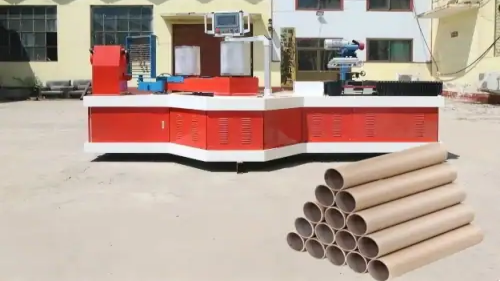

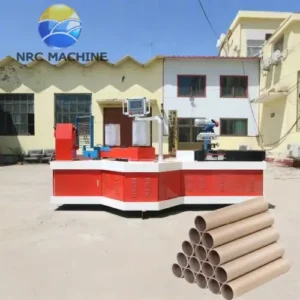

NRC150C Small Cardboard Tube Making Machine

1.Introduction to NRC150C Small Cardboard Tube Making Machine

The Small Cardboard Tube Making Machine is a compact, efficient, and versatile piece of equipment. It could achieve the production of high-quality paper tubes. It is also named paper tube making machine.

This machine could make cardboard tubes with an inner diameter ranging from 20 to 150 mm and a wall thickness adjustable between 1 and 10 mm. It is ideal for manufacturing tubes used in packaging, textile cores, adhesive tapes, and various industrial applications. Its compact design makes it suitable for small to medium-scale enterprises.

2.Key Specifications and Capabilities of This Cardboard Tube Making Машина

This cardboard tube making machine supports a wide range of tube dimensions, allowing flexibility in production. The adjustable inner diameter (20–150 mm) and paper wall thickness (1–10 mm) enable customization according to the requirements of  special customers. It accommodates various types of paper materials, including kraft paper, coated paper, and specialty papers, ensuring compatibility with diverse industrial needs. The single-cutter configuration ensures clean, precise cuts, maintaining consistent tube length and edge quality.

3.Machine Design and Operation

Featuring a user-friendly layout, the machine integrates unwinding, gluing, rolling, and cutting processes into a seamless workflow.Automatically feed the paper roll through a precision unwinding unit.Then the machine could apply adhesive glue on the paper tape before winding it around a mandrel. The rolling mechanism ensures uniform pressure, resulting in sturdy, well-formed tubes. After curing, the machine will cut cardboard tubes into the desired length using the single cutter.Of course,our machine could adjust the cutter for different lengths with high accuracy.

4.Advantages and Applications

Despite its compact size, this cardboard tube making machine delivers consistent output and excellent tube strength. It is energy-efficient, easy to operate, and requires minimal maintenance. The single-cutter design reduces complexity, making it ideal for beginners or operations with moderate production volumes. Common applications include cores for films, labels, textiles, and protective packaging.

В итоге Small Cardboard Tube Making Machine offers a cost-effective, reliable solution for producing customizable paper tubes.And it could combine flexibility, precision, and ease of use in one compact system.

5.Technical Parameter of NRC150C cardboard tube making machine
