Tam Otomatik Toilet Paper Machine 1880mm Price: Complete Production Line Guide for 2026

1.Introduction: What Is a Full Automatic Toilet Paper Machine?

A tuvalet kağıdı makinesi is industrial equipment designed to convert large ebeveyn kağıt mendil ruloları into finished small toilet paper rolls ready for consumer use.

O tuvalet kağıdı makinesi transforms raw parent tissue through a series of automated processes including rewinding, perforating, cutting, and packaging.

This comprehensive guide focuses on the Tam Otomatik Tuvalet Kağıdı Makinesi 1880 mm Fiyatı and specifications, providing manufacturers and investors with authoritative information to make informed purchasing decisions.

2.What Is Included in This Complete Production Line?

Tam otomatik tuvalet kağıdı makinesi production line from NRC MACHINE consists of three integrated systems working in harmony:

Total FOB Price: $24,500 – $26,000 USD

This competitive pricing positions the NRC1880 model as an excellent investment for both emerging and established tissue paper manufacturers.

3.Technical Specifications of the NRC1880 Model

The following table presents the complete technical parameters of this tuvalet kağıdı makinesi:

4.Advanced Technology Features

4.1 PLC Computer Programming Technology

O tuvalet kağıdı makinesi utilizes international advanced PLC (Programmable Logic Controller) computer programming technology with the following capabilities:

• Variable Frequency Speed Control:Adjusts operating speed for optimal performance
• Automatic Electronic Braking:Ensures precise stopping and safety
• Touch-Screen Human-Machine Interface:Intuitive operation for operators of all skill levels
• Coreless Rewinding System:Eliminates the need for traditional paper cores during production

4.2 Automated Production Processes

NRC1880 tuvalet kağıdı makinesi performs the following operations automatically:

1. Automatic Paper Loading– Pneumatic cylinder system feeds parent rolls
2. Tam Kabartma– Rubber-to-steel embossing for premium texture
3. Perforation (Dotted Line)– Spiral perforating knife creates easy-tear lines
4. Geri Sarma– Forms long rolls in toilet paper format
5. Edge Trimming– Automatic trimming replaces traditional water-line methods
6. Gluing & Tail Sealing– Synchronized application with 10mm–20mm tail for easy opening
7. Finished Product Ejection– Automatic discharge and immediate reset

4.3 Key Innovation: Zero Paper Tail Loss

Geleneksel tuvalet kağıdı makinesi systems waste material during the tail-sealing process. The NRC1880 introduces new edge-trimming and tail-gluing technology that:

• Leaves 10mm–20mm of paper tailfor consumer convenience
• Eliminates paper tail waste entirely
• Reduces production costs significantly

4.4 Gerginlik Kontrol Sistemi

The PLC system manages tension during rewinding with a tight-to-loose pattern:

• Prevents core separation during long-term storage
• Maintains roll integrity from production to consumer use
• Extends product shelf life

5.Machine Construction and Durability

This robust construction ensures exceptional stability during high-speed operation, minimizing vibration and extending machine lifespan.

6.Üretici Bilgileri

Şirket: NRC MACHINE (Qingdao New Richuan Precision Machine Co., Ltd.)
Web sitesi: https://nrcmachine.com
E-posta: james@nrcmachine.com
İletişim: +86 15254213289

NRC MACHINE specializes in precision tuvalet kağıdı makinesi manufacturing with extensive experience in tissue processing equipment. The company provides comprehensive technical support, installation guidance, and after-sales service for international clients.

7.Why Choose the NRC1880 Full Automatic Toilet Paper Machine?

7.1 Maliyet Verimliliği

• Rekabetçi Tam Otomatik Tuvalet Kağıdı Makinesi 1880 mm Fiyatıat $24,500–$26,000 FOB
• Zero paper tail loss reduces raw material consumption
• Low power requirement (7.5 kW) minimizes energy costs

7.2 Production Flexibility

• Adjustable roll size, softness, and paper tube functions
• Accommodates 2–3 ply raw materials
• Suitable for various wood pulp paper grades (14–23 g/㎡)

7.3 Operasyonel Avantajlar

• Detachable paper frame from main machine head for easy maintenance
• Automatic paper tube loading function
• Pneumatic control system for smooth operation

8.Sıkça Sorulan Sorular (SSS)

Q1:What is the production capacity of this toilet paper machine?

A1:The NRC1880 tuvalet kağıdı makinesi operates at Dakikada 200 metre. Actual daily output depends on roll specifications and operating hours, but typical production ranges from 1.5 to 2 tons per shift.

Q2:What is included in the $24,500–$26,000 price?

A2:The quoted Tam Otomatik Tuvalet Kağıdı Makinesi 1880 mm Fiyatı içerir:

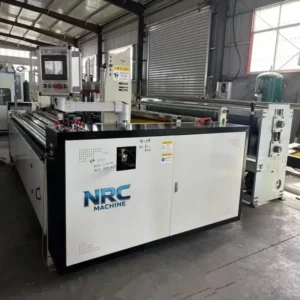

• 1880mm rewinder with full embossing

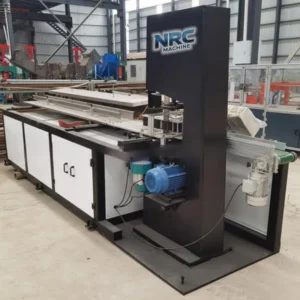

• Otomatik şerit testere kesici

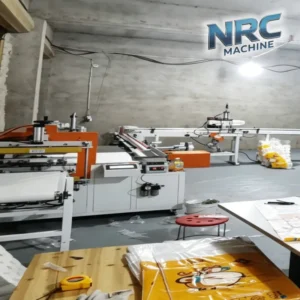

• Automatic multi-roll packaging machine
• CNC controller and PLC system
• Standard export packaging

Shipping, installation, and training are quoted separately based on destination.

Q3:What raw materials does this toilet paper machine require?

A3:The NRC1880 processes 2–3 ply parent tissue paper rolls with:

• Basis weight: 14–23 g/㎡
• Width: approximately 1880mm
• Maximum diameter: 1300mm
• Core: 3″ (76.2mm)

Wood pulp-based tissue is recommended for optimal results.

Q4:How does the automatic tail sealing work?

A4:The tuvalet kağıdı makinesi uses advanced PLC-controlled gluing and sealing:

• Applies adhesive automatically during rewinding
• Creates 10mm–20mm paper tail for easy consumer opening
• Synchronizes edge trimming, gluing, and sealing in one operation
• Eliminates traditional water-line trimming and associated waste

Q5:What technical support does NRC MACHINE provide?

A5:NRC MACHINE offers:

• Pre-sale consultation and factory layout planning
• Machine installation and commissioning guidance
• Operatör eğitim programları
• Yedek parça tedariği
• Technical troubleshooting support
• Video and remote assistance

Q6:Is the machine suitable for new tissue manufacturing businesses?

A6:Yes. The NRC1880 tuvalet kağıdı makinesi için idealdir:

• Start-up tissue paper converting businesses
• Small to medium-scale manufacturers expanding capacity
• Investors entering the hygiene products market
• Existing manufacturers upgrading from semi-automatic equipment

The intuitive touch-screen interface and automated functions require minimal operator experience.

Q7:What electrical requirements are needed?

A7:Three-phase industrial power supply is required. Voltage converters can be provided for regions with different standards.

And one set of air compressor is used for supplying air power.

Q8:How does the embossing function work?

A8:The NRC1880 features rubber-to-steel embossing:

• Creates premium texture patterns on tissue surface
• Enhances product softness perception
• Improves consumer appeal
• Adjustable pressure settings for different patterns

9.Çözüm

O Tam Otomatik Tuvalet Kağıdı Makinesi 1880 mm Fiyatı . $24,500–$26,000 from NRC MACHINE represents exceptional value in the tissue processing equipment market. With advanced PLC control, zero-waste tail sealing technology, and robust construction, this tuvalet kağıdı makinesi production line delivers reliable performance for manufacturers at every scale.
