Introduction

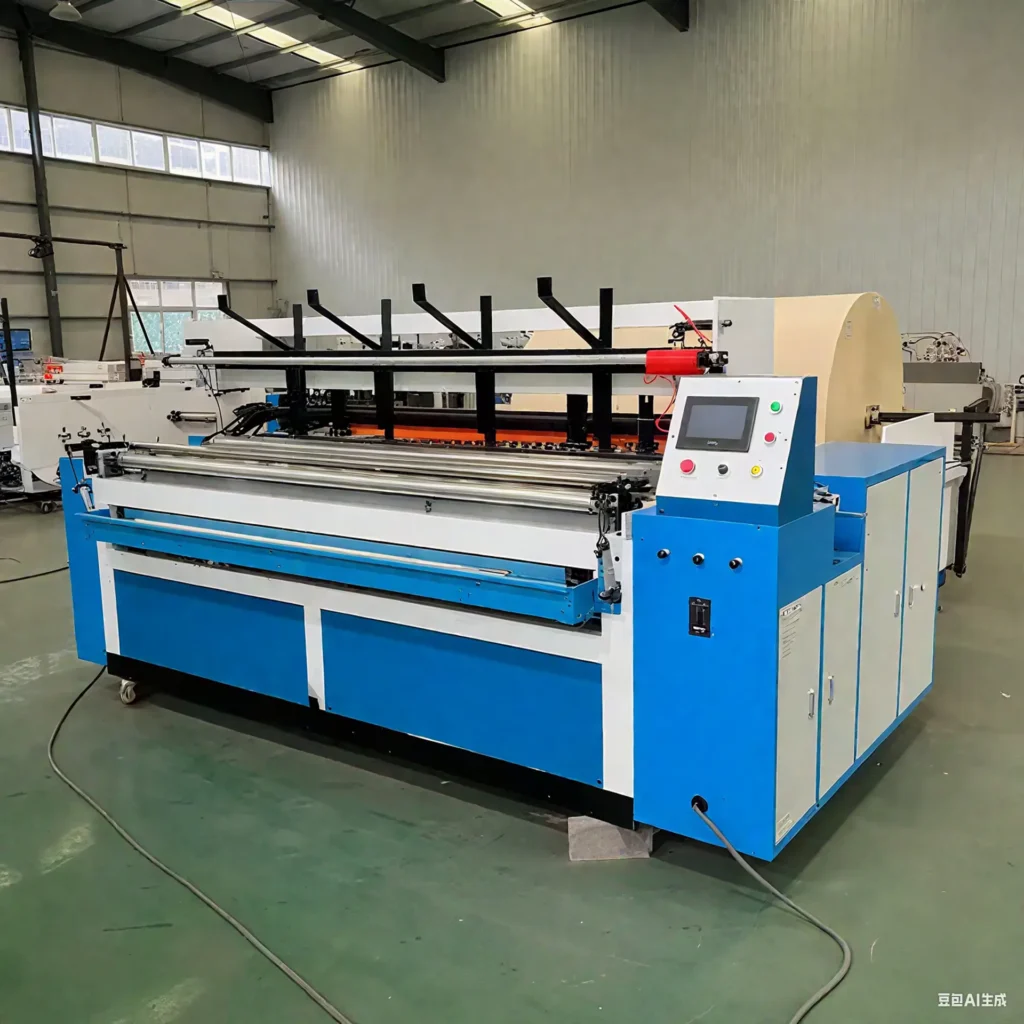

Le Machine de fabrication de rouleaux de papier hygiénique entièrement automatique is a high-efficiency, intelligent production equipment designed for large-scale and small-batch manufacturing of toilet tissue rolls.
As a professional full automatic toilet tissue paper roll making machine, it integrates multiple functions such as jumbo roll unwinding, embossing, gluing lamination, perforating, rewinding, automatic core loading, tail gluing, and edge trimming, realizing the entire production process from raw material to finished product with full automation.
This greatly reduces manual intervention, improves production efficiency and product quality.At the same time,it could make it a cost-effective toilet tissue making machine widely used in paper processing factories, daily necessities manufacturers. It is also an ideal equipment for investing in the toilet tissue processing industry, helping investors gain stable profits with high-efficiency production.
Core Features & Advantages
Full Automation & Labor Saving
As a top-grade full automatic toilet tissue paper roll making machine, it realizes full automation from jumbo roll feeding to finished product unloading, requiring only 1 operator for simple supervision—replacing 3-4 manual workers needed for semi-automatic equipment. It saves a lot of labor costs, avoids efficiency reduction caused by manual fatigue, and ensures continuous production for your ligne de production de papier hygiénique.
Efficacité élevée de la production
Equipped with advanced PLC control system and independent motor frequency conversion drive, our automatic toilet paper machine runs stably at a speed of 180-250 m/min. The 8-hour production capacity can reach 2-5 tons, which can easily meet the needs of large orders such as supermarket supply and wholesale, solve the problem of delayed delivery in peak seasons, and maximize the productivity of your toilet tissue manufacturing[4][6].
Stable Product Quality
The precision control system of our full automatic toilet tissue roll making machineensures consistent parameters such as paper tension, perforation spacing, and finished roll diameter. The steel-to-rubber embossing roller realizes clear embossing and soft hand feel, and the cutting surface is flat without burrs—effectively reducing the defective rate, improving customer repurchase rate, and enhancing the competitiveness of your toilet tissue products[3][4].
Paramètres techniques
| Paramètre technique | |
| Modèle | NRC2200 |
| Papier brut applicable | 2-3 plis 14~23g/m² |
| Produit fini | Papier toilette avec/sans mandrin |
| Largeur du papier brut | Max 2000 mm |
| Diamètre du papier brut | Max1300mm |
| Dimensions finales | Φ60~120 mm |
| Diamètre du noyau fini | Φ35mm-Φ50mm |
| Diamètre du noyau de papier brut | 3”(76,2 mm) |
| Perforation | Couteau de perforation en spirale, positionnement de la roue à chaîne |
| Vitesse de production | 200 m/min |
| Pouvoir | 12kw |
| Conception paramétrique | Écran tactile LCD |
| Contrôle | PLC |
| Alimentation en papier | 3 dérouleurs, commandés par pneumatique |
| Pression atmosphérique | 0,5 Mps |
| Pouvoir | 380V, 50hz |
Processus De Production
The entire production process is fully automated, with clear steps and smooth operation, ensuring continuous and efficient production:
- Déroulement de rouleaux géants: Place the large jumbo roll on the unwinding stand, which is controlled by pneumatic pressure to ensure stable and smooth paper feeding without paper jams[6].
- Embossing: The paper passes through the embossing unit (steel-to-rubber or steel-to-steel embossing), which can realize single or double embossing, increasing the softness and aesthetics of the toilet paper.
- Glue Lamination: Adopt dot-by-dot lamination or decorative embossing lamination technology to bond multi-ply paper firmly without affecting the softness of the paper.
- Perforating: Use circular soft knives for spiral perforation, with accurate positioning and uniform spacing, making the toilet paper easy to tear and not easy to break.
- Rembobinage: The perforated paper is rewound into rolls of preset diameter by the rewinding unit, with adjustable tightness to ensure the consistency of finished products.
- Automatic Core Loading & Tail Gluing: Automatically load the paper core, and complete tail gluing and edge trimming at the same time, realizing automatic core replacement without stopping the machine.

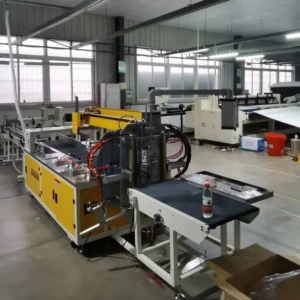

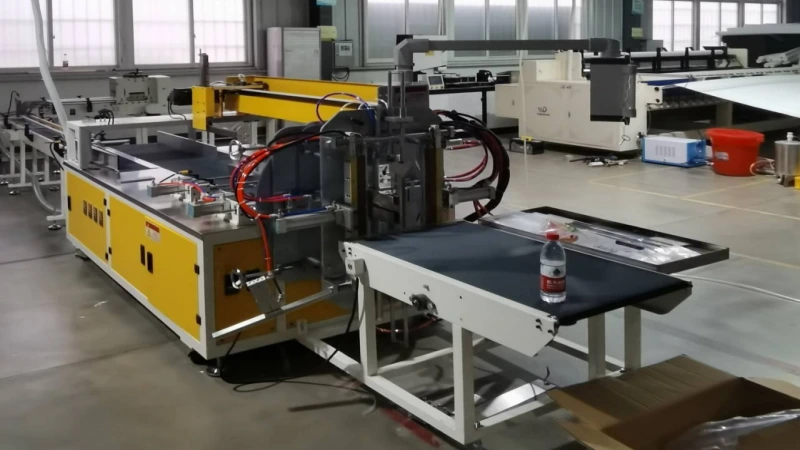

- Finished Product Unloading: The finished toilet paper rolls are automatically pushed out, which can be directly connected to the automatic packaging machine for subsequent packaging, forming a complete production line.
Product Application
Le présent Machine de fabrication de rouleaux de papier hygiénique entièrement automatique is a professional toilet tissue production equipment.It is suitable for processing various raw papers (wood pulp paper, bamboo pulp paper, degradable paper, etc.) into high-quality toilet tissue rolls. As a reliable full automatic toilet tissue paper roll making machine manufacturer, we ensure our equipment is widely used in:
- Large-scale paper processing factories and daily necessities manufacturing enterprises
- Small and medium-sized processing plants, rural wholesale, county-level supply channels
- Investment projects for returning home to start a business, with low investment and quick return
- Customized production of toilet paper for hotels, supermarkets, convenience stores, and households
Price & After-Sales Service
The price of the machine ranges from USD 10,000to USD 80,000, depending on the model, configuration, and customization requirements (the specific price is subject to the quotation). We provide comprehensive after-sales service to ensure worry-free use for customers:
- Provide installation videos and on-site technical support (optional) to help customers complete equipment installation and commissioning quickly.
- 1-year quality warranty, free replacement of wearing parts within the warranty period (excluding man-made damage).
- Provide lifelong technical guidance and parts supply, and respond to maintenance needs in a timely manner.
- Support customized design according to customer’s production needs, such as adjusting the width of raw paper, production speed, and product specifications.
Why Choose Us?
As a professional manufacturer of paper product making machinery, LE CNRC MACHINE have rich production experience and mature technical strength in producing full automatic toilet tissue paper roll making machine. Our full automatic toilet tissue paper roll making machine has the advantages of stable performance, high efficiency, energy saving, and easy operation.
We adhere to the principle of “quality first, customer first”, provide competitive prices and high-quality services, and help you achieve efficient and profitable toilet tissue manufacturing in the toilet paper processing industry.
