Aperçu du produit

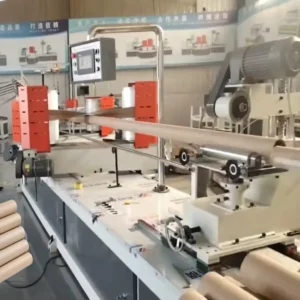

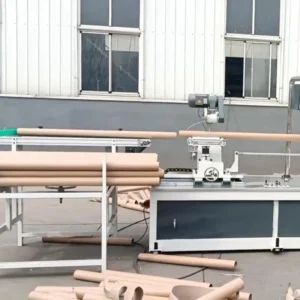

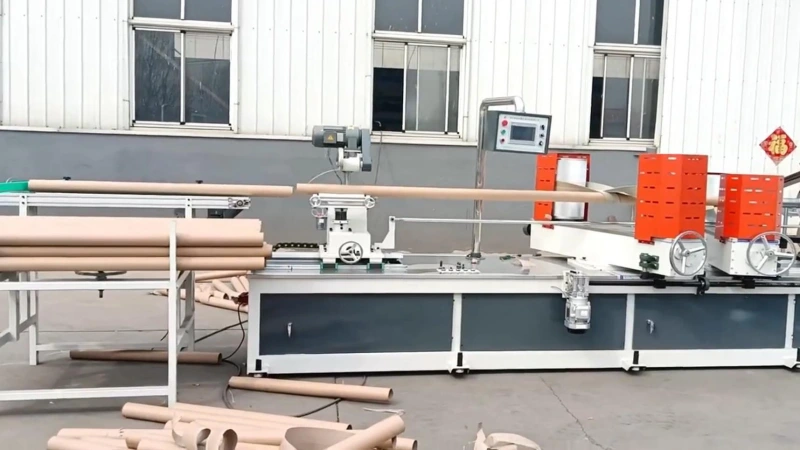

Le Machine de fabrication de tubes en papier-carton, développé par LE CNRC MACHINE, represents a pinnacle of innovation and precision in the packaging and paper processing industry. Designed for full automation, this advanced machinery efficiently produces high-quality paper and cardboard tubes with consistent dimensional accuracy and superior structural integrity.
Ideal for applications in textiles, printing, paper converting, and industrial packaging, this machine delivers unmatched performance and reliability.
Key Specifications of NRC200C Paper Cardboard Tube Making Machine
| Paramètres techniques | Système de contrôle | ||
| Number of winding paper layers | 3-21 layers | Contrôleur PLC | Marque Delta |
| Diamètre maximal de la bobine | 200mm | IHM | Écran tactile couleur |
| Diamètre minimal de la bobine | 30 mm | Version du programme | HT/4.0 |
| Épaisseur maximale de la bobine | 15 mm | Convertisseur de fréquence | Shenzhen EasyDrive |
| Épaisseur minimale de la bobine | 1mm | Actionneurs (contacteurs, etc.) | Produits chinois Chint |
| Méthode de fixation du moule à noyau | serrage de la bride | Composants de signal (commutateurs photoélectriques, etc.) | Produits Omron |
| Tête d'enroulement | Deux têtes, une ceinture | Composants pneumatiques | Produits Hengyi |
| Méthode de découpe | Coupe à une seule lame | Moteur de réglage de l'angle | Cazenove |
| Méthode de collage | Collage simple/double face | Contrôle synchrone | Vis du servo de l'axe X |
| Méthode à longueur fixe | longueur d'impulsion fixe de l'encodeur | Système de coupe de tubes à suivi synchrone | Coupe multi-couteaux à suivi servo-synchrone |
| Nombre d'opérateurs | 1 à 2 personnes | ||
| Vitesse du dévidoir | 3-30 m/min | Équipé de matériel | |
| Puissance d'entrée | 380V triphasé quatre fils personnalisable | Rack à tubes automatique | avoir |
| Dimensions standard | Diagonale de la ceinture | électrique | |
| Taille de l'hôte : longueur × largeur × hauteur | 4500mm × 1800mm × 1750mm | Réglage de la tension de la courroie | Ajustement automatique |
| Surface au sol : longueur × largeur | 18m × 8m | Angle de pivotement du cadre principal | automatique |
| Hauteur du moyeu | 400mm | Alimentation automatique en colle | Pompes pneumatiques à membrane |
| Empattement minimum | 750mm | Lubrification automatique de la bande de papier | automatique |
| Empattement maximal | 950 mm | Réglage de la tension | Réglage mécanique |
| Masse totale | 3200kg | Type de support papier | Porte-papier |
| surveiller le taux | 15 KW | Accessoires inclus | |
| Vitesse de rotation des roues | 47r/min | Mandrin d'enroulement de tube | 1 jeu. |
Core Features & Technological Advantages
Full Automation for Enhanced Efficiency:From paper feeding and gluing to winding, shaping, and cutting, the entire process is fully automated, minimizing manual intervention and maximizing productivity. The system ensures consistent tube quality with minimal waste.
Precision CNC Control System:Equipped with an intelligent CNC controller, the machine allows for precise parameter setting, real-time monitoring, and easy operation. Users can store multiple production profiles for quick changeovers between different tube specifications.
High-Performance Servo Motor Drive:The integration of a servo motor driver ensures smooth, responsive, and energy-efficient operation. It enables accurate speed control and synchronization across all mechanical components, even at variable speeds.
Wide Range of Customization:With an adjustable inner diameter (30–200 mm) and thickness (1–15 mm), the machine supports the production of a diverse array of tubes—ranging from lightweight core tubes to heavy-duty industrial cores.
Robust Construction & Durability
Built with high-grade components and a heavy-duty frame, the machine ensures long-term stability and resistance to wear, even under continuous operation in demanding industrial environments.
Interface conviviale
The intuitive HMI (Human-Machine Interface) simplifies operation, allowing operators to monitor production status, adjust settings, and diagnose issues with ease. Multilingual support enhances global usability.
Safety & Compliance
Designed in accordance with international safety standards, the machine includes emergency stops, protective enclosures, and safety interlocks to ensure operator protection during operation.
Applications of NRC200C Paper Cardboard Tube Making Machine
This machine is widely used across various industries, including:
- Industrie textile :For weaving bobbins and yarn tubes
- Printing & Paper Converting:Core materials for labels, films, and laminates
- Industrie de l'emballage :Cardboard tubes for gift wraps, posters, and protective packaging
- Fabrication industrielle :Carrier cores for tapes, foils, and technical textiles
Pourquoi choisir LE CNRC MACHINE?
Qingdao New Richuan Precision Machine Co, Ltd. is a trusted leader in precision machinery manufacturing, combining cutting-edge technology with rigorous quality control. With years of R&D experience, LE CNRC MACHINE delivers equipment that meets global standards for performance, durability, and innovation.
Notre Machine de fabrication de tubes en papier-carton reflects our commitment to excellence—offering clients a future-proof solution that reduces labor costs, improves output, and enhances product consistency.
Technical Support & After-Sales Service
LE CNRC MACHINE provides comprehensive support, including:
- On-site installation and commissioning
- Operator training and technical guidance
- Remote diagnostics and maintenance support
- Spare parts supply and lifelong service
We stand behind every machine with a warranty and a responsive customer service team dedicated to minimizing downtime and maximizing your return on investment.
Conclusion
The NRC MACHINE Machine de fabrication de tubes en papier-carton is more than just equipment—it’s a smart, scalable solution for modern manufacturing demands. With its full automation, precision engineering, and flexible production capabilities, it empowers businesses to stay competitive in a rapidly evolving market.
Choisir LE CNRC MACHINE—where precision meets performance.
For inquiries, quotations, or product demonstrations, contact Qingdao New Richuan Precision Machine Co, Ltd. aujourd'hui.
