NRC200 CNC Four‑Heads Spiral Paper Tube Winder Machine For Mexico Market
1. Overview
Spiral paper tube winder machine is an industrial device dedicated to paper tube forming and cutting, widely deployed across textile, packaging, chemical fiber and plastic industries. It is also named 나선형 종이 튜브 제조기.
Qingdao New Richuan Precision Machine Co., Ltd (NRC MACHINE) is a reliable manufacturer of this category of machinery. Its spiral paper tube winder machine supports multi‑specification paper‑core manufacturing and has been exported to Southeast Asia, Europe and America markets.
Mexico stands out as a fast‑growing emerging market with a well‑developed packaging sector. Benefiting from global industrial transfer, Mexico creates huge market demand for high‑performance spiral paper tube winder machine imported from Chinese machinery suppliers. The NRC200 CNC Four‑Heads Spiral Paper Tube Winder Machine is purpose‑built to satisfy local manufacturing requirements in Mexico.
2. 제품 소개
2.1 Core Configuration & Main Components

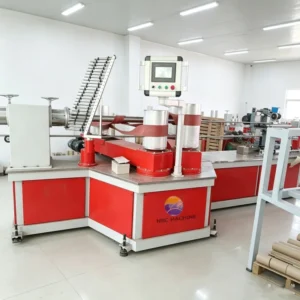

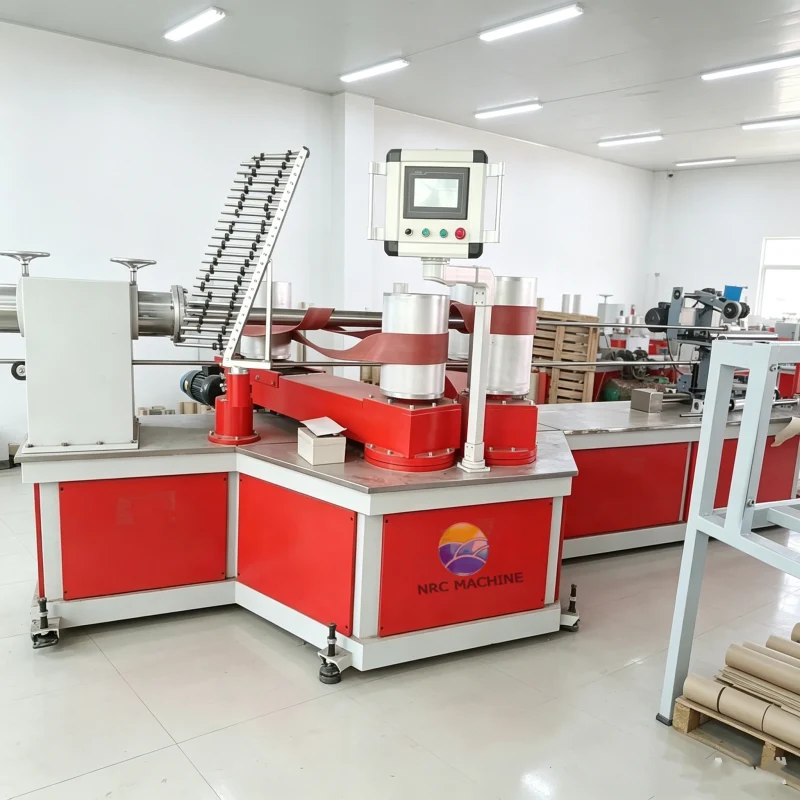

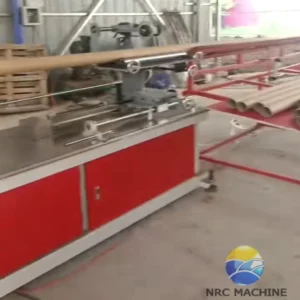

The NRC200 unit consists of multiple modular assemblies: main machine host, finished paper tube drop rack, base paper stand, glue station and raw paper holder.

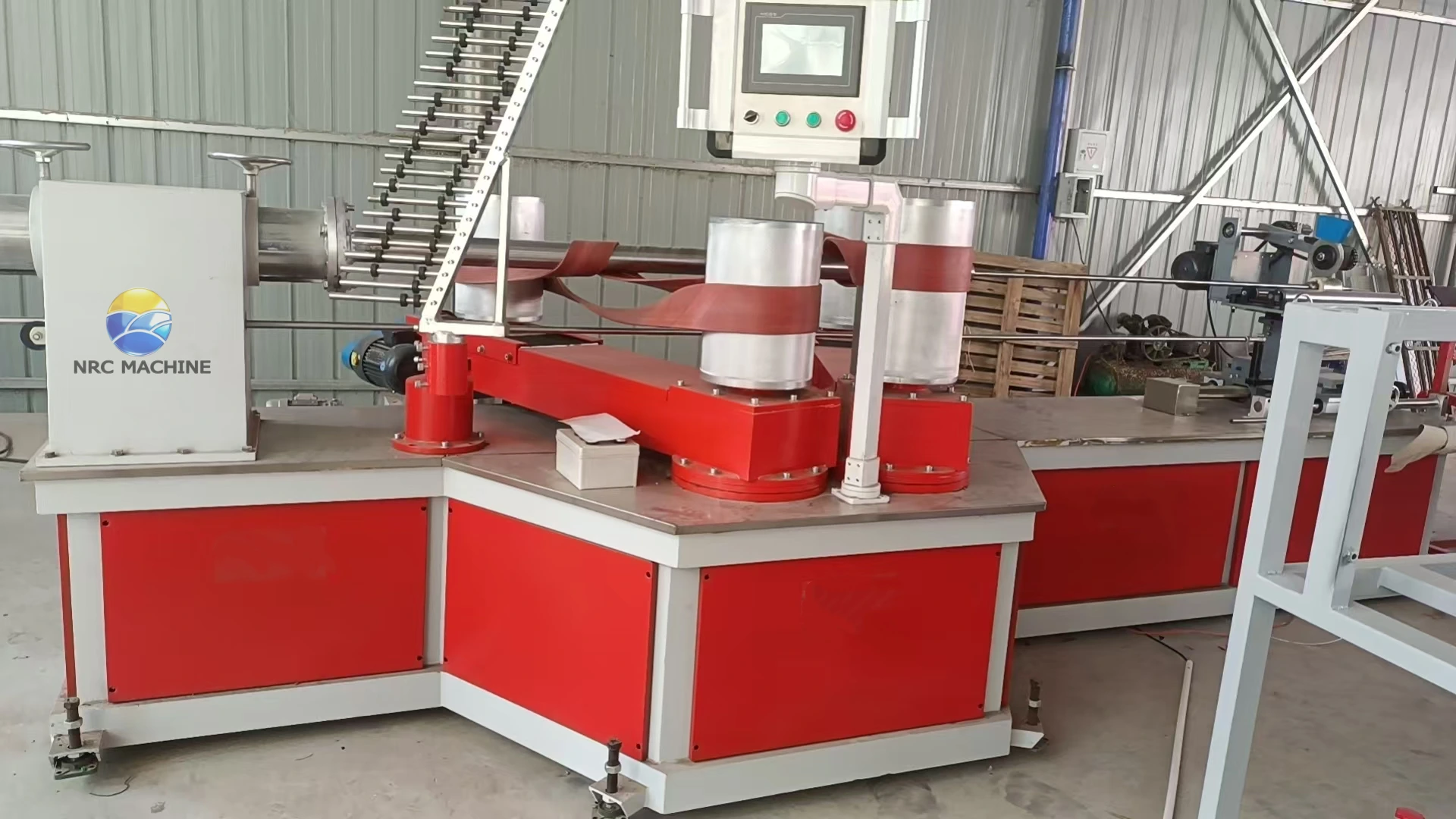

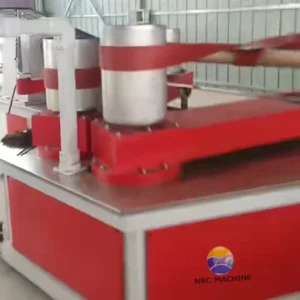

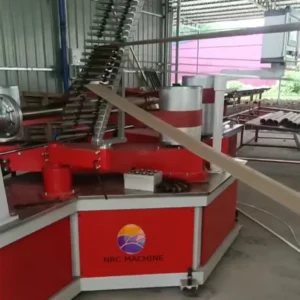

- Main Host Unit Equipped with four winding heads running with two canvas belts, fully operated via CNC control panel. Operators set production parameters on the color touch‑screen for automatic forming and auto cutting; paper tube length is digitally defined within the CNC system. Servo‑motor driven design delivers faster running speed and superior cutting accuracy. The working surface is fully wrapped with stainless steel for anti‑corrosion performance and extended service lifespan.
- Base Paper Stand Fitted with a meter counter which communicates real‑time data with the CNC controller, serving as a critical component for length‑measurement precision.

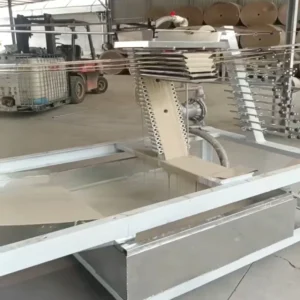

- Glue Station Constructed with air pump and stainless‑steel glue basin. It features automatic glue filtration and cyclic glue recycling to lower raw‑material consumption and material waste.

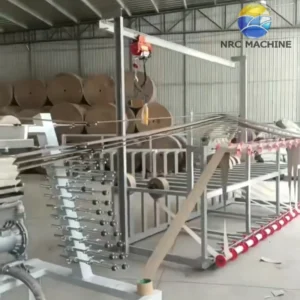

- Raw Paper Holder Multi‑layer integrated paper holder structure, matched with small overhead hoist for convenient loading and moving jumbo paper rolls.
2.2 Key Functional Advantages
- Dual infrared sensors guarantee high‑precision cutting position detection
- Frequency‑conversion speed regulation realizes 30%‑60% energy saving
- Single servo circular non‑resistance disc cutter delivers neat, burr‑free tube incision
- Positioning collar adjusting lever minimizes mechanical shaking during cutting process
- Paper‑shortage auto‑stop module; operating noise below 65dB
- Stainless‑steel glue trough and wear‑resistant structural parts for heavy‑duty operation
- Multi‑layer safety alarm triggers and emergency auto‑stop mechanism, compliant with wet‑cut paper‑tube production standards and balanced stress winding requirements
- Optional dual‑cutter configuration for boosted production throughput
3. Technical Specifications
3.1 핵심 기술 파라미터
항목 | 매개변수 값 |
말아진 종이의 최대 층 수 | 25 Layers |
Max inner diameter of finished tube | 250 mm |
Min inner diameter of finished tube | 30 mm |
최대 튜브 벽 두께 | 15 mm |
최소 튜브 벽 두께 | 1 mm |
Mold fixing mode | 플랜지 조임 |
Winding head setup | 4헤드 및 더블 벨트 |
커팅 모드 | Single servo single circular cutter non‑resistance cutting |
접착 옵션 | 단면 접착 / 양면 접착 |
Fixed‑length control | 인코더 펄스 고정 길이 |
생산 라인 속도 | 0 ~ 30 meters/min |
입력 전원 공급 장치 | 380V three‑phase four‑wire or customized |
3.2 Dimension & Weight Data
항목 | 매개변수 값 |
Main host outer dimension | 4500 mm × 2000 mm × 1950 mm |
워크숍 전체 바닥 면적 점유율 | 20 m × 10 m |
허브 설치 높이 | 400 mm2,500 mm2 |
Min track width | 750 mm |
Max track width | 950 mm |
기계 총 중량 | 5,200 kg |
3.3 드라이브 시스템
항목 | 매개변수 값 |
주 호스트 전원 | 11 킬로와트 |
Angle adjustment motor power | 5 KW |
허브 회전 속도 | 47 r/min |
허브 출력 토크 | 2960 N·m |
Transmission structure | 합금 나선형 베벨 기어 변속기 |
Hub driving pattern | Four‑wheel drive |
Cutting knife driving unit | 기어 모터 |
3.4 Control System Hardware
구성 요소 | 브랜드 |
PLC 컨트롤러 | 대만 델타 |
HMI Color Touch Screen | HT/4.0 program version |
Frequency Inverter | 대만 델타 |
Contactor & low‑voltage executive components | 중국 친트 |
Photo‑electric signal sensors | Omron |
Pneumatic fittings | Hengyi |
각도 조절 모터 | Cazenove |
동기식 모션 제어 | X축 서보 나사 |
절단 시스템 | 서보 동기식 트래킹 커팅 |
3.5 Built‑in Equipment Features
기능 | 상태 |
Automatic drop‑paper‑tube rack | 포함됨 |
벨트 대각선 조정 | 전동 조절 |
Canvas belt tension setting | 기계적 조정 |
호스트 스윙 각도 | Optional configuration |
Automatic glue feeding | 공압식 다이어프램 펌프 |
Automatic paper‑tape lubrication supply | Auto operation |
Raw material tension fine‑tune | 기계적 조정 |
Paper holder construction | 일체형 종이 홀더 |
Winding transmission belt | 캔버스 벨트 |
3.6 Standard Supplied Spare Parts
Spare Part Name | 수량 |
Winding core mandrel | 1세트 |
Winding canvas belt | 1세트 |
Installation & application tools | 전체 세트 포함 |
4. Manufacturer Information
- 제조업체: NRC 기계 (칭다오 신리천 정밀 기계 유한공사)
- WhatsApp / Phone: +86 15254213289
- E‑mail: james@nrcmachine.com
- 공식 웹사이트: https://nrcmachine.com
5. FAQs
Q1: Which finished paper tube products can the NRC200 four‑heads spiral paper tube winder machine produce?
A1: It manufactures spiral paper cores for packaging tape, textile DTY/POY yarn tubes, industrial cardboard tubes, and paper cores for kitchen towel & toilet paper rolls, matching mainstream application requirements in Mexico’s packaging and textile industries.
Q2: Is the NRC200 spiral paper tube winder machine adaptable for local Mexican power grid?
A2: Standard input is 380V three‑phase four‑wire power. Custom‑voltage configuration is available according to Mexico local industrial power conditions upon request.
Q3: What after‑sales support can NRC MACHINE offer for clients in Mexico?
A3: NRC MACHINE provides technical documentation, remote CNC operation guidance, spare‑parts supply, and online troubleshooting service. On‑site technician support can be negotiated for large‑volume orders.
Q4: Can I adjust paper‑tube wall thickness and inner diameter on this spiral paper tube winder machine?
A4: Yes. Users can swap different forming moulds and set parameters via the color touch‑screen HMI. Production range covers inner diameter from 30 mm‑250 mm and wall thickness 1‑15 mm.
Q5: How about the noise level during continuous running?
A5: Under full‑speed continuous production, machine noise stays below 65 decibels, meeting normal factory environmental requirements.
Q6: Does this machine support double‑sided glue application?
A6: Both single‑sided gluing and double‑sided gluing modes are supported and selectable on control panel.
Notes: All technical parameters are subject to actual machine acceptance test. Customized modifications are available for special production requirements. |
