Wprowadzenie

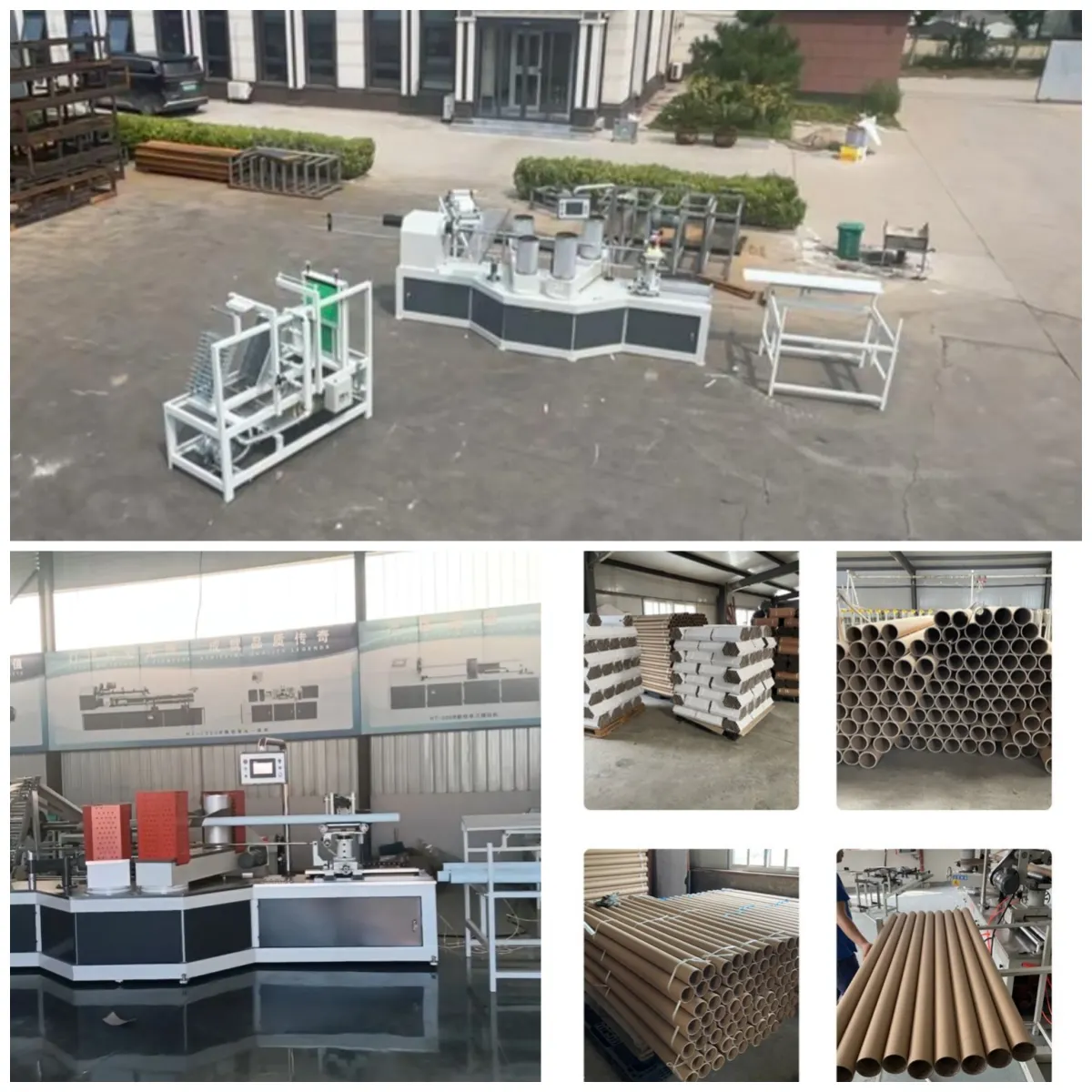

The automatic spiral paper core making machine (spiral paper core making machine) is specialized equipment that processes papier kartonowy typu kraft into high-strength spiral paper cores.
The NRC200 model, developed by NRC MACHINE, stands out for its full automation, precise servo & CNC control, and wide size adaptability—ideal for industrial paper core production.
NRC200 Spiral Paper Core Making Machine: Key Specifications
Basic Parameters
| Parametr | Wartość |
| Model | NRC200 |
| FOB price | Around 16,900 dollars |
| Inner diameter of paper core | 30-200 mm |
| Wall thickness of paper tube | 1-15 mm |
| Finished tube length | 500–5000 mm |
| Paper layers | 3–21 floors |
| Tube speed | 3–30 m/min |
| Moc wejściowa | 380V Three-Phase Four-Wire (customizable) |
| Main unit power | 11 KW |
| Masa całkowita | 3200 kg |
| Main unit dimensions (L×W×H) | 4500 mm × 1800 mm × 1750 mm |
| Floor area (L×W) | 18 m × 8 m |
System kontroli
| Komponent | Szczegóły |
| Kontroler | PLC (programmable logic controller) |
| Human-computer interface | Color touchscreen |
| Przetwornica częstotliwości | Shenzhen Yiqu |
| Actuating devices | Chint Group (China) |
| Składniki sygnału | Omron (photoelectric switches, etc.) |
| Elementy pneumatyczne | Hengyi |
| Synchronization control | Śruba serwomechanizmu osi X |
Core Components & Included Accessories

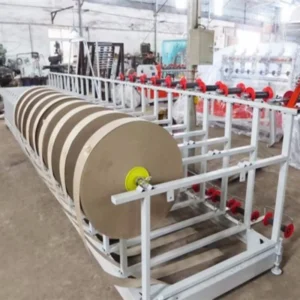

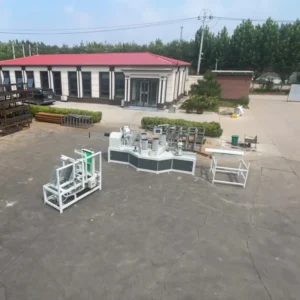

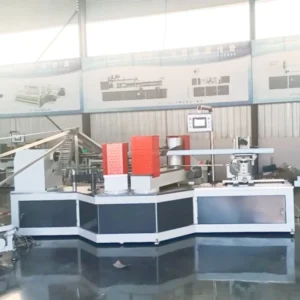

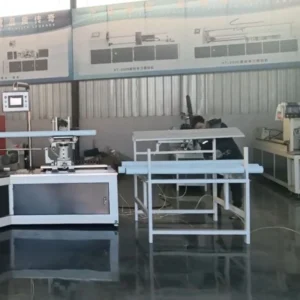

- Main structure: Paper rolls rack, recycling glue equipment, main machine body, bottom paper layer rack, finished paper core rack, dust removal system.
- Core parts: Servo motor, CNC controller, PLC touchscreen.
- Accessories: 1 mandrel, automatic pipe drop rack, automatic glue supply (pneumatic diaphragm pump), automatic paper tape lubrication, etc.
FAQs About Spiral Paper Core Making Machine
Q1: What materials can the NRC200 process?
A: It mainly processes papier kartonowy typu kraft and other recyclable paper materials, producing sturdy spiral paper cores suitable for textiles, packaging, and industrial film rolls.
Q2: What is the production efficiency of the NRC200?
A: The tube speed ranges from 3 to 30 m/min. For example, producing 1000 mm-long cores at 15 m/min yields ~900 cores per hour (varies by size and thickness).
Q3: Is the machine easy to operate?
A: Yes. It features a PLC touch screen for one-click operation. Only 1–2 operators are needed for normal production; basic training is sufficient.
P4: Jakie wsparcie posprzedażowe zapewnia NRC MACHINE?
A: We offer 1 rok gwarancji, 24/7 online technical support, on-site installation & training, and spare parts supply. The machine has CE/ISO/SGS certifications.
Q5: Can the machine produce custom-sized paper cores?
A: Absolutely. The NRC200 supports custom inner diameter (30–200 mm), wall thickness (1–15 mm), and length (500–5000 mm). We provide personalized mandrels and molds.
Manufacturer & Contact
- Producent: NRC MACHINE (Qingdao New Richuan Precision Machine Co., Ltd)
- Numer kontaktowy: +86 15254213289 (WhatsApp/WeChat)
- E-mail: james@nrcmachine.com
- Strona internetowa: https://nrcmachine.com
