Durable Paper Tube Machine for Long‑term Use｜Model NRC350
1. Product Overview
1.1 Machine Introduction

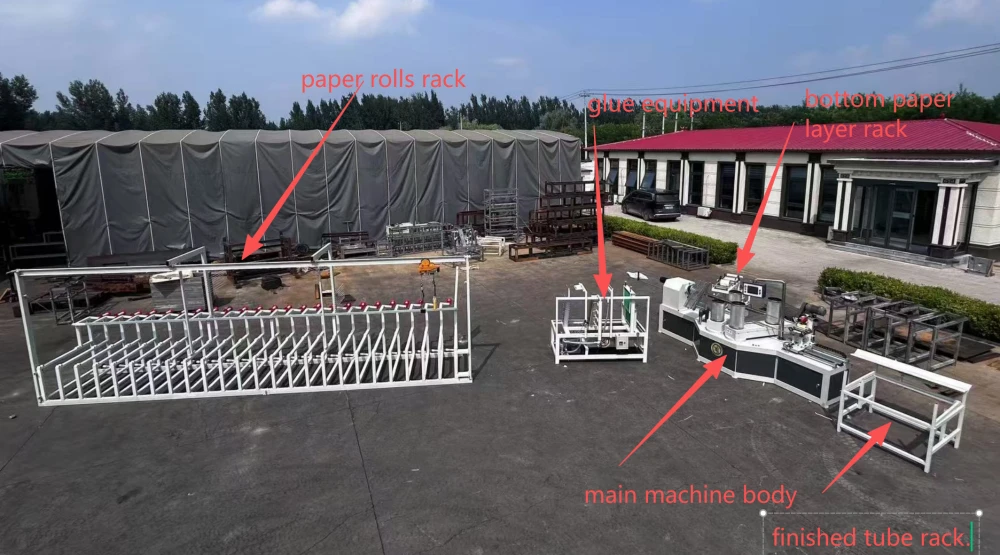

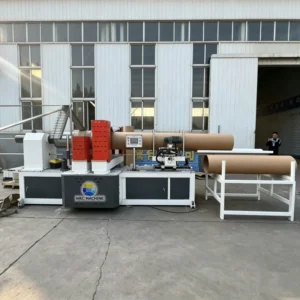

NRC350 durable paper tube machine (spiral paper core machine) is a full‑set spiral winding production line dedicated to manufacturing spiral paper tubes from raw cardboard paper rolls. Also known as spiral paper core machine, this paper tube machine is a complete set of industrial equipment to convert cardboard paper rolls into finished spiral paper tube for daily and industrial usage.
The paper tube machine features simplified, compact and stable mechanical architecture for continuous heavy‑duty production.
Adopting simplified‑compact‑stable design philosophy, this spiral paper tube making machine supports single‑sided / double‑sided gluing, servo synchronous tracking cutting and automatic paper‑tape lubrication supply. It fits mass‑production needs for adhesive tape cores, DTY & POY textile paper cores and general‑purpose packing paper tubes.
1.2 Main Application Scenarios
- Transparent adhesive tape paper cores
- DTY & POY textile industry paper tubes
- General industrial packing paper tubes
- Multi‑layer spiral cardboard core tubes for various converting industries
2. Full Technical Specifications
2.1 Main Machine Parameters
| Item | Specification |
| Model | NRC350 |
| Quantity of paper layers | 26 layers |
| Core inner diameter | 50mm‑350mm |
| Core wall thickness | 1 mm‑18mm |
| Winding head | Four heads double belts |
| Cutting method | Round knife cutting |
| Glue adding method | Single‑sided / double‑sided gluing |
| Length‑control‑method | Encoder pulse fixed length |
| Synchronous control | Servo motor synchronous tracking cutting |
| Belt diagonal adjustment | Electric |
| Host swing angle | Electric |
| Paper tape automatically supplied with lubrication | Automatic |
| Total Installed Power | 15 KW |
| Controller | PLC CNC controller |
| Human‑computer‑interface | Color touch screen |
| Input Power | 380V three‑phase four‑wire; other voltage customizable |
| Required operators | 1‑2 workers |
| Core winding speed | 3‑30m/min |
| Overall dimension | 4800mm×2000mm×1950mm |
| Total Weight | 5000kg |
2.2 Control System Configuration
| Component | Brand & Version |
| PLC controller | Delta brand |
| Man‑machine interface | Color touch screen |
| Program version | HT/4.0 |
| Inverter | China Taiwan Delta |
| Executive devices (contactors etc.) | China Chint Products |
| Signal components (photoelectric switches etc.) | Omron products |
| Pneumatic components | Hengyi Product |
| Angle adjustment motor | Cazenove |
| Synchronous control | X‑axis servo screw |
| Synchronous tracking pipe cutting system | Servo synchronous tracking cutting |
2.3 Standard Equipment Device List
- ✅ Automatic drop pipe rack
- ✅ Electric belt diagonal adjustment
- ✅ Mechanical belt tension adjustment
- ⚙️ Host swing angle: Optional
- ✅ Automatic glue supply via pneumatic diaphragm pump
- ✅ Automatic paper‑tape lubrication oil supply
- ✅ Mechanical tension adjustment
- ✅ Integral paper holder
- ✅ Canvas coil belt
2.4 Standard Spare Parts Included
| Spare Part | Quantity |
| Coil core mandrel | 1 set |
| Coil belt | 1 set |
| Application Tools | Included |
3. Key Competitive Advantages
- Stable long‑term running performance: Compact‑stable mechanical frame, branded global components (Delta, Omron, Chint) reduce failure rate for long‑shift industrial production.
- High‑precision servo control: Encoder fixed‑length + servo synchronous tracking cutting ensures stable tube length accuracy.
- High‑level automation: Automatic glue feeding, automatic paper‑tape lubrication, auto‑drop‑pipe rack lower manual operation workload.
- Wide‑range parameter adjustability: Flexible adjustment for diameter, wall thickness, winding speed and gluing mode to satisfy multiple‑category paper‑core production.
4. Manufacturer & Contact Information
4.1 Manufacturer Background
Manufacturer: NRC MACHINE (Qingdao New Richuan Precision Machine Co.,Ltd)
The factory has over 18‑year experience in paper‑processing machinery export, with CE certifications, exporting machinery to more than 80 countries globally.
4.2 Contact Details
- WhatsApp / Phone: +86 15254213289
- Email: james@nrcmachine.com
- Official website: https://nrcmachine.com
5. Frequently Asked Questions (FAQs)
Q1: What finished products can the NRC350 paper tube machine produce?

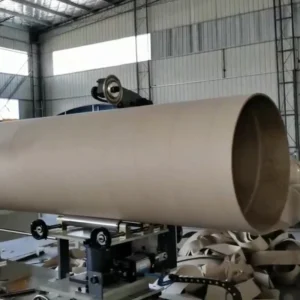

A: This spiral paper core machine manufactures multi‑layer spiral paper tubes, covering transparent tape cores, DTY / POY textile paper cores and general‑purpose packing paper tubes. Inner diameter ranges 50‑350 mm and wall thickness 1‑18 mm for different industrial requirements.
Q2: How many workers are required to run this paper tube machine?
A: Only 1‑2 skilled operators are needed for normal continuous production. Most procedures including gluing, lubrication, length calculation and cutting are automated under PLC‑touch‑screen control.
Q3: Can I customize input voltage for local factory power grid?
A: Yes. Standard power is 380V three‑phase four‑wire. Custom‑voltage configuration is available according to clients’ local power conditions.
Q4: What spare parts are delivered together with the machine?
A: Standard delivery includes one set of coil core mandrel, one set of coil belt and full set of application tools. Wear‑consuming spare parts can also be supplied separately from NRC MACHINE.
Q5: What after‑sales support can I get from NRC MACHINE?
A: NRC MACHINE provides technical documentation, operation training guidance, remote online troubleshooting, and spare‑part supply service. Clients can reach the sales engineer via WhatsApp or email for technical consultation.
Q6: What is the winding speed range of NRC350 model?
A: Winding speed ranges from 3 m/min to 30 m/min, adjustable through touch‑screen according to paper material and target tube quality requirements.
Q7: Is double‑sided gluing supported on this spiral paper core machine?
A: Yes. Both single‑sided and double‑sided gluing modes are selectable for different paper‑layer bonding strength requirements.
