Introduction to Machine Manufacturing Toilet Paper
Machine manufacturing toilet paper refers to specialized equipment designed to convert jumbo roll (large raw paper roll) into consumer-ready finished toilet paper rolls. As a core piece of equipment in the tissue processing industry, machine manufacturing toilet paper integrates rewinding, embossing, perforating, cutting, and packaging functions to meet the mass production demands of toilet paper. For tissue production businesses, choosing reliable machine manufacturing toilet paper directly affects production efficiency, product quality, and market competitiveness.
NRC MACHINE (Qingdao New Richuan Precision Machine Co., Ltd.), a professional manufacturer with over 18 years of machinery export experience, provides high-quality machine manufacturing toilet paper solutions, including semi-automatic and full-automatic models, to clients in more than 80 countries worldwide.
Types of Machine Manufacturing Toilet Paper
Machine manufacturing toilet paper is mainly divided into two categories based on automation level: semi-automatic machine manufacturing toilet paper and full-automatic machine manufacturing toilet paper. Both models support full embossing to enhance the softness and aesthetics of toilet paper, catering to different production scale and budget requirements.
2.1 Semi-Automatic Machine Manufacturing Toilet Paper
The semi-automatic machine manufacturing toilet paper requires partial manual intervention in raw material feeding and finished product collection, with a lower cost and simple operation. It is ideal for small-scale tissue production startups or businesses with limited budgets.
- Key Feature: Full embossing function; compact structure; easy maintenance.
- FOB Price: USD 12,900
2.2 Full Automatic Machine Manufacturing Toilet Paper
The full-automatic machine manufacturing toilet paper realizes unmanned operation throughout the process from jumbo roll loading to finished product packaging, with high production speed, stable quality, and labor cost savings. It is suitable for medium and large-scale tissue production enterprises pursuing high efficiency.
- Key Feature: Full embossing; integrated rewinding, cutting, and packaging; PLC automatic control.
- FOB Price: USD 25,900
Core Components of Full Automatic Machine Manufacturing Toilet Paper
The full-automatic machine manufacturing toilet paper consists of three core modules, which work together to complete the conversion of jumbo rolls to finished toilet paper.

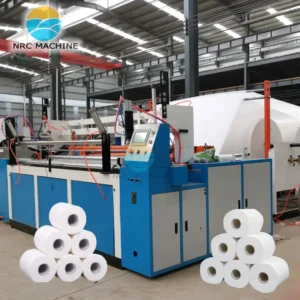

3.1 Toilet Paper Rewinder Machine
The rewinder is the core part of machine manufacturing toilet paper, responsible for rewinding jumbo rolls into small rolls of specified specifications, with spiral perforating knives for easy tearing and full embossing for softness.

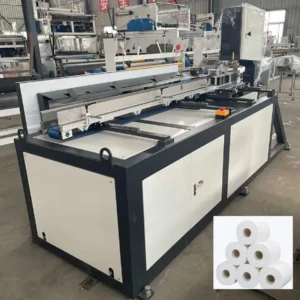

3.2 Automatic Band Saw Cutter Machine
This component cuts the rewound small paper rolls into fixed-length toilet paper rolls with high precision and smooth cuts, reducing material waste.

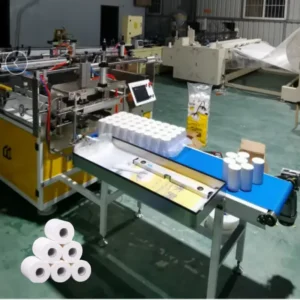

3.3 Automatic Multi Rolls Packaging Machine
The packaging machine automatically packs cut toilet paper rolls into bags or boxes, realizing sealed packaging to ensure product hygiene and facilitate transportation and sales.
Technical Parameters of NRC2200 Machine Manufacturing Toilet Paper
The NRC2200 model is a classic full-automatic machine manufacturing toilet paper launched by NRC MACHINE, with stable performance and customizable parameters, as detailed in the table below:
| Parameter | Specification |
| Model | NRC2200 |
| Applicable Raw Paper | 2-3 plies, 14~23g/㎡ |
| Finished Product | Toilet rolls with core / without core |
| Raw Paper Width | Max 2000mm |
| Raw Paper Diameter | Max 1300mm |
| Finished Roll Size | Φ60~120 mm |
| Finished Core Diameter | Φ35mm-Φ50mm |
| Raw Paper Core Diameter | 3”(76.2 mm) |
| Perforation | Spiral perforating knife, chain wheel positioning |
| Production Speed | 200 m/min |
| Power | 12kw |
| Control System | LCD Touch Screen + PLC |
| Paper Feeding | 3 Unwinding stands, pneumatic control |
| Air Pressure | 0.5 Mps |
| Voltage | 380V, 50hz or customized (e.g., UK standard electricity) |
FAQs About Machine Manufacturing Toilet Paper
Q1: What raw materials can the machine manufacturing toilet paper process?
A: It is compatible with 2-3 plies of raw paper with a basis weight of 14~23g/㎡, including virgin wood pulp, bamboo pulp, and recycled pulp jumbo rolls.
Q2: Can the machine produce toilet rolls without a core?
A: Yes. The NRC2200 machine manufacturing toilet paper supports the production of both core and coreless toilet rolls, with adjustable finished core diameter (Φ35mm-Φ50mm).
Q3: Is the machine voltage customizable for different countries?
A: Absolutely. The default voltage is 380V/50Hz, and we can customize the voltage (e.g., UK standard, 220V/60Hz) according to the client’s local power grid.
Q4: What certifications does the machine manufacturing toilet paper have?
A: All machines from NRC MACHINE are certified with CE, ISO, and SGS, complying with international quality and safety standards.
Q5: What after-sales support is provided for the machine?
A: We offer a 12-month warranty, on-site installation and training, 24/7 online technical support, and spare parts supply to ensure stable operation of the machine.
Why Choose NRC MACHINE for Your Machine Manufacturing Toilet Paper Needs
NRC MACHINE (Qingdao New Richuan Precision Machine Co., Ltd.) is a professional manufacturer of paper processing machinery, founded in 2005, with a factory located in Qingdao, Shandong Province, China.
- Professional Expertise: 18+ years of focus on paper tube machines and tissue processing machinery, with in-depth experience in machine manufacturing toilet paper R&D and production.
- Quality Assurance: Strict quality control system, CE/ISO/SGS certifications, and durable machine materials to ensure long-term stable operation.
- Global Service: Exported to 80+ countries, with an efficient sales team and professional after-sales service to solve clients’ problems in a timely manner.
- Customization: Provide personalized machine manufacturing toilet paper solutions according to clients’ production scale, budget, and product requirements.
Conclusion
Machine manufacturing toilet paper is an essential investment for tissue production businesses, and choosing the right model and reliable manufacturer is crucial for business success. NRC MACHINE’s semi-automatic and full-automatic machine manufacturing toilet paper solutions combine advanced technology, stable performance, and competitive prices, meeting the diverse needs of global clients.
