NRC1880 Toilet Tissue Machine Production Line | Convert Parent Tissue to Small Toilet Paper Rolls
1.What Is NRC1880 Toilet Tissue Machine?

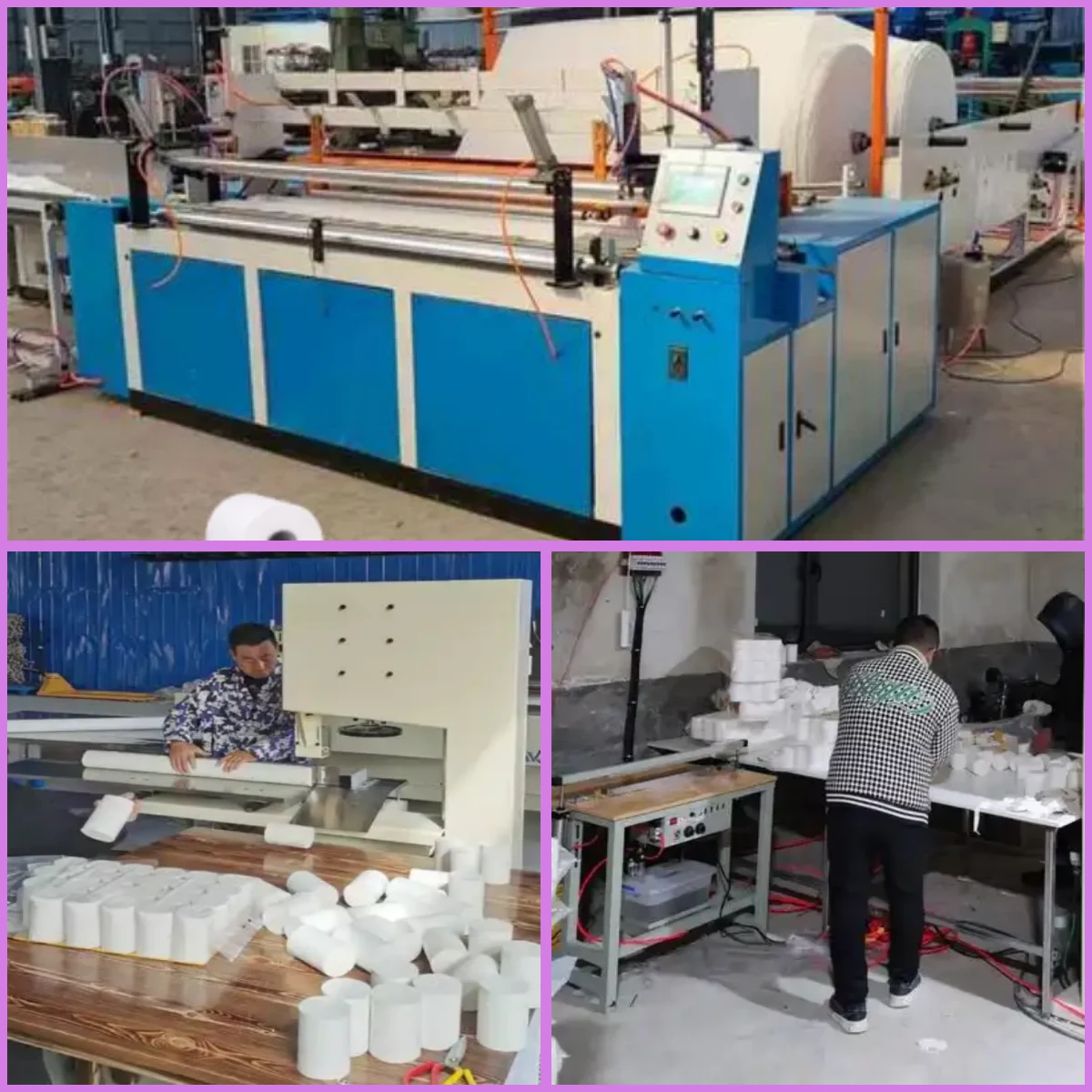

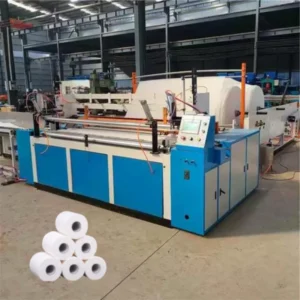

The NRC1880 toilet tissue machine is a complete integrated production line specially designed to convert large parent tissue paper rolls into finished small toilet paper rolls, which is the core toilet tissue machine solution for small and medium tissue processing factories. This full set toilet tissue machine assembly consists of three core supporting units: full embossing toilet paper rewinder machine, manual band saw cutter machine, and manual sealing machine, all controlled by a stable CNC controller.
This toilet tissue machine abandons outdated single-function rewinding equipment and integrates feeding, embossing, perforating, rewinding, trimming, gluing and tail sealing in one continuous workflow, effectively cutting manual operation links and improving finished toilet roll consistency.
As a multi-functional toilet tissue machine, it supports both cored and coreless toilet roll production. It could adapt to diverse market demands of household and commercial toilet tissue products.
2.Core Technical Advantages of NRC1880 Toilet Tissue Machine
2.1 Advanced PLC Intelligent Control System
This toilet tissue machine adopts international new-type PLC computer programming technology, matched with frequency conversion speed regulation and automatic electronic brake system. It is equipped with touch screen human-machine interactive operating interface and coreless rewinding forming system.
- PLC realizes automatic rewinding, automatic finished log output and instant reset rewinding; edge trimming, glue spraying and tail sealing are finished synchronously in one pass. It replaces traditional water line trimming and adopts innovative trimming & tail sticking technology, leaving a 10mm–20mm paper tail on finished rolls for easy opening and zero paper tail waste to lower raw material costs.
- PLC adjustable tightness control for rewinding: the machine winds tight first then loose, completely solving the problem of paper core separation caused by long-term storage of finished toilet rolls.
2.2 Automatic Pneumatic Paper Loading & Modular Frame Design
- Pneumatic cylinder automatic paper loading structure; the paper unwinding stand can be separated from the main machine head independently for convenient transportation, maintenance and raw paper replacement.
- One-step automatic production flow: auto paper feeding → embossing → dotted line perforation → rewinding into long tissue logs → edge trimming → glue spraying → tail sealing.
- Freely adjustable finished roll specifications: users can modify paper roll size, softness and paper tube matching parameters via touch screen according to market requirements.
2.3 Heavy-Duty Solid Metal Structure for Ultra-High Stability
Each load-bearing component of this toilet tissue machine uses high-strength industrial metal materials to guarantee long-term stable high-speed operation without vibration:
- Main frame: channel steel
- Machine head: square steel
- Paper threading shaft: seamless steel pipe
- Bearing base and fixing frame beside perforating cutter: solid cast iron
- Built-in automatic paper tube dropping function to reduce manual tube placement labor
3.Complete Technical Parameter Table of NRC1880 Toilet Tissue Machine
| Parameter Item | Specific Data | Supplementary Instruction |
| Machine Model | NRC1880 | Core toilet tissue machine model |
| Max Parent Paper Width | ≤2200mm | Adapt to most standard jumbo tissue rolls |
| Max Parent Paper Diameter | ≤1200mm | Paper tightness adjustable via PLC |
| Paper Unwinding Stand | 1 layer / 2 layers | Configurable according to customer production capacity |
| Pneumatic System Matching | 3HP air compressor, min air pressure 5kg/cm²Pa | Air compressor provided by buyer |
| Driving Power | 4.0KW – 7.5KW frequency conversion motor | Stepless speed regulation |
| Production Running Speed | 150~280 M/Min | High-efficiency continuous production |
| Overall Dimension | L6000 × W3650 × H1750 (mm) | Size changes slightly based on unwinding stand layers |
| Total Machine Weight | 2800KG | Heavy solid frame for stable operation |
4. Complete Production Workflow Supported by NRC1880 Toilet Tissue Machine
- Install parent jumbo tissue rolls on the detachable unwinding stand, start pneumatic auto paper loading
- Paper passes through full embossing unit to increase tissue softness and layering sense
- Perforating device cuts uniform dotted lines for easy tearing of finished toilet rolls
- PLC-controlled coreless/cored rewinding forms long tissue logs with adjustable tightness
- Synchronous edge trimming, glue spraying and tail sealing form complete large tissue logs

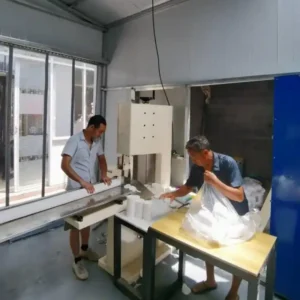

- Manual band saw cutter machine cuts long logs into standard small toilet paper rolls

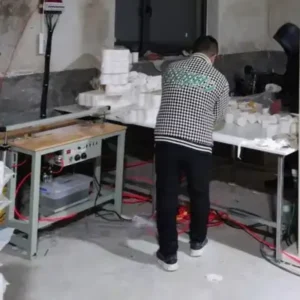

- Manual sealing machine completes finished roll packaging auxiliary sealing
5.Manufacturer Profile – NRC MACHINE (Qingdao New Richuan Precision Machine Co.,Ltd)
Founded in 2005, NRC MACHINE owns over 18 years of tissue processing machinery export experience, with products exported to more than 80 countries and cooperating with over 700 tissue factories globally. Our factory is located in Fangzi District, Weifang City, Shandong Province, 120km away from Qingdao Airport with convenient sea and air logistics.
We specialize in manufacturing full-series paper processing equipment: toilet tissue machine, paper tube making machine, A4 paper production line, facial tissue machine, bamboo pulp tissue machine and adhesive tape production lines. All equipment obtains CE, complying with international industrial safety standards. We provide professional sales consultation and full-cycle after-sales maintenance service for all toilet tissue machine orders.
6.FAQs About NRC1880 Toilet Tissue Machine
Q1: What raw materials can this toilet tissue machine process?
A: It supports virgin wood pulp parent tissue rolls, bamboo pulp jumbo rolls and recycled tissue jumbo rolls, widely applicable for household toilet rolls, hotel commercial toilet tissue and small retail toilet paper products.
Q2: How many workers are needed to operate the whole NRC1880 production line?
A: Only 1–2 operators are required. The toilet tissue machine realizes fully automatic rewinding, trimming and sealing; workers only need to load parent paper, collect long logs and operate the cutter & sealing machine.
Q3: Can I adjust finished toilet roll softness and tightness freely?
A: Yes. The touch screen HMI and PLC system support independent adjustment of rewinding tension, embossing depth and paper roll hardness to meet different regional market preferences.
Q4: What after-sales service does NRC MACHINE provide for this toilet tissue machine?
A: We supply one-year full machine warranty, free spare parts replacement for non-human damage during warranty period, remote video operation training and overseas engineer installation guidance upon request. We also provide long-term cost-price spare parts supply permanently.
Q5: Is air compressor included in the toilet tissue machine set?
A: No. The supporting 3HP air compressor needs to be prepared by the buyer separately, the machine only reserves matched pneumatic connection interfaces.
