Price of Fully Automatic Toilet Paper Making Machine for Peru Market | Complete Production Line
1. Product Overview
The toilet paper making machine, also named toilet roll machine, is a professional integrated processing equipment that converts parent tissue paper rolls into finished toilet paper toilet rolls for daily household use and supermarket retail. This fully automatic toilet paper making machine is specially optimized and configured for the Peru market, tailored to the operational needs and industrial standards of local small and medium-sized enterprise owners.
Manufactured by Qingdao New Richuan Precision Machine Co.,Ltd (NRC MACHINE), a professional Chinese precision machinery manufacturer with 18+ years of export experience, the toilet paper making machine integrates automatic paper tube loading, wool-to-steel full embossing, rewinding, cutting and automatic sealing packaging functions.
The whole production process is highly automated, requiring only one operator to manually sleeve plastic bags, and the equipment can automatically load multiple toilet paper rolls into bags and complete sealing, greatly saving labor costs for Peruvian production plants.

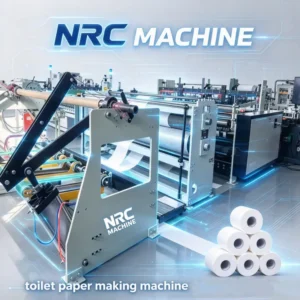

The complete production line consists of three core devices: toilet paper rewinding machine with wool to steel full embossing, high-speed fully automatic band saw cutting machine, and multi-roll automatic packaging machine. All devices are connected by stable conveyor belts to realize continuous assembly line production. The whole machine strictly follows Peru local industrial voltage standards to ensure stable and safe operation in Peruvian factory environments.
2. Core Product Parameters & Overall Performance
2.1 Overall Line Basic Parameters
| Item | Specification |
| Production Capacity | 20,000 rolls / 8 hours (single roll weight: 100g) |
| Required Workshop Area | Minimum 200 square meters |
| Required Labor | 1-2 workers |
| Applicable Raw Paper Width | Max 2000mm |
| Finished Product Type | Toilet rolls with core / coreless toilet rolls |
| Market Adaptation | Customized for Peru industrial voltage and SME production needs |
| FOB Price | USD 25,000 |

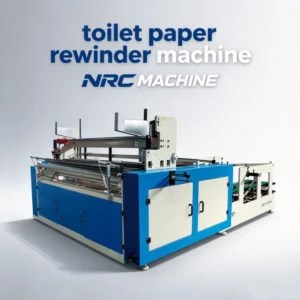

2.2 NRC1880 Toilet Paper Rewinder Machine Parameters
| Parameter Item | Detailed Specification |
| Model | NRC1880 |
| Applicable Raw Paper | 2-3 plies, 14~23g/㎡ |
| Raw Paper Maximum Width | 2000mm |
| Raw Paper Maximum Diameter | 1300mm |
| Finished Roll Outer Diameter | Φ60~120 mm |
| Finished Core Diameter | Φ35mm-Φ50mm |
| Raw Paper Core Diameter | 3” (76.2 mm) |
| Perforation Mode | Spiral perforating knife, chain wheel positioning |
| Production Speed | 200 m/min |
| Power | 12kw, 380V, 50hz |
| Control System | PLC + LCD touch screen |
| Paper Feeding System | 3 unwinding stands, pneumatic control |
| Working Air Pressure | 0.5 Mps |

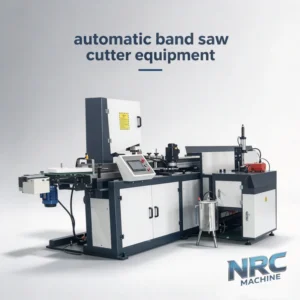

2.3 Automatic Band Saw Cutting Machine Parameters
| Parameter Item | Detailed Specification |
| Model | Automatic band saw cutting machine |
| Matching Power | 3KW |
| Applicable Materials | Embossed/non-embossed core and coreless toilet paper rolls |
| Processing Roll Size | Length: 50-230mm; Diameter: ≤120mm |
| Cutting Precision | ±0.5mm |
| Driving System | Double servo motor drive |
| Operation Mode | Touch screen intelligent operation |
| Blade Sharpening System | Automatic adjustable sharpening device |
| Round Blade Diameter | ￠610mm |
| Cutting Speed | 100—130 cuts per minute |
| Dust Removal Device | Fixed felts dust box |
| Packaging Standard | Export wooden box packaging |

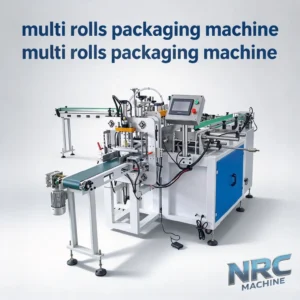

2.4 Automatic Multi-Roll Packing Machine Parameters
| Parameter Item | Detailed Specification |
| Model | Multi-roll automatic packing machine |
| Matching Power | 2kw, AC220V, 50HZ |
| Packing Capacity | 6-12 rolls per bag |
| Packing Size Range | L350-600mm * W120-230mm * H60-150mm |
| Applicable Roll Type | Flat roll / round roll toilet paper |
| Sealing Mode | Up-down sealing / left-right sealing (optional) |
| Control System | PLC control + servo drive + touch screen |
| Working Air Pressure | 0.5Mpa |
3. Core Working Principle
The full-automatic toilet paper production line realizes one-stop processing from raw paper to finished products through three linked core devices. Firstly, the toilet paper rewinding machine rewinds and embosses large parent tissue rolls into long semi-finished toilet paper rolls with uniform texture and clear patterns. Secondly, the high-precision band saw cutting machine cuts the long semi-finished rolls into standard-size single toilet rolls with accurate dimensions. Finally, the multi-roll packaging machine automatically sorts, bags and seals the finished rolls to complete the final packaging for supermarket sales and daily retail.
4. Manufacturer & Brand Strength
This toilet paper making machine is independently developed and manufactured by Qingdao New Richuan Precision Machine Co.,Ltd (NRC MACHINE), a professional precision machinery manufacturer founded in 2005. The company has 18+ years of machinery export experience, serving more than 80 countries and 700+ cooperative enterprises worldwide.
All production equipment has obtained CE, ISO and SGS international certification, with standardized production processes and stable product quality. The company has professional sales and after-sales service teams to provide full-cycle technical support and after-sales guarantee for Peruvian customers, ensuring long-term stable operation of the equipment.
5. Frequently Asked Questions (FAQs)
Q1: Is the machine voltage adapted to Peru local industrial standards?
A1:Yes. We will customize the equipment voltage configuration strictly according to Peru local industrial voltage standards before delivery, ensuring no adaptation problems and stable operation in local factories.
Q2: What kind of enterprises is this production line suitable for in Peru?
A2:This fully automatic toilet paper production line is specially designed for Peruvian small and medium-sized entrepreneurs and small tissue processing factories. It covers a small area, requires few workers, has low operating costs and stable output, which is very suitable for startup and small-scale mass production.
Q3: Can the machine produce both core and coreless toilet rolls?
A3:Absolutely yes. The NRC1880 rewinding machine supports flexible switching between core and coreless toilet paper production, meeting diverse market sales needs in Peru.
Q4: What is the daily output of the complete production line?
A4:Under standard working conditions, the equipment can produce about 20,000 rolls of 100g toilet paper per 8-hour working day, with high continuous production efficiency.
Q5: Does the manufacturer provide after-sales service for Peruvian customers?
A5:Yes. NRC MACHINE provides professional overseas after-sales service, including equipment installation guidance, technical training, fault maintenance and long-term technical consultation, to solve all operation problems for Peruvian users.
6. Contact & Purchase Information
- Manufacturer: NRC MACHINE (Qingdao New Richuan Precision Machine Co.,Ltd)
- WhatsApp/Phone: +86 15254213289
- Email: james@nrcmachine.com
- Official Website: https://nrcmachine.com
- Quotation Standard: FOB USD 25,000
