Paper Product Making Machinery For Toilet Paper Rolls: Full Automatic Solutions
This is one set of paper product making machinery for toilet paper rolls.When it comes to producing high-quality toilet paper rolls efficiently, full-automatic machinery is the game-changer.
Let’s break down the key equipment—toilet paper rewinder, cutter, and multi-rolls packaging machine—into clear chapters to understand how they work together to streamline production.

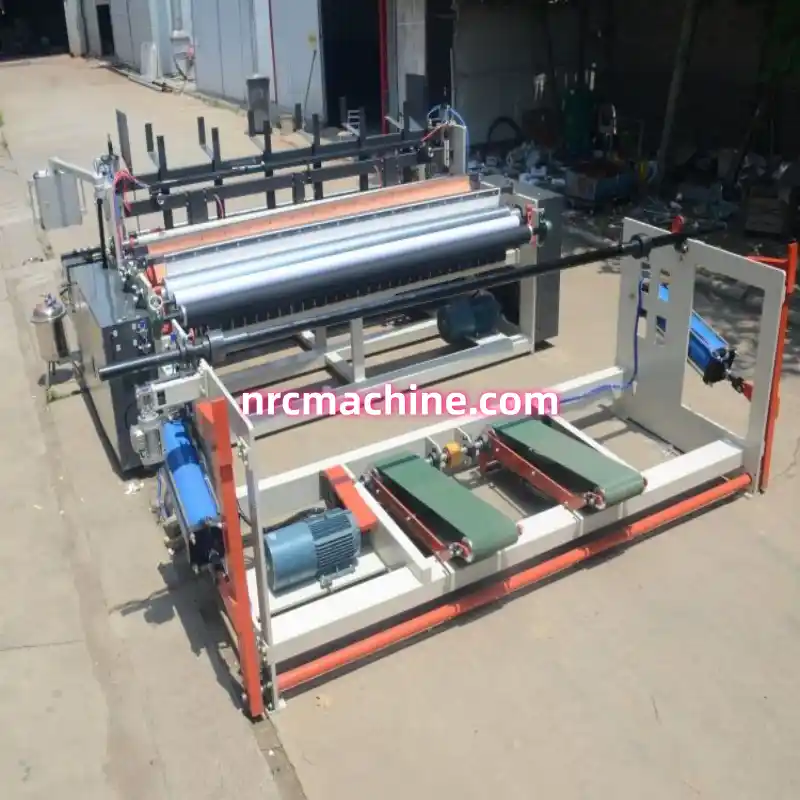

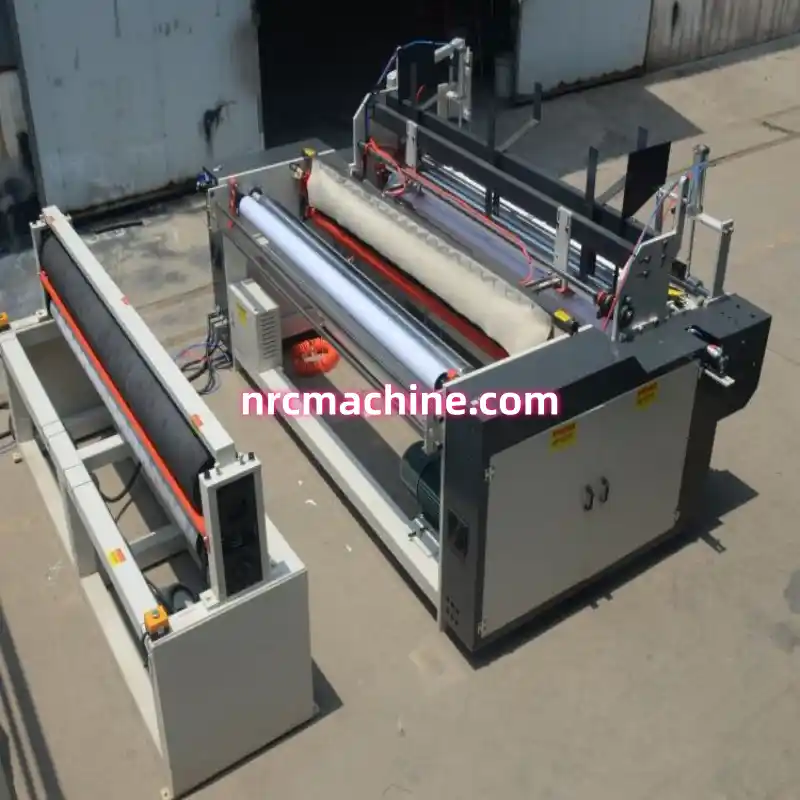

Toilet Paper Rewinder – The Core of Quality Rewinding
The rewinder is the starting point of the production line, responsible for converting large jumbo rolls into smaller, customer-ready core rolls.
Key Features:
- Automatically feeds jumbo paper rolls (width up to 5.6m) and rewinds them onto cardboard cores (diameter: 45-110mm).
- Precision tension control ensures even winding without wrinkles or paper breakage.
- Touchscreen interface allows easy adjustment of roll length (10-100cm) and core size.
Why It Matters:
A well-wound core roll is the foundation—this machine guarantees consistent diameter, tightness, and edge alignment, directly impacting product quality.
Machine Parameter
Model 1880mm ~2100mm Applicable Raw Paper 2-3 plies 14~23g/㎡Wood pulp paper Finshed product Toilet rolls with core /without core Raw Paper Width Max 2100mm Raw Paper Dia Max2100mm Finished Size Φ60~130 mm Finished Core Dia Φ35mm-Φ50mm Raw Paper Core Dia 3”(76.2 mm) Perforation Spiral perforating knife,Chain wheel positioning Production Speed 200 m/min Power 12kw Parameter Design LCDTouch Screen Control PLC Paper Feeding 3 Unwinding stands,controlled by pneumatic Air Pressure 0.5 Mps Power 380V,50hz
Toilet Paper Cutter – Precision Meets Speed
Once rewound, the continuous core rolls need to be cut into individual rolls of the desired length—this is where the cutter shines.
Key Features:
- High-speed rotary cutting system (up to 300 cuts/minute) with sharp, durable blades.
- Adjustable cutting length (tolerance ±0.5mm) for customization (e.g., 10cm for small rolls, 20cm for large rolls).
- Integrated conveyor belt smoothly transports cut rolls to the next stage, avoiding jams.
Why It Matters:
Precision cutting ensures uniform product size, reducing waste and meeting strict market standards—no more uneven rolls!

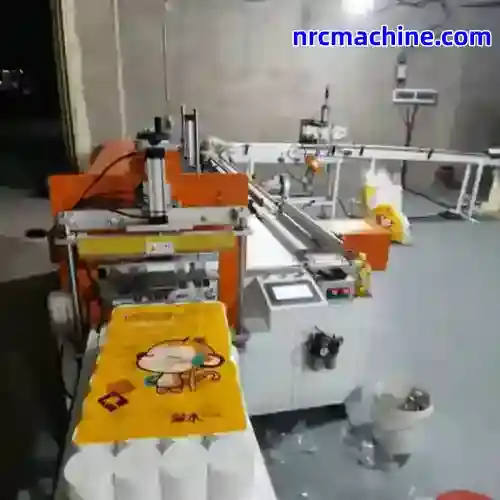

Multi-Rolls Packaging Machine – Smart, Efficient Bundling
The final step: packaging multiple rolls (e.g., 4, 6, or 12 rolls per pack) into shrink-wrapped bundles for retail.
Key Features:
- Fully automatic process: counting → grouping → wrapping → heat sealing (shrink film).
- Adjustable packaging format: supports different roll counts and pack sizes (e.g., 4-roll packs for homes, 12-roll packs for hotels).
- Fast packaging speed (up to 80 packs/minute), reducing manual labor and boosting output.
Why It Matters:
Efficient packaging not only saves costs but also enhances product appearance—neat, sealed bundles are more attractive to buyers and easier to transport.
Final Thoughts
Whether you’re a paper manufacturer expanding production or a startup entering the toilet paper market, this full-automatic toilet paper product making machinery set is a smart investment. It’s not just about making rolls—it’s about making better, faster, and more profitable products.
Interested in details? DM me for machine specs, pricing, or a virtual demo!
#PaperMachinery #ToiletPaperProduction #FactoryAutomation #BusinessInvestment #ManufacturingSolutions#ToiletPaperMachinery #ManufacturingTech #PaperIndustry
FAQs
1.What are the main components of full-automatic toilet paper product production machinery?
The main components include the toilet paper rewinder, cutter, and multi-rolls packaging machine, which work together to streamline the production process.
2.How does the toilet paper rewinder ensure product quality?
The rewinder automatically feeds jumbo rolls and rewinds them onto cores with precision tension control, ensuring consistent diameter, tightness, and edge alignment for high-quality output.
3.What are the key features of the toilet paper cutter?
The cutter features high-speed rotary cutting with sharp blades, adjustable length control with a tolerance of ±0.5mm, and an integrated conveyor belt to transport cut rolls efficiently.
4.Why is the multi-rolls packaging machine important in the production line?
It automates the bundling, wrapping, and sealing of multiple toilet rolls, increasing speed (up to 80 packs/minute), reducing labor costs, and enhancing product presentation.
5.Who can benefit from using full-automatic toilet paper manufacturing machinery?
Paper manufacturers expanding production and startups entering the market can benefit from this machinery, as it improves efficiency, product quality, and profitability.
