Full Automatic Toilet Roll Production Line | Toilet Roll Machine For Sale in Russia
A toilet roll machine, also named a toilet paper making machine, is a complete set of equipment that converts parent tissue paper rolls (jumbo rolls) into the soft toilet rolls used in homes and sold in supermarkets every day.
This Toilet Roll Machine For Sale is a fully automatic production line engineered and tuned for the Russian market, where demand for affordable, locally produced hygiene paper keeps growing.
It is the dependable starting point for any investor who wants to turn raw tissue rolls into finished, sellable toilet paper at scale.
1. What This Production Line Does
The line performs the whole conversion process in one continuous flow: automatic paper tube feeding, embossing, rewinding, log cutting and packaging. Operators only need to fit a plastic bag onto the packing station; the machine then automatically loads several finished toilet rolls into the bag and seals it, so the output is ready for retail straight off the line.

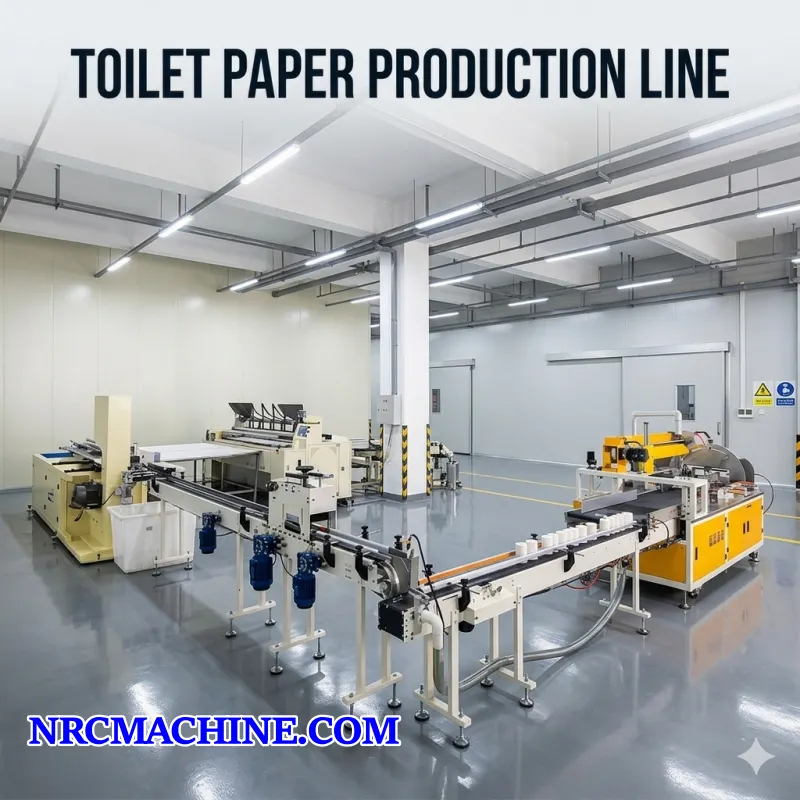

1.1 Three Machines Linked by Conveyors
- Toilet paper rewinding machine — equipped with wool-to-steel full embossing, it converts the jumbo tissue roll into small long rolls.
- Automatic high-speed band saw cutting machine — cuts the small long rolls into individual pieces with clean precision.
- Multi-roll packing machine — automatically puts 6 to 12 toilet rolls into a single plastic bag.
The three units are joined by transport belts, so the tissue moves automatically from rewinding to cutting to packing without manual handling between stations.
2.Line Highlights & Operating Requirements
2.1 Full Automatic Toilet Paper Production Line — Overview
| Line configuration | Rewinding machine + automatic log-saw cutting machine + automatic packing machine, linked by conveyors |
| Function | Converts big (jumbo) tissue rolls into small toilet rolls ready for sale |
| Floor space required | At least 200 square meters |
| Labour | 1-2 operators |
| Roll types | Produces toilet rolls with core and without core |
| Max parent roll width | 2000 mm (buy jumbo rolls with diameter <= 2000 mm) |
| Output | About 20,000 rolls in 8 hours (based on 100 g per roll) |
| Single-roll packing | Optional single-roll packing machine wraps each roll with plastic film |
| Multi-roll packing | Puts 6-12 toilet rolls into one plastic bag automatically |
3.Detailed Technical Parameters
3.1 2000 mm Toilet Paper Rewinding Machine
| Model | NRC1880 |
| Applicable raw paper | 2-3 plies, 14-23 g/m2 |
| Finished product | Toilet rolls with core / without core |
| Raw paper width | Max 2000 mm |
| Raw paper diameter | Max 1300 mm |
| Finished size | Diameter 60-120 mm |
| Finished core diameter | Diameter 35-50 mm |
| Raw paper core diameter | 3 inch (76.2 mm) |
| Perforation | Spiral perforating knife, chain-wheel positioning |
| Production speed | 200 m/min |
| Power | 12 kW |
| Control | PLC |
| Parameter design | LCD touch screen |
| Paper feeding | 3 unwinding stands, controlled by pneumatic |
| Air pressure | 0.5 MPa |
| Voltage | 380V, 50Hz |

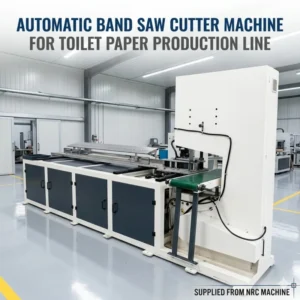

3.2 Automatic Band Saw Cutting Machine
| Model | Automatic band saw cutting machine |
| Power | 3 kW |
| Raw material | Facial tissue; core or coreless tissue paper roller without embossing |
| Roll length | 50-230 mm |
| Roll diameter | 120 mm |
| Cutting precision | +/-0.5 mm |
| Control system | PLC, double servo motor drive, touch screen operation |
| Sharpening system | Automatic and adjustable |
| Round blade diameter | Diameter 610 mm |
| Up & down movement | Hand wheel to adjust |
| Air pressure | 0.5 MPa |
| Dust remove device | Fixed felts dust box |
| Production speed | 100-130 cuts/min |
| Packaging | Wooden box |

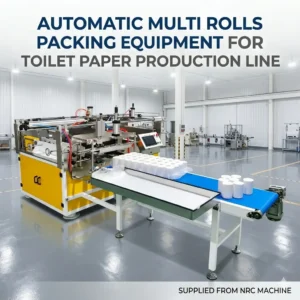

3.3 Automatic Packing Machine (6-12 Rolls Per Bag)
| Model | Multi-roll packing machine |
| Power | 2 kW |
| Packing sizes | L 350-600 mm x W 120-230 mm x H 60-150 mm |
| Packing type | Flat roll / round roll |
| Control system | PLC control, servo drive, touch screen |
| Sealing | Up-and-down sealing / left-and-right sealing (optional) |
| Air pressure | 0.5 MPa |
| Voltage | AC 220V, 50Hz |
4.Who This Toilet Roll Machine Is For
This line is purpose-built for local small and medium business owners in Russia and other markets who want to start or upgrade a tissue converting plant with a small team and a modest workshop. Because the process is fully automatic and needs only 1-2 workers, it keeps labour costs low while still delivering supermarket-quality output. As a turnkey Toilet Roll Machine For Sale solution, it bundles the rewinder, the band saw cutter and the packing machine into one matched production line, so buyers receive a coordinated system rather than mismatched standalone units.
5.Why Choose NRC MACHINE
Qingdao New Richuan Precision Machine Co., Ltd (NRC MACHINE) is a Chinese precision-machinery manufacturer specialising in paper converting equipment. Choosing an experienced, certified maker matters when you invest in capital machinery, because spare parts, commissioning and after-sale support decide whether the line runs profitably for years.
- Founded in 2005, with more than 18 years of machinery export experience.
- Products shipped to 80+ countries and trusted by 700+ cooperative companies.
- Machines carry CE certificates; the company holds ISO and SGS certification.
- Located in a strategic port region of Shandong, enabling efficient global logistics.
- Professional sales and after-sale service, with a response to enquiries within 6 hours.
6.FAQs
Q1: What does this toilet roll machine actually produce?
A1: It converts parent (jumbo) tissue paper rolls into finished small toilet rolls, with or without a core, ready to sell in shops or homes.
Q2: How many machines are included in the production line?
A2: Three: the toilet paper rewinding machine, the automatic band saw cutting machine and the multi-roll packing machine, connected by conveyors.
Q3: How much floor space and how many workers are required?
A3: At least 200 square metres of floor space and only 1-2 operators, because the whole line is fully automatic.
Q4: What is the production capacity?
A4: About 20,000 toilet rolls in 8 hours, calculated on a roll weight of 100 g.
Q5: What size of parent roll can the rewinder accept?
A5: The maximum parent roll width is 2000 mm and the maximum diameter is 1300 mm, so you can buy jumbo rolls up to 2000 mm in diameter.
Q6: Can the machine make rolls without a paper core?
A6: Yes. The NRC1880 rewinder produces both cored and coreless toilet rolls, and the band saw cutter handles core or coreless rollers alike.
7.Get a Quote For Your Production Line
Whether you are launching a new converting plant in Russia or upgrading an existing tissue workshop, this Toilet Roll Machine For Sale gives you an automatic, low-labour and space-efficient line backed by a certified manufacturer. Contact NRC MACHINE today for pricing, shipping options and commissioning support, and our team will reply within 6 hours.
